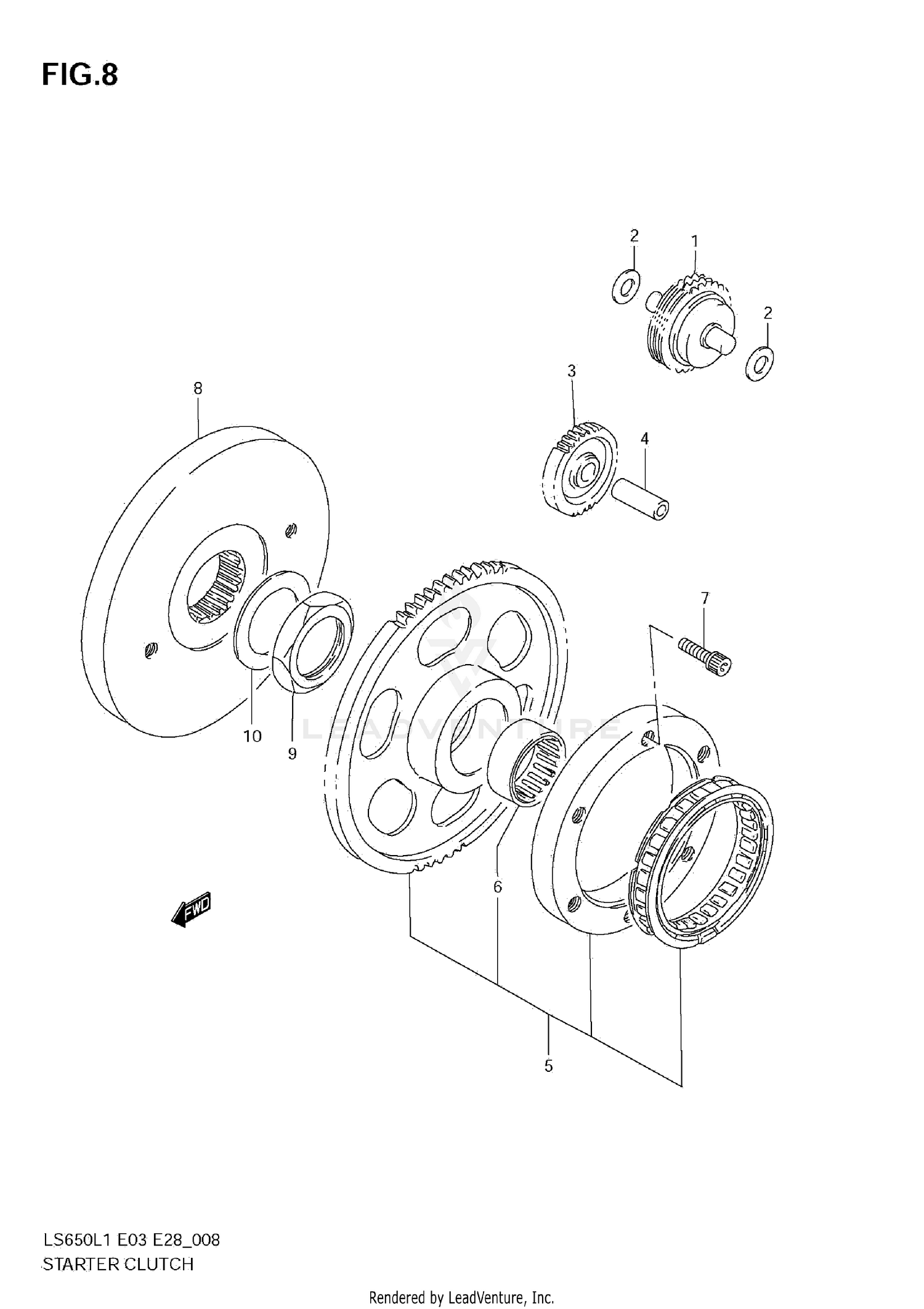

Starter Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LIMITER ASSY, STARTER IDLE GEAR
12600-24B11
|
$286.94 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHIM (10X18X1)
09181-10167
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, STARTER IDLE NO.2
12612-24B03
|
$69.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN (L:30)
09202-10011
|
$11.61 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLUTCH SET, STARTER
12600-24831
|
$390.00 | ||
|
Available to order. Add to View Price |
|||
|
#6
.BEARING (31X39X17.8)
09263-31009
|
$49.36 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT (8X16)
09106-08095
|
$2.83 | ||
|
Available to order. Add to View Price |
|||
|
#8
FLYWHEEL
12656-24B02
|
$198.92 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, FLYWHEEL
12664-24B01
|
$16.66 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER
09164-35002
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
