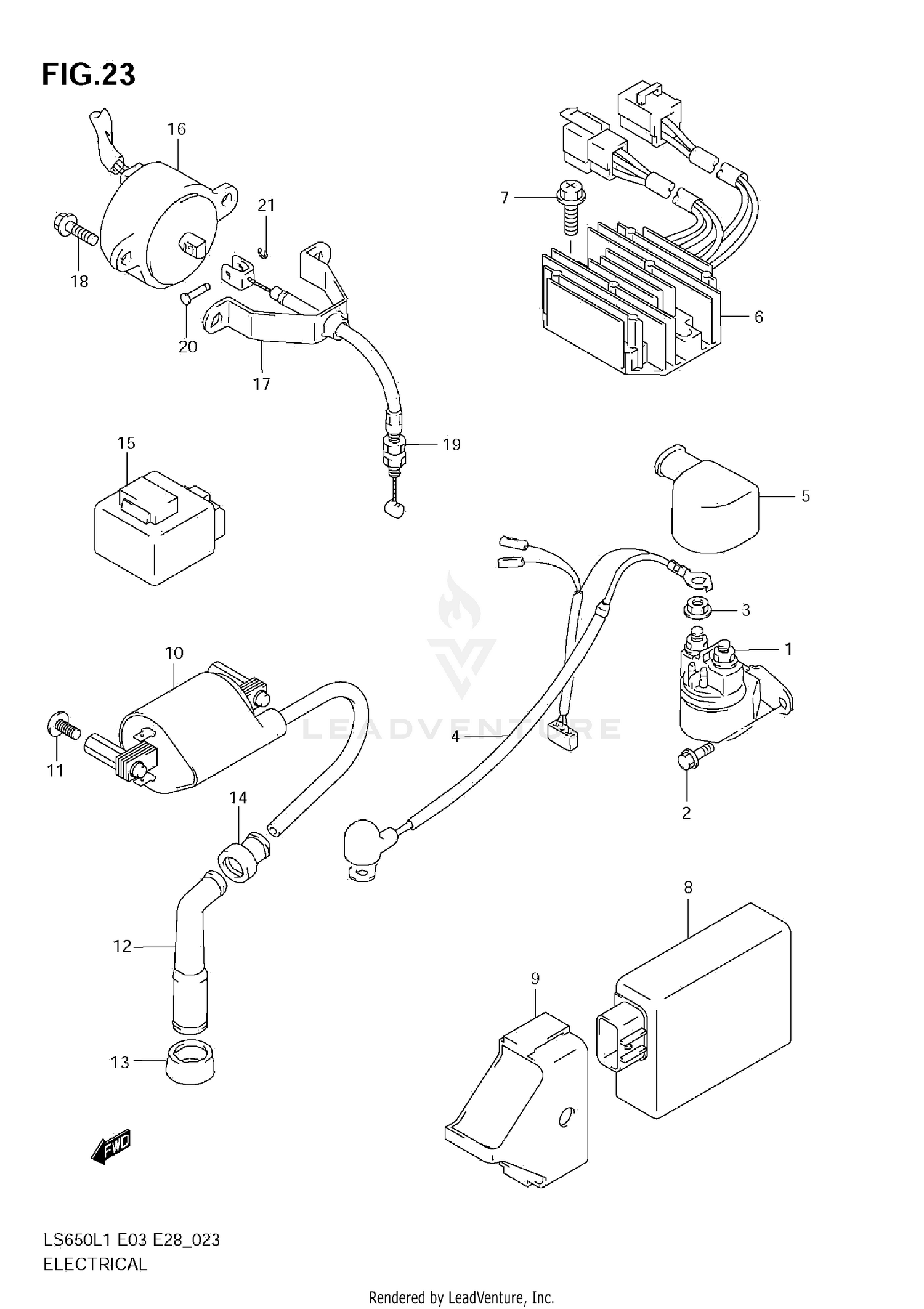

Electrical Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY ASSY, STARTING MOTOR
31800-49100
|
$125.02 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
01550-0610B
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
08361-3506A
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#4
WIRE, STARTING MOTOR
33850-24B10
|
$56.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, STARTER RELAY
33624-49401
|
$8.14 | ||
|
Available to order. Add to View Price |
|||
|
#6
RECTIFIER ASSY
32800-24B11
|
$319.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
02162-0620B
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
IGNITER ASSY
32900-24B30
|
$973.32 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION, IGNITER
32980-24B00
|
$13.11 | ||
|
Available to order. Add to View Price |
|||
|
#10
COIL ASSY, IGNITION
33410-24B00
|
$181.54 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
02142-0512B
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, SPARK PLUG
33510-45010
|
$33.18 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL,SPARK PLUG
33541-38210
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL,HIGH TENSION CORD
33542-38B00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
CONTROL UNIT, DECOMP
32910-24B10
|
$157.18 | ||
|
Available to order. Add to View Price |
|||
|
#16
SOLENOID ASSY, DECOMP
33970-24B00
|
$377.98 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET, DECOMP SOLENOID
33971-24B00
|
$13.40 | ||
|
Available to order. Add to View Price |
|||
|
#18
.BOLT
01550-0616B
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#19
CABLE ASSY, DECOMP
58900-24B01
|
$27.32 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN
09209-04020
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#21
E RING
08332-1103A
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
