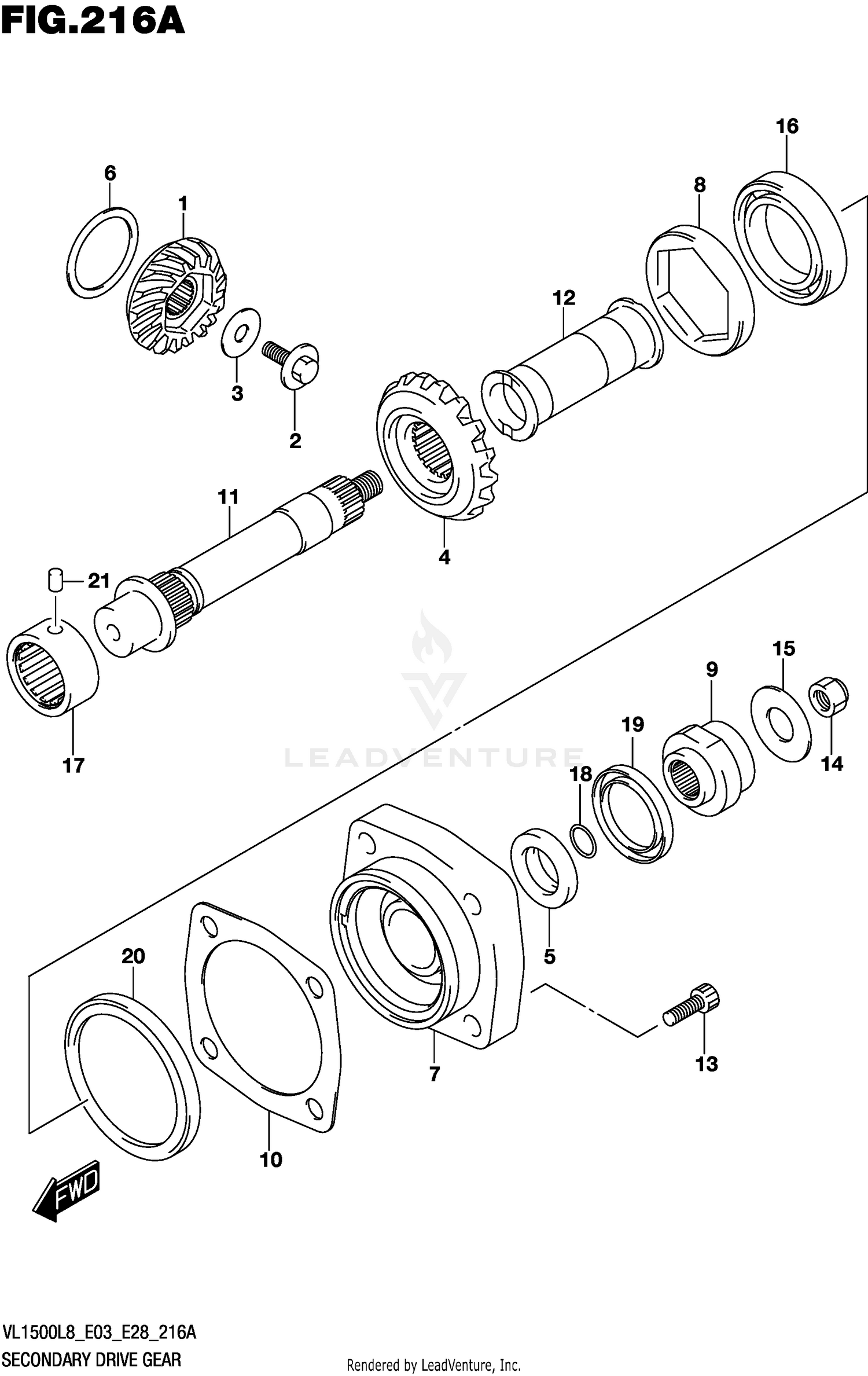

Secondary Drive Gear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR
24911-40H00
|
$339.30 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
24912-06J00
|
$35.74 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER
08211-12343
|
|||
|
Unavailable |
|||
|
#4
GEAR
24921-40H00
|
$280.08 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER, PRIMARY SHAFT
21102-31G00
|
$32.97 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM SET
24935-40820
|
$97.83 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM SET
24935-40820
|
$97.83 | ||
|
Unavailable |
|||
|
#7
HOUSING
24941-40H00
|
$134.19 | ||
|
Unavailable |
|||
|
#8
STOPPER,SEC DRIVEN BEARING
24942-26D00
|
$77.77 | ||
|
Available to order. Add to View Price |
|||
|
#9
COUPLING
24943-40H00
|
$81.42 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM SET
24945-40810
|
$46.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHAFT
24961-40H00
|
$130.84 | ||
|
Unavailable |
|||
|
#12
SPACER
24962-40H00
|
$84.31 | ||
|
Unavailable |
|||
|
#13
BOLT (10X30)
09106-10087
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
09159-16003
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER (16.5X36X4.0)
09160-16040
|
$12.32 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING (28X68X18)
09262-28014
|
$71.59 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING (32X50X22)
09263-32021
|
$148.34 | ||
|
Available to order. Add to View Price |
|||
|
#18
O RING (D:2.4,ID:24.7)
09280-25004
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
OIL SEAL (38X54X6)
09283-38011
|
$18.83 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL (76X84X7)
09286-84001
|
$24.24 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN (7X12)
09202-07005
|
$7.05 | ||
|
Available to order. Add to View Price |
|||
