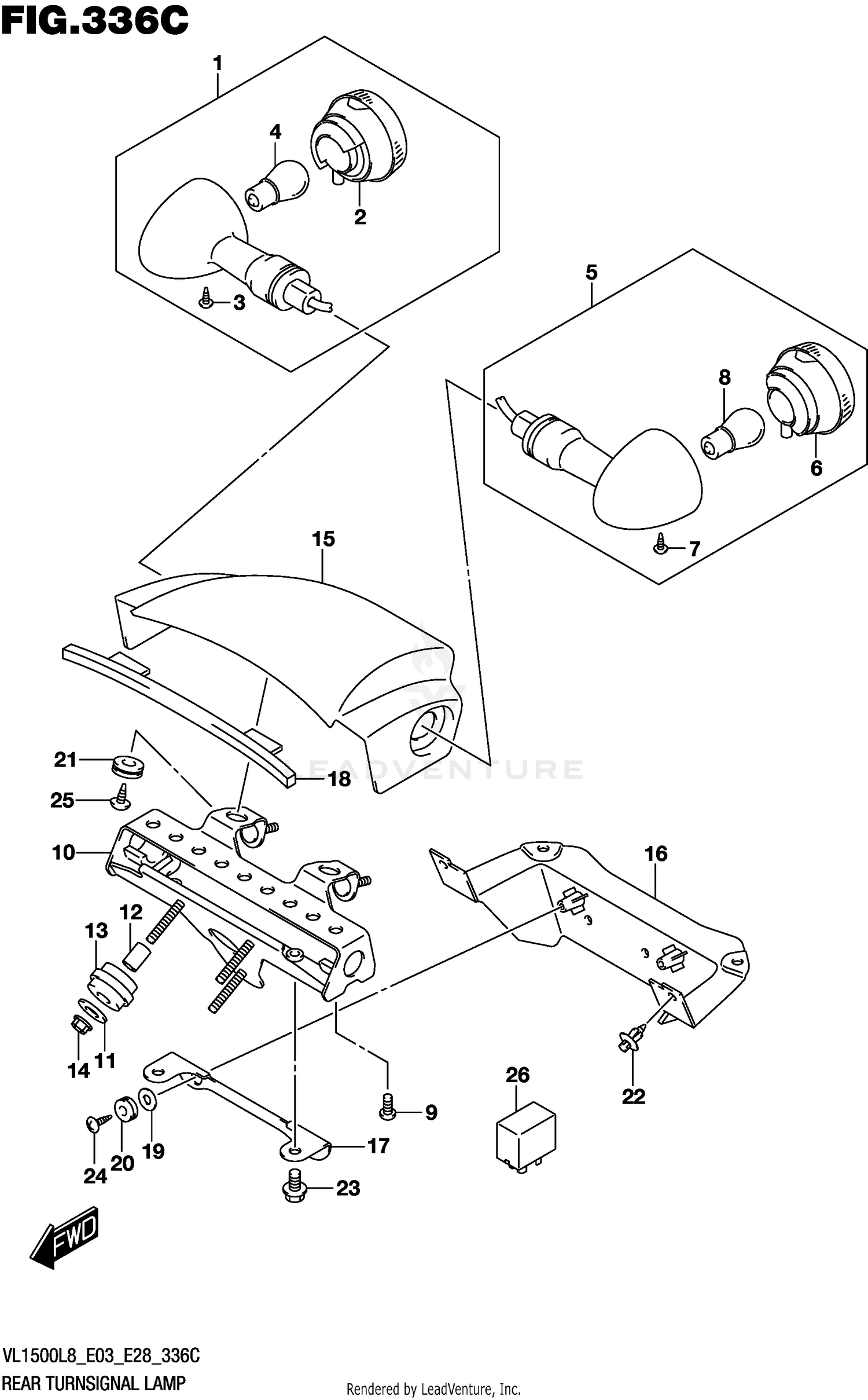

Rear Turnsignal Lamp (vl1500bl8 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY,REAR TURNSIGNAL RH
35603-38AH0
|
$151.38 | ||
|
Available to order. Add to View Price |
|||
|
#2
.LENS
35610-38AH0
|
$42.13 | ||
|
Available to order. Add to View Price |
|||
|
#3
.SCREW (4X10)
35623-38AA0
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#4
.BULB (12V21W)
09471-12045
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
LAMP ASSY,REAR TURNSIGNAL LH
35604-38AH0
|
$145.70 | ||
|
Available to order. Add to View Price |
|||
|
#6
.LENS
35630-38AH0
|
$42.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
.SCREW (4X10)
35623-38AA0
|
$6.31 | ||
|
Unavailable |
|||
|
#8
.BULB (12V21W)
09471-12045
|
$3.99 | ||
|
Unavailable |
|||
|
#9
BOLT (6X14)
09103-06507
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET,REAR TURNSIGNAL
35620-43H01
|
$58.31 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER (6.5X20X1.2)
09160-06077
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER (6.4X10X18)
09180-06195
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#13
CUSHION
09320-10504
|
$6.08 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT (6X12)
08316-1006A
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER
35621-06JB1
|
$132.06 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER,REAR TURNSIGNAL LWR
35622-06J00
|
$46.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET,REAR TURNSIGNAL COVER
35623-43H00
|
$11.43 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET
35657-06J00
|
$12.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER (4.3X14X0.8)
09160-04022
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#20
CUSHION (6.5X14X6)
09320-06016
Superseded by 09320-06027
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#21
.CUSHION (8.4X18X6)
09320-08066
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP (5.9X20.5,BLACK)
09409-06314-5PK
|
$3.23 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT
01550-0612A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW
03541-0412A
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW
03541-0510A
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#26
RELAY ASSY,TURNSIGNAL LAMP
38610-03F00
Superseded by 38610-03F01
|
$110.65 | ||
|
Available to order. Add to View Price |
|||
