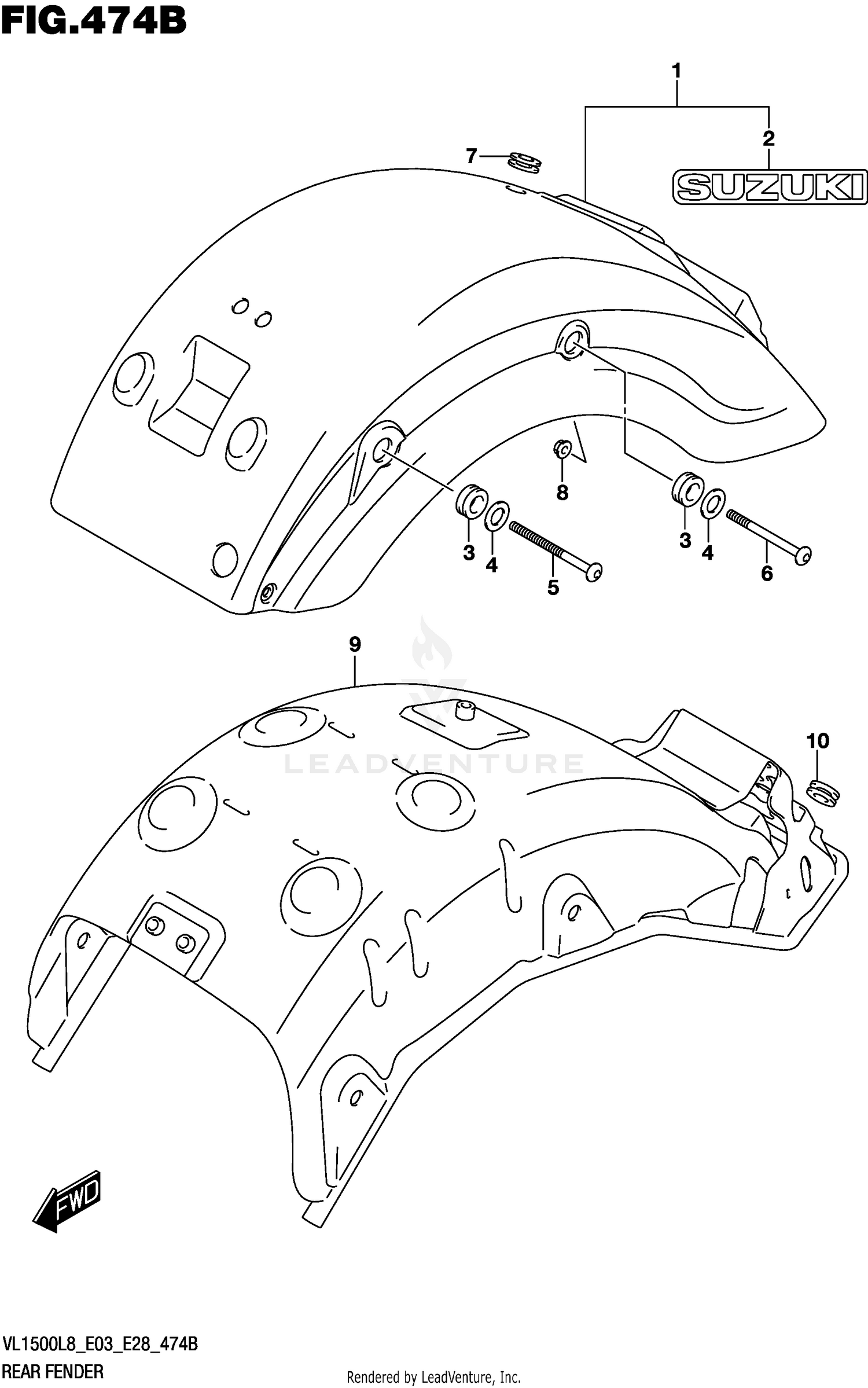

Rear Fender (vl1500bl8 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER
63110-06J00-019
|
$1,390.66 | ||
|
Available to order. Add to View Price |
|||
|
#2
.EMBLEM,"SUZUKI" (SILVER)
68271-34A00-YES
Superseded by 68271-34A01-YES
|
$8.70 | ||
|
Available to order. Add to View Price |
|||
|
#3
CUSHION,FRAME COVER,UP,REAR
47191-24F00
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER (15.5X26X2.3)
09160-15002
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
63161-06J10
|
$6.78 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT,REAR FENDER
63161-41F00
|
$11.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION
09320-15008
|
$4.81 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
08316-1008A
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
REINFORCE
63130-06J01
|
$333.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
GROMMET
09308-10017
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
