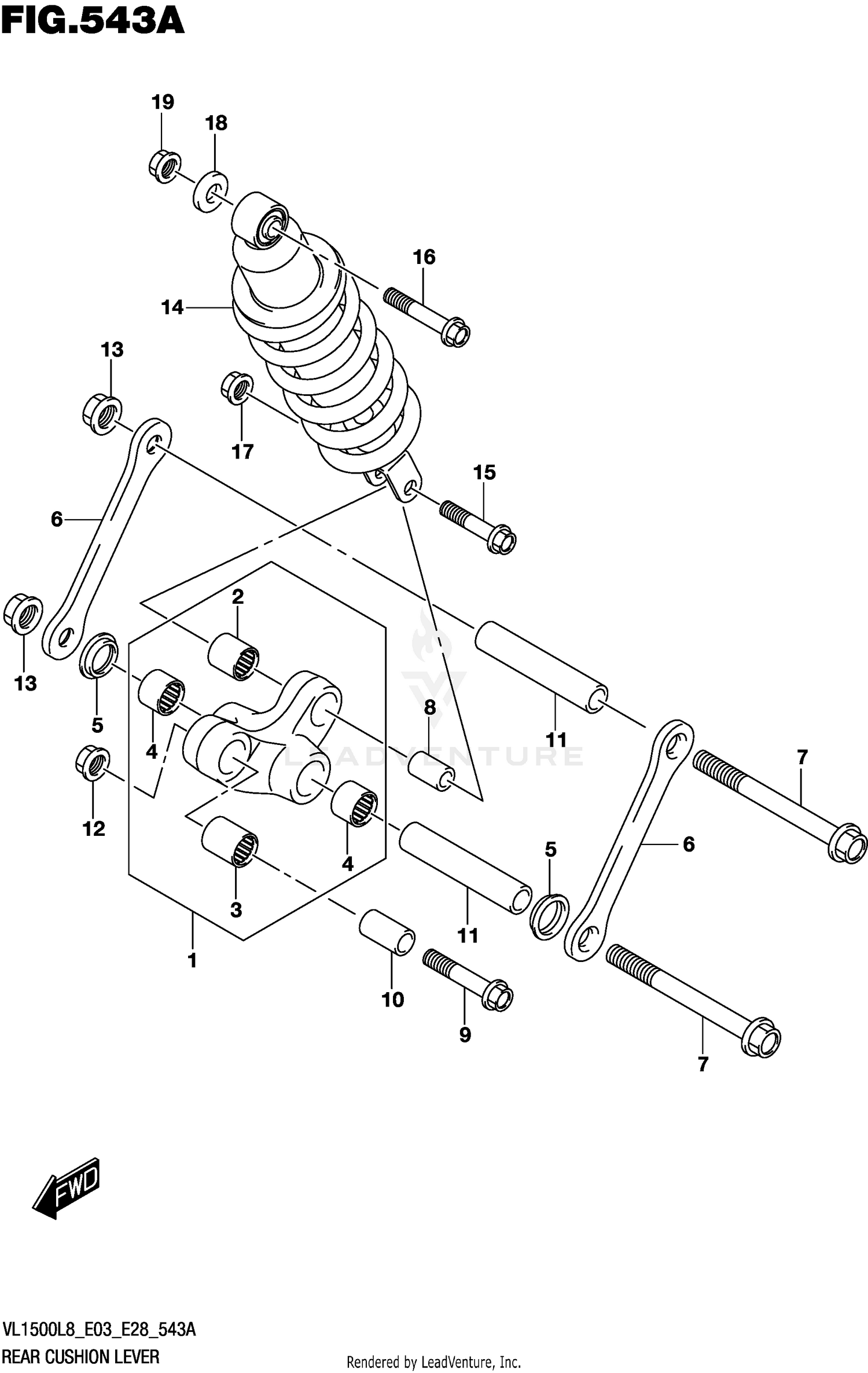

Rear Cushion Lever (vl1500bl8 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LEVER
62600-06880
|
$260.52 | ||
|
Available to order. Add to View Price |
|||
|
#2
.BEARING
09263-20064
Superseded by 09263-20120
|
$27.74 | ||
|
Available to order. Add to View Price |
|||
|
#3
.BEARING
09263-20074
Superseded by 09263-20116
|
$37.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
.BEARING (22X28X20)
09263-22062
|
$32.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAL
62624-37E00
|
$11.41 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROD
62641-06J00
|
$19.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
62658-44G10
|
$24.79 | ||
|
Unavailable |
|||
|
#8
SPACER
62684-01D00
|
$20.93 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (14X66)
09103-14016
|
$9.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER (14X20X34)
09180-14014
|
$18.39 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER (16X22X105)
09180-16049
|
$33.36 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
08319-3114A
|
$11.94 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
08319-3116A
|
$18.21 | ||
|
Available to order. Add to View Price |
|||
|
#14
ABSORBER ASSY
62100-06JB0-019
|
$641.22 | ||
|
Available to order. Add to View Price |
|||
|
#14
ABSORBER ASSY
62100-06JB0-019
|
$641.22 | ||
|
Unavailable |
|||
|
#15
BOLT,CUSHION LEVER,FRONT (12X
62668-42A02
|
$11.53 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
62658-27C10
|
$12.63 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
08319-3112A
|
$4.57 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPACER (12.1X25X14.5)
09180-12157
|
$15.47 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
09159-12056
|
$8.98 | ||
|
Available to order. Add to View Price |
|||
