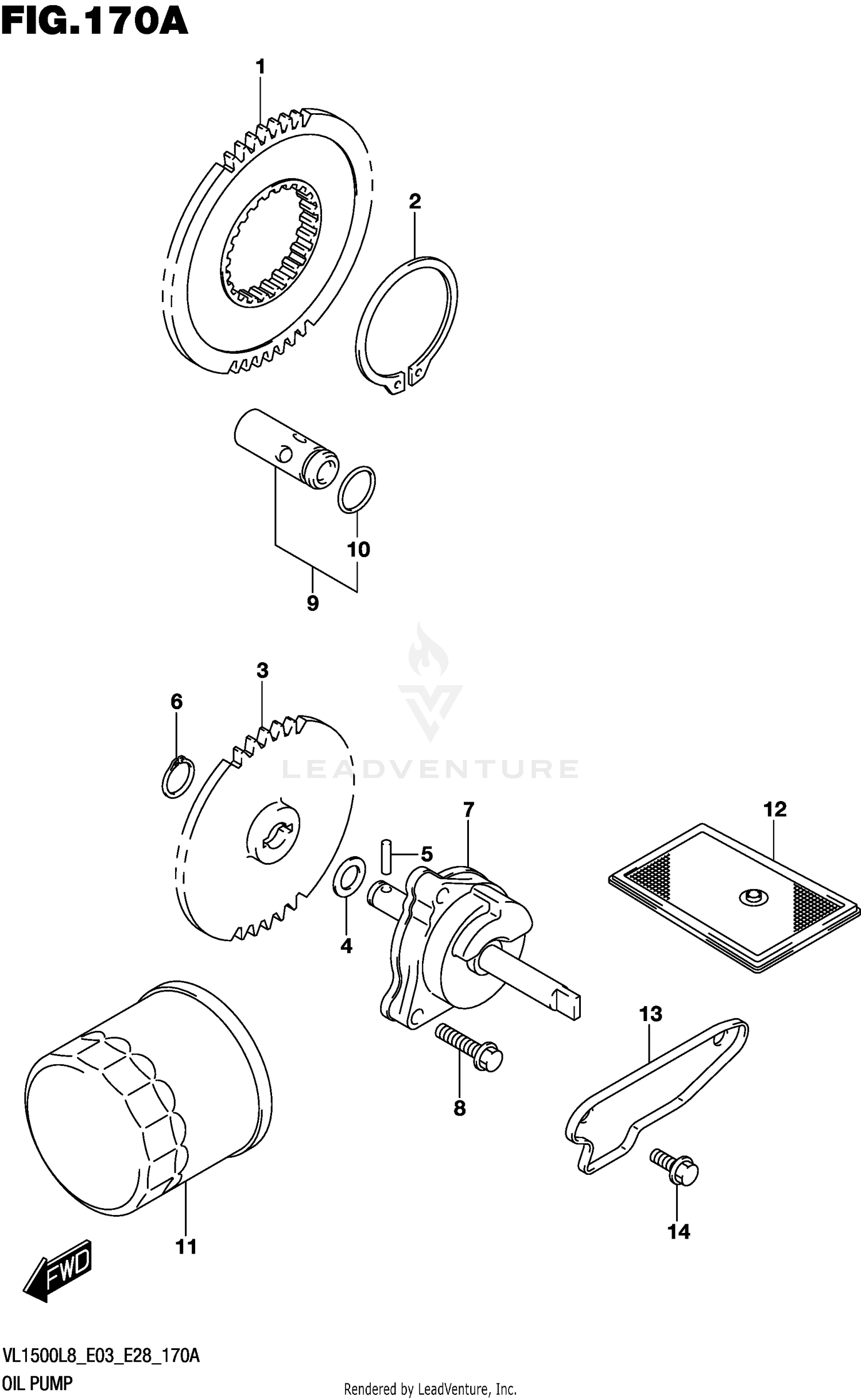

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR
16321-40H00
|
$86.59 | ||
|
Unavailable |
|||
|
#2
CIRCLIP
08331-31529
|
$5.37 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR
16331-40H00
|
$75.14 | ||
|
Unavailable |
|||
|
#4
SHIM (10X18X0.5)
09181-10158
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN (4X15.8)
09261-04009
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
CIRCLIP
08331-31109
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
PUMP ASSY
16400-40H00
|
$252.12 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
01547-0625A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
VALVE ASSY,OIL RELIEF (7K)
16440-24F00
|
$61.81 | ||
|
Available to order. Add to View Price |
|||
|
#10
.O RING (D:1.9,ID:13)
09280-13004
|
$2.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
FILTER ASSY,ENGINE OIL
16510-07J00
Superseded by 16510-07J10
|
$16.18 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
STRAINER,ENG OIL
16520-32E00
Superseded by 16520-32E01
|
$16.64 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP,OIL STRAINER
16523-17G00
|
$8.07 | ||
|
Unavailable |
|||
|
#14
BOLT
01547-0612A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
