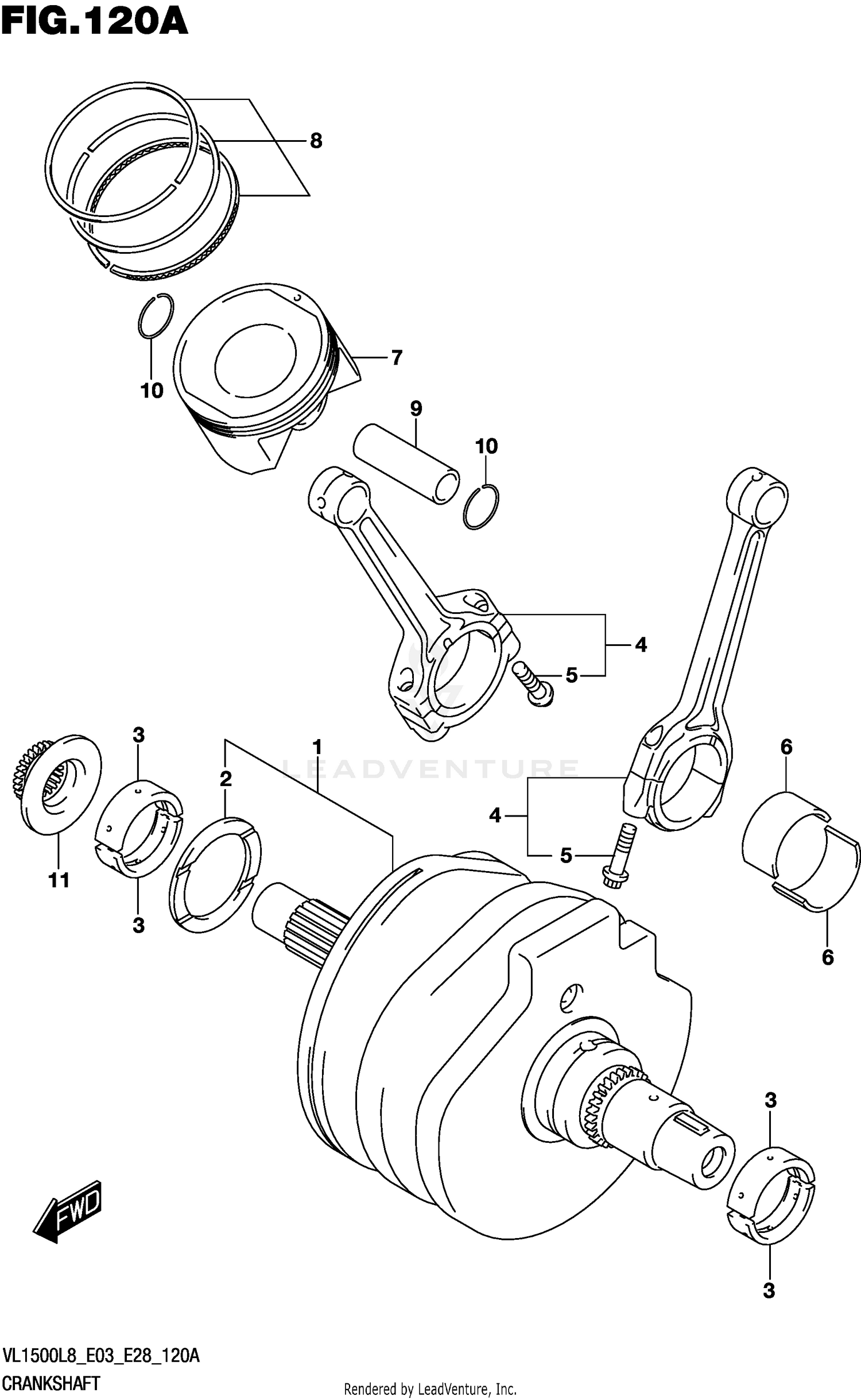

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT SET
12000-40851
|
$1,841.06 | ||
|
Available to order. Add to View Price |
|||
|
#2-1
.BEARING
12228-40H00-0A0
|
$19.13 | ||
|
Unavailable |
|||
|
#2-1
.BEARING
12228-40H00-0A0
|
$19.13 | ||
|
Unavailable |
|||
|
#2-2
.BEARING
12228-40H00-0B0
|
$19.13 | ||
|
Unavailable |
|||
|
#2-2
.BEARING
12228-40H00-0B0
|
$19.13 | ||
|
Unavailable |
|||
|
#2-3
.BEARING
12228-40H00-0C0
|
$19.13 | ||
|
Unavailable |
|||
|
#2-3
.BEARING
12228-40H00-0C0
|
$19.13 | ||
|
Unavailable |
|||
|
#2-4
.BEARING
12228-40H00-0D0
|
$19.13 | ||
|
Unavailable |
|||
|
#2-4
.BEARING
12228-40H00-0D0
|
$19.13 | ||
|
Unavailable |
|||
|
#2-5
.BEARING
12228-40H00-0E0
|
$19.13 | ||
|
Unavailable |
|||
|
#2-5
.BEARING
12228-40H00-0E0
|
$19.13 | ||
|
Unavailable |
|||
|
#2-6
.BEARING
12228-40H00-0F0
|
$19.13 | ||
|
Unavailable |
|||
|
#2-6
.BEARING
12228-40H00-0F0
|
$19.13 | ||
|
Unavailable |
|||
|
#3-1
BEARING
12229-40H00-0A0
|
$26.55 | ||
|
Available to order. Add to View Price |
|||
|
#3-2
BEARING
12229-40H00-0B0
|
$23.75 | ||
|
Available to order. Add to View Price |
|||
|
#3-3
BEARING
12229-40H00-0C0
|
$31.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
CONNROD ASSY
12160-40H00
|
$294.04 | ||
|
Available to order. Add to View Price |
|||
|
#5
.BOLT,CONNROD
12163-06G00
|
$22.54 | ||
|
Available to order. Add to View Price |
|||
|
#6-1
BEARING
12164-40H00-0A0
|
$21.25 | ||
|
Available to order. Add to View Price |
|||
|
#6-2
BEARING
12164-40H00-0B0
|
$24.33 | ||
|
Available to order. Add to View Price |
|||
|
#6-3
BEARING
12164-40H00-0C0
|
$20.72 | ||
|
Available to order. Add to View Price |
|||
|
#6-4
BEARING
12164-40H00-0D0
|
$15.46 | ||
|
Unavailable |
|||
|
#7
PISTON (YELLOW)
12111-40H10-0F0
|
$183.04 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING SET
12140-40H01
|
$99.37 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN,PISTON
12151-02F10
|
$31.48 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP
09381-22002
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPROCKET
12731-40H00
|
$123.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPROCKET
12731-40H00
|
$123.00 | ||
|
Unavailable |
|||
