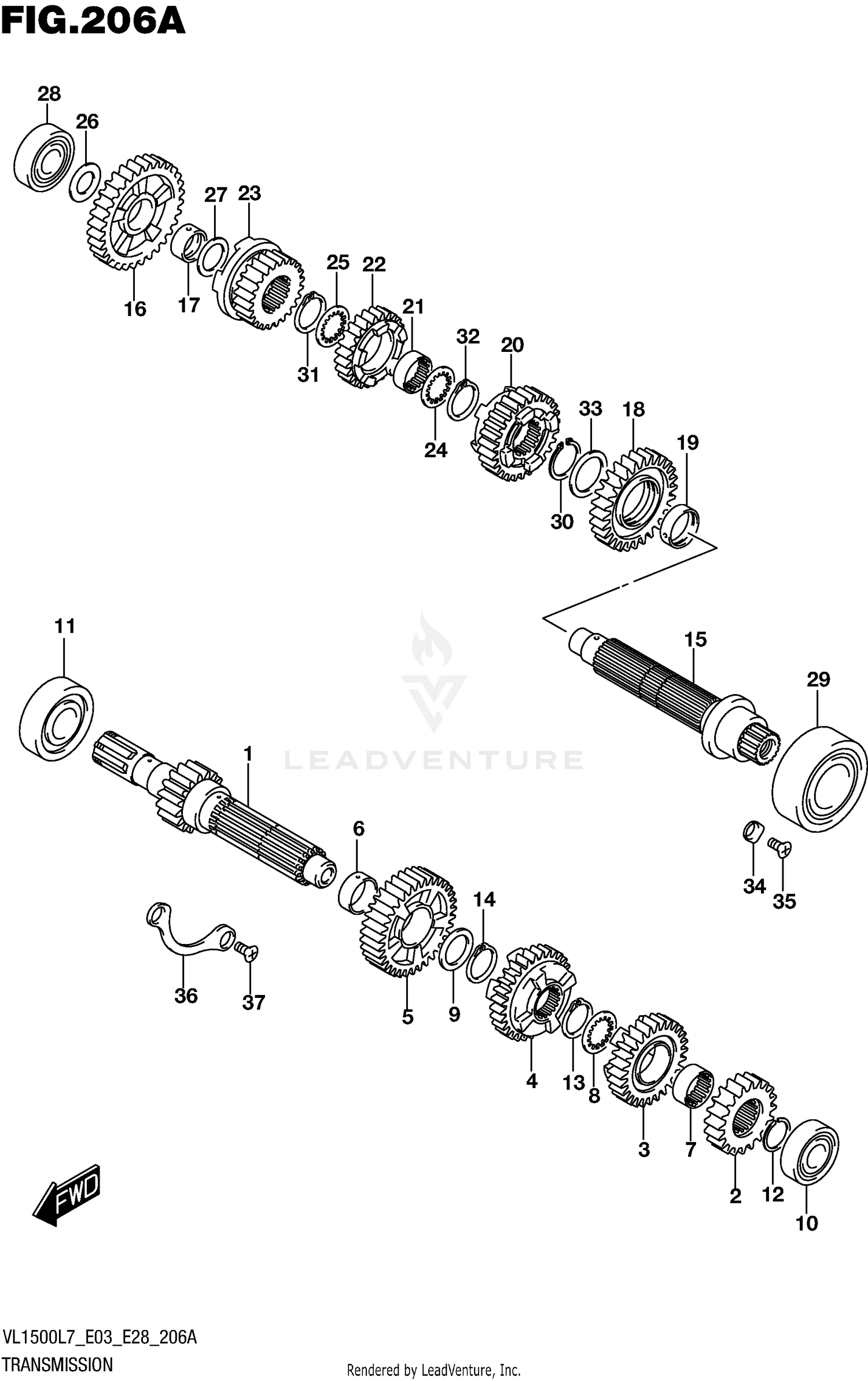

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT, COUNTER (NT:16)
24120-40H00
|
$273.43 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, 2ND DRIVE (NT:20)
24221-48G00
|
$172.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, 3RD DRIVE (NT:26)
24231-48G10
|
$207.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, 4TH DRIVE (NT:32)
24241-06J00
|
$248.59 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, 5TH DRIVE (NT:33)
24251-40H00
|
$241.17 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH, 5TH DRIVE GEAR
24252-24F10
|
$40.03 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSH, 3RD DRIVE GEAR
24262-24F10
|
$40.03 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER,LOCK (27X36X2.5)
09167-27003
|
$7.39 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIM (27X36X2.5)
09181-27014
|
$6.87 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING (20X52X15)
09262-20080
|
$42.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING (25X62X17)
09262-25153
|
$79.03 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP
09380-27004
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#13
CIRCLIP
09380-27006
|
$3.38 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CIRCLIP
09380-27006
|
$3.38 | ||
|
Unavailable |
|||
|
#15
SHAFT, DRIVE
24130-40H10
|
$305.77 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, 1ST DRIVEN (NT:35)
24311-48G00
|
$232.29 | ||
|
Available to order. Add to View Price |
|||
|
#17
BUSH, 1ST DRIVEN GEAR
24312-24F10
|
$40.03 | ||
|
Available to order. Add to View Price |
|||
|
#18
GEAR, 2ND DRIVEN (NT:28)
24321-48G10
|
$232.29 | ||
|
Available to order. Add to View Price |
|||
|
#19
BUSH, 2ND DRIVEN GEAR
24322-48G00
|
$36.25 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, 3RD DRIVEN (NT:27)
24331-06J00
|
$249.23 | ||
|
Available to order. Add to View Price |
|||
|
#21
BUSH, 4TH DRIVEN GEAR
24332-24F10
|
$38.54 | ||
|
Available to order. Add to View Price |
|||
|
#22
GEAR, 4TH DRIVEN (NT:28)
24341-40H00
|
$217.12 | ||
|
Available to order. Add to View Price |
|||
|
#23
GEAR, 5TH DRIVEN (NT:26)
24351-40H00
|
$232.82 | ||
|
Available to order. Add to View Price |
|||
|
#24
LOCK WASHER
09167-30008
|
$6.66 | ||
|
Available to order. Add to View Price |
|||
|
#25
LOCK WASHER
09167-30008
|
$6.66 | ||
|
Unavailable |
|||
|
#26
SHIM (22X34X1)
09181-22223
|
$3.97 | ||
|
Available to order. Add to View Price |
|||
|
#27
SHIM (24X34X1)
09181-24005
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING (22X56X16)
09262-22024
|
$76.23 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING (35X72X27)
09267-35004
|
$116.47 | ||
|
Available to order. Add to View Price |
|||
|
#30
CIRCLIP
09380-30009
|
$4.38 | ||
|
Available to order. Add to View Price |
|||
|
#31
CIRCLIP
09380-30009
|
$4.38 | ||
|
Unavailable |
|||
|
#32
CIRCLIP
09380-30009
|
$4.38 | ||
|
Unavailable |
|||
|
#33
WASHER
08211-30403
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#34
RETAINER, CL HSG BRG
24741-20A00
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW (6X12)
09126-06011
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#36
RETAINER, COUNTER SHAFT RH
24741-27A00
|
$11.37 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW (6X12)
09126-06011
|
$2.53 | ||
|
Unavailable |
|||
