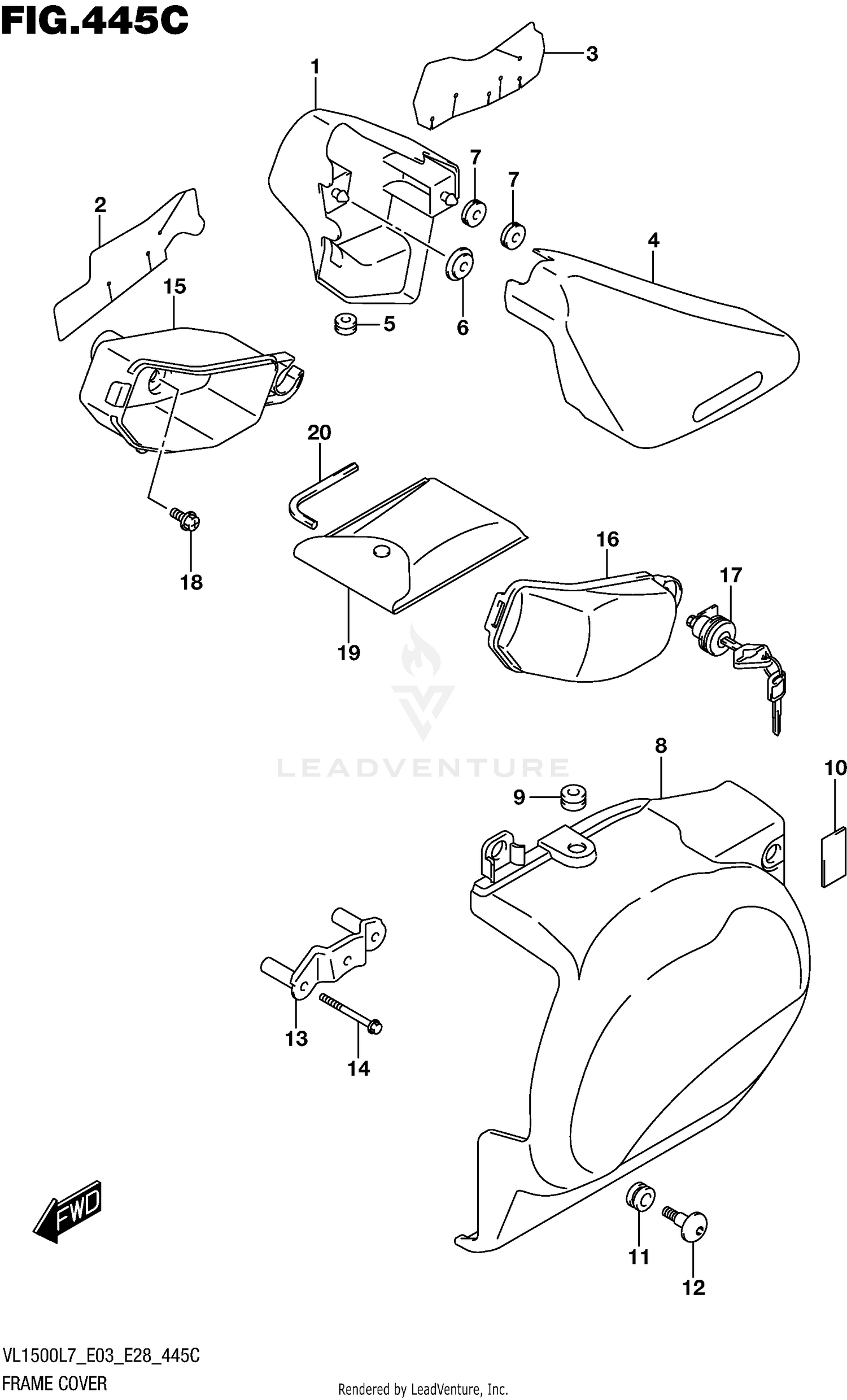

Frame Cover (vl1500bl7 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE RH (ORANGE)
47111-06J00-YUK
|
$112.63 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHIELD, SIDE COVER RH
47166-06J10
|
|||
|
Unavailable |
|||
|
#3
SHIELD, SIDE COVER RH
47166-06J20
|
$6.39 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, SIDE LH (ORANGE)
47211-40H00-YUK
|
$135.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUSHION, SIDE COVER LOWER RH
47167-06J00
|
$8.63 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION,COVER SIDE FR LH
47191-06J00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION
09320-08018
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, LOWER LH
47231-40H20
|
$134.82 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION
09320-06504
|
$6.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CUSHION
51827-01A00
|
$6.96 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION
09320-09016
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT (6X20)
09139-06190
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET, LOWER COVER LH
47250-06J00
|
$32.90 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
01547-0650A
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#15
BODY, LUGGAGE BOX
92211-06J00
|
$17.68 | ||
|
Unavailable |
|||
|
#16
LID
92212-06J00
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#17
LOCK SET,COVER
95700-07860
Superseded by 95700-07861
|
$97.54 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT (6X12)
09111-06107
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#19
TOOL ASSY
09800-21056
Superseded by 09800-21100
|
$44.35 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPANNER, 6 HEXAGON
09816-00050
|
$5.48 | ||
|
Available to order. Add to View Price |
|||
