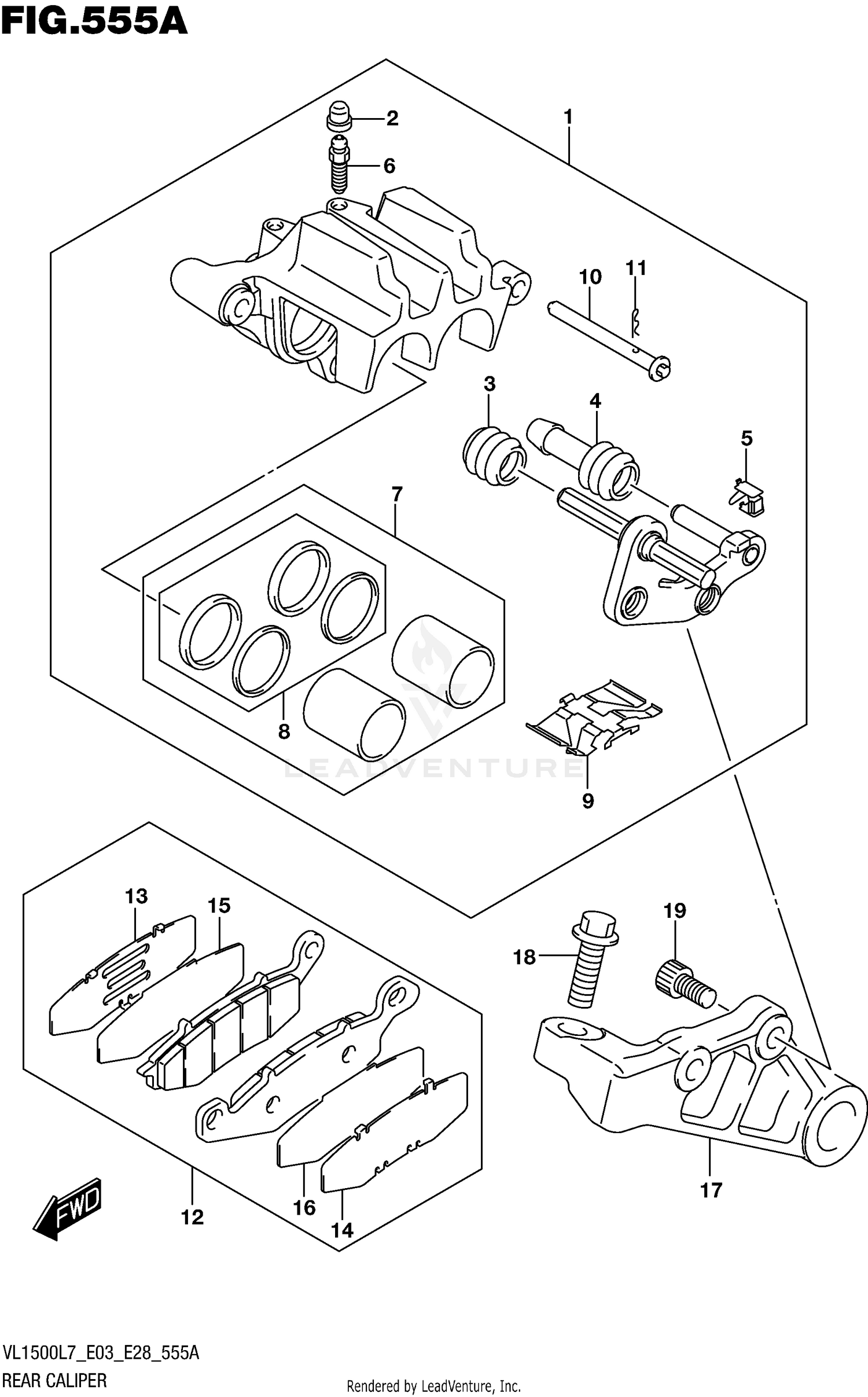

Rear Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CALIPER ASSY, REAR
69100-01DB0-999
|
$333.85 | ||
|
Available to order. Add to View Price |
|||
|
#2
.CAP, BLEEDER PLUG
55156-66310
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#3
.BOOT, AXLE
59112-44B00
|
$11.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
.INSULATOR, AXLE
59113-01D00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
.GUIDE,PAD
59116-33D00
|
$10.13 | ||
|
Available to order. Add to View Price |
|||
|
#6
.BLEEDER
59121-18410
|
$10.78 | ||
|
Available to order. Add to View Price |
|||
|
#7
.PISTON SET
69100-01840
|
$134.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
..SEAL SET, PISTON
59300-33841
|
$19.09 | ||
|
Available to order. Add to View Price |
|||
|
#9
.SPRING, PAD
69115-01D40
|
$19.83 | ||
|
Available to order. Add to View Price |
|||
|
#10
.PIN, PAD
69141-01D40
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
.CLIP,PAD PIN
69142-45000
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#12
PAD SET
69101-01810
|
$99.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
.SHIM,PAD
59171-33D00
|
$16.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
.SHIM,PAD NO.2
59172-33D00
|
$18.13 | ||
|
Available to order. Add to View Price |
|||
|
#15
.INSULATOR NO.1
69171-01D40
|
$24.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
.INSULATOR NO.2
69172-01D40
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET, REAR CALIPER
69721-48G30
|
$229.26 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT (12X40)
09103-12109
|
$5.56 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT (10X20)
09106-10062
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
