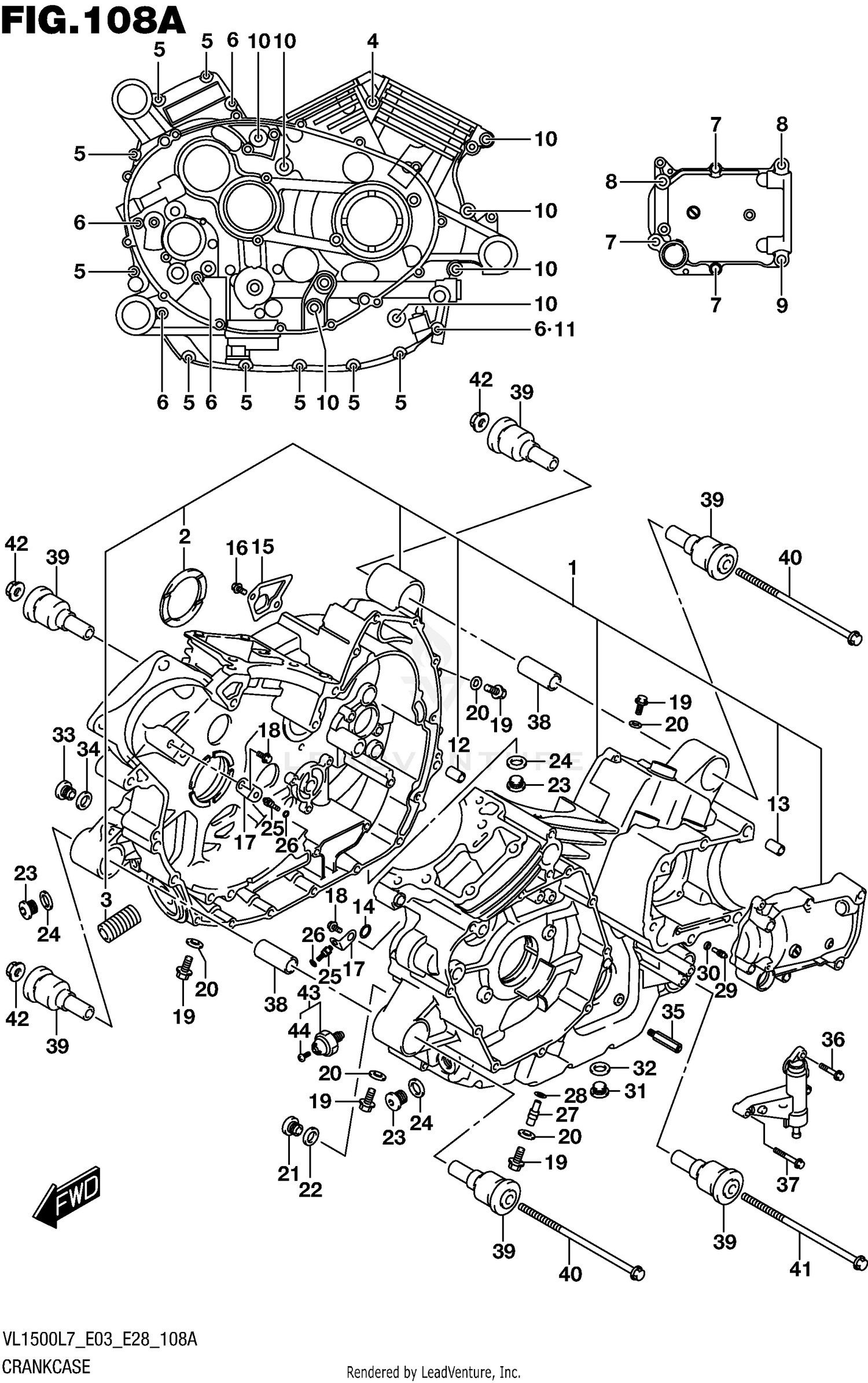

Crankcase (vl1500bl7 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET
11301-40871
|
$3,654.29 | ||
|
Available to order. Add to View Price |
|||
|
#2-1
.BEARING, CRANK THRUST
12228-40H00-0A0
|
$19.13 | ||
|
Unavailable |
|||
|
#2-1
(T:1.925-1.950)
12228-40H00-0A0
|
$19.13 | ||
|
Unavailable |
|||
|
#2-2
.BEARING, CRANK THRUST
12228-40H00-0B0
|
$19.13 | ||
|
Unavailable |
|||
|
#2-2
(T:1.950-1.975)
12228-40H00-0B0
|
$19.13 | ||
|
Unavailable |
|||
|
#2-3
.BEARING, CRANK THRUST
12228-40H00-0C0
|
$19.13 | ||
|
Unavailable |
|||
|
#2-3
(T:1.975-2.000)
12228-40H00-0C0
|
$19.13 | ||
|
Unavailable |
|||
|
#2-4
.BEARING, CRANK THRUST
12228-40H00-0D0
|
$19.13 | ||
|
Unavailable |
|||
|
#2-4
(T:2.000-2.025)
12228-40H00-0D0
|
$19.13 | ||
|
Unavailable |
|||
|
#2-5
.BEARING, CRANK THRUST
12228-40H00-0E0
|
$19.13 | ||
|
Unavailable |
|||
|
#2-5
(T:2.025-2.050)
12228-40H00-0E0
|
$19.13 | ||
|
Unavailable |
|||
|
#2-6
.BEARING, CRANK THRUST
12228-40H00-0F0
|
$19.13 | ||
|
Unavailable |
|||
|
#2-6
(T:2.050-2.075)
12228-40H00-0F0
|
$19.13 | ||
|
Unavailable |
|||
|
#3
UNION,OIL STAND
16591-06B01
|
$8.70 | ||
|
Available to order. Add to View Price |
|||
|
#4
.BOLT (8X110)
09103-08134
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
01547-0645A
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
.BOLT
01547-0685A
|
|||
|
Unavailable |
|||
|
#7
.BOLT
01550-0845A
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
.BOLT
01550-0860A
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#9
.BOLT
01550-0870A
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#10
.BOLT
01550-0880A
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#11
.GASKET (5.8X13X1.2)
09168-06023
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
PIN,CRANKCASE
11319-33E50
|
$6.76 | ||
|
Available to order. Add to View Price |
|||
|
#13
.PIN (8.4X11X20)
09206-11007
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#14
O RING (D:1.9,ID:12.6)
09280-12009
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, OIL SEPARATOR
11313-40H00
|
$11.17 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
01547-0612A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, PISTON JET REAR
16439-38B00
|
$1.87 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
01547-0612A
|
$2.45 | ||
|
Unavailable |
|||
|
#19
BOLT (8X12)
01550-0812A
|
$2.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
GASKET (8.2X14X1)
09168-08016
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLUG (10X10)
09248-10010
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET (10X14X3.6)
09168-10002
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
PLUG (16X8)
09248-16012
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET (16X22X2)
09168-16002
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
JET, PISTON-COOLING (0.8)
09493-80009
|
$21.76 | ||
|
Available to order. Add to View Price |
|||
|
#26
O RING (D:1.2,ID:4)
09280-04004
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
JET (12)
09493-24009
|
$13.28 | ||
|
Available to order. Add to View Price |
|||
|
#28
O RING (D:1.2,ID:4)
09280-04004
|
$1.99 | ||
|
Unavailable |
|||
|
#29
JET,OIL GALY (#18)
09493-36004
|
$17.72 | ||
|
Available to order. Add to View Price |
|||
|
#30
O RING (D:1.2,ID:4)
09280-04004
|
$1.99 | ||
|
Unavailable |
|||
|
#31
PLUG (14X20)
09247-14036
|
$7.52 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
.GASKET (13.8X18.8X4.8)
09168-14002
|
$2.75 | ||
|
Unavailable |
|||
|
#33
PLUG, SHAFT
09248-14012
Superseded by 09248-14011
|
$3.68 | ||
|
Available to order. Add to View Price |
|||
|
#34
.GASKET (13.8X18.8X4.8)
09168-14002
|
$2.75 | ||
|
Unavailable |
|||
|
#35
BOLT, SEC DRIVE UNIT COVER
11372-22H00
|
$16.20 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT
01547-0620A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT
01547-0630A
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPACER, ENGINE MOUNTING
11611-48G00
|
$17.51 | ||
|
Available to order. Add to View Price |
|||
|
#39
BUSH, ENGINE MOUNTING
11652-40H20
|
$32.72 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT (10X215)
09103-10041-A05
|
$12.66 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT (10X195)
09103-10118
|
$13.46 | ||
|
Available to order. Add to View Price |
|||
|
#42
NUT
08319-3110A
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#43
SWITCH ASSY,OIL PRESSURE
37820-33D10
Superseded by 37820-33D11
|
$26.40 | ||
|
Unavailable |
|||
|
#44
.BOLT,OIL PRESSURE SWITCH
37822-33D00
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
