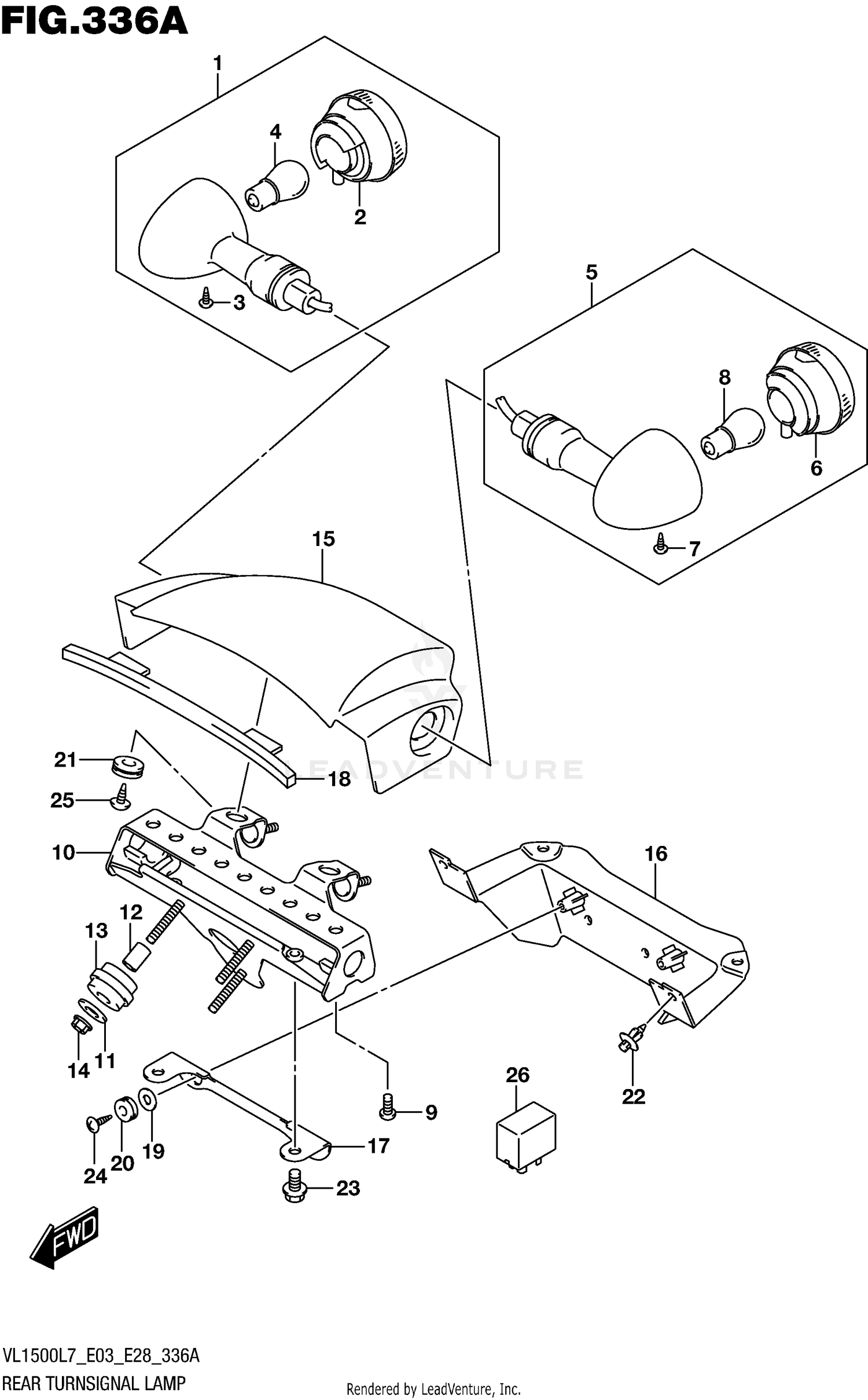

Rear Turnsignal Lamp (vl1500bl7 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, REAR TURNSIGNAL RH
35603-38AH0
|
$157.44 | ||
|
Available to order. Add to View Price |
|||
|
#2
.LENS
35610-38AH0
|
$44.03 | ||
|
Available to order. Add to View Price |
|||
|
#3
.SCREW (4X10)
35623-38AA0
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
.BULB (12V,21W)
09471-12045
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#5
LAMP ASSY, REAR TURNSIGNAL LH
35604-38AH0
|
$151.53 | ||
|
Available to order. Add to View Price |
|||
|
#6
.LENS
35630-38AH0
|
$44.03 | ||
|
Available to order. Add to View Price |
|||
|
#7
.SCREW (4X10)
35623-38AA0
|
$6.60 | ||
|
Unavailable |
|||
|
#8
.BULB (12V,21W)
09471-12045
|
$4.13 | ||
|
Unavailable |
|||
|
#9
BOLT (6X14)
09103-06507
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET, REAR TURNSIGNAL
35620-43H01
|
$60.94 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER (6.5X20X1.2)
09160-06077
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER (6.4X10X18)
09180-06195
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
CUSHION
09320-10504
|
$6.29 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
08316-1006A
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, REAR TURNSIGNAL UPPER
35621-06JB1
|
$137.34 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, REAR TURNSIGNAL LOWER
35622-06J00
|
$48.28 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET, REAR TURNSIGNAL COVE
35623-43H00
|
$11.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET, REAR TURNSIGNAL COVER
35657-06J00
|
$12.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER (4.3X14X0.8)
09160-04022
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#20
CUSHION (6.5X14X6)
09320-06016
Superseded by 09320-06027
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#21
.CUSHION (8.4X18X6)
09320-08066
|
$10.34 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP (BLACK)
09409-06314-5PK
|
$3.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT
01550-0612A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW
03541-0412A
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW
03541-0510A
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#26
RELAY ASSY,TURNSIGNAL LAMP
38610-03F00
Superseded by 38610-03F01
|
$115.08 | ||
|
Available to order. Add to View Price |
|||
