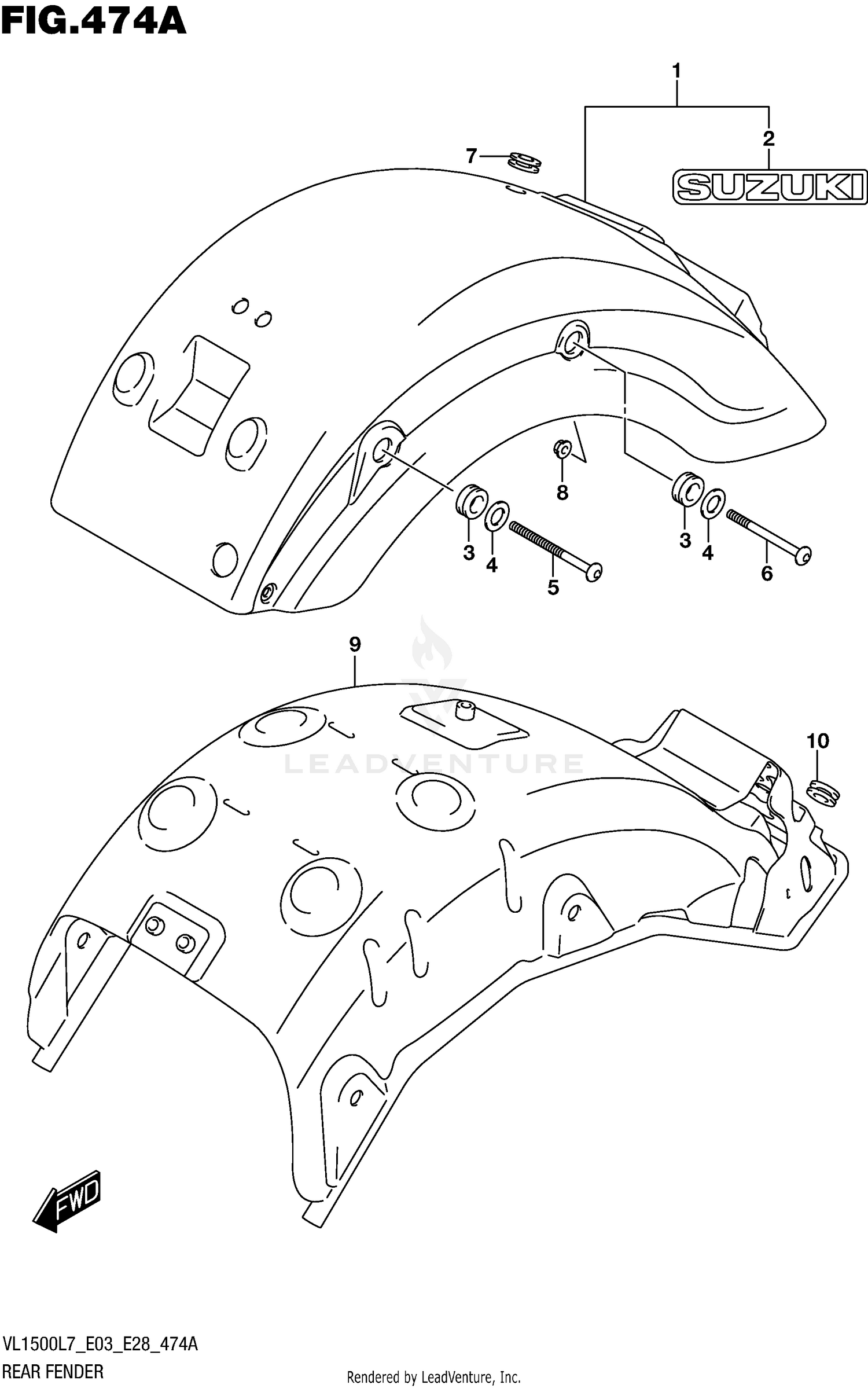

Rear Fender (vl1500bl7 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER COMP,REA
63110-06J00-YUK
Superseded by 63110-06J01-YUK
|
$1,541.59 | ||
|
Unavailable |
|||
|
#2
EMBLEM,"SUZUKI"
68271-34A00-20G
Superseded by 68271-34A01-20G
|
$6.17 | ||
|
Available to order. Add to View Price |
|||
|
#3
CUSHION,FRAME COVER,UP,REAR
47191-24F00
|
$6.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER (15.5X26X2.3)
09160-15002
|
$2.06 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
63161-06J10
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
63161-41F00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION
09320-15008
|
$4.98 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
08316-1008A
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#9
REINFORCE, REAR FENDER
63130-06J01
|
$343.56 | ||
|
Available to order. Add to View Price |
|||
|
#10
GROMMET
09308-10017
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
