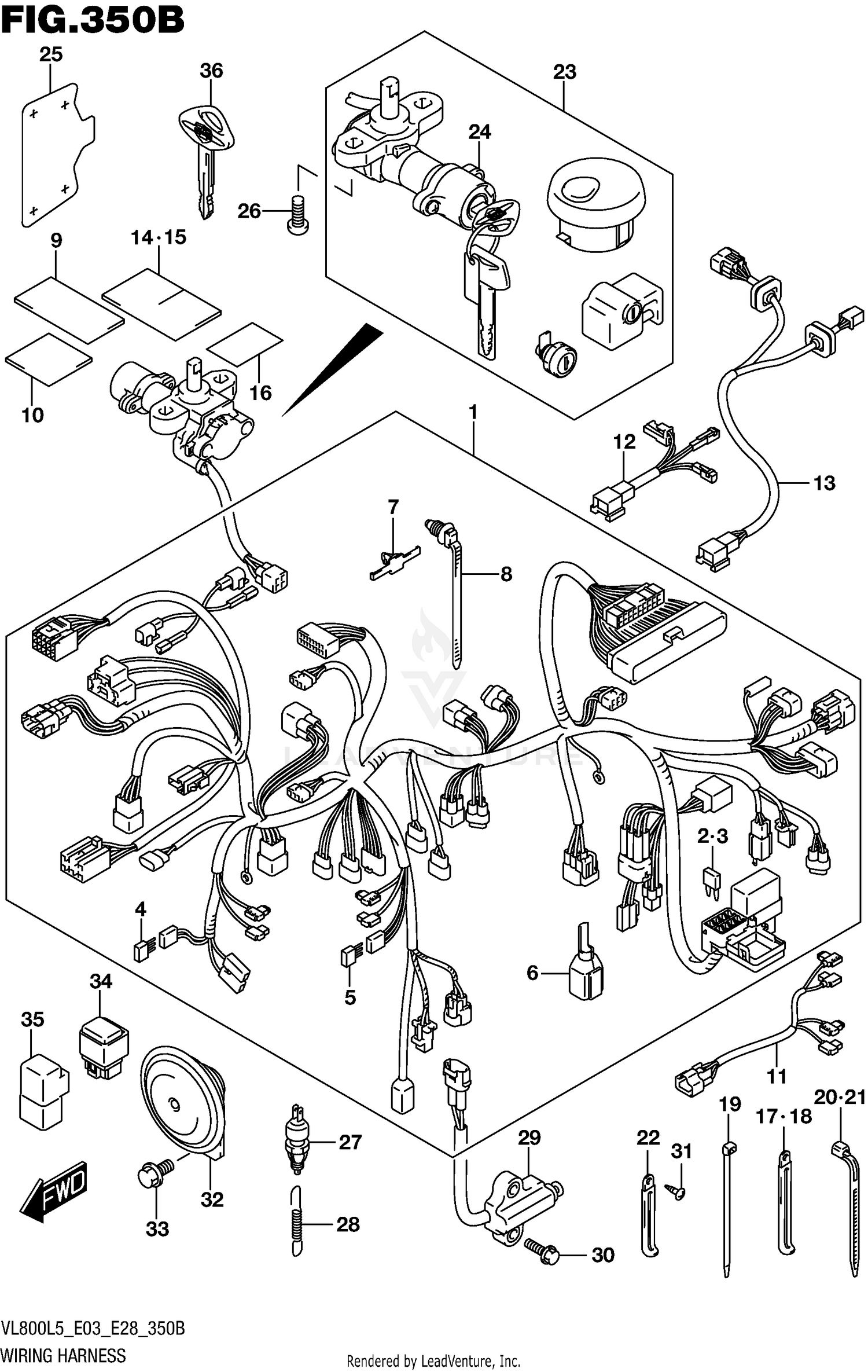

Wiring Harness (vl800l5 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS, WIRING
36610-43H70
|
$747.14 | ||
|
Available to order. Add to View Price |
|||
|
#2
FUSE (10A)
09481-10501
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUSE (20A)
09481-20501
|
$1.96 | ||
|
Unavailable |
|||
|
#4
RECTIFIER ASSY
32800-16A00
|
$28.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
.DIODE
36611-38A00
Superseded by 36611-38A10
|
$16.72 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOOT
36717-41F00
|
$9.07 | ||
|
Unavailable |
|||
|
#7
CLAMP
09407-05410
|
$4.09 | ||
|
Unavailable |
|||
|
#8
CLAMP (L:154)
09407-17403
|
$6.24 | ||
|
Available to order. Add to View Price |
|||
|
#9
TAPE, FENDER
36611-16G00
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#10
TAPE WIRING (30X50X3)
36611-41F00
|
$5.43 | ||
|
Unavailable |
|||
|
#11
WIRE,IGNITION COIL LEAD
36854-39G00
|
$54.85 | ||
|
Available to order. Add to View Price |
|||
|
#12
WIRE, REARCOMBINATIONNO.2
36856-41F00
|
$39.77 | ||
|
Available to order. Add to View Price |
|||
|
#13
WIRE,RR COMB
36858-41F00
Superseded by 36858-41F01
|
$35.26 | ||
|
Unavailable |
|||
|
#14
PROTECTOR (30X50X3)
36920-33C00
|
$1.84 | ||
|
Unavailable |
|||
|
#15
PROTECTOR (30X50X3)
36920-33C00
|
$1.84 | ||
|
Unavailable |
|||
|
#16
PROTECTOR, WIRING HARNESS
94474-17H00
|
$4.96 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP(L:80)
09404-06433
Superseded by 09404-06036
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP (L:135)
09404-06435
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP (L:145)
09407-14407
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP (L:165)
09407-18402
|
$2.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
CLAMP (L:190)
09407-19401
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP 8L:45)
09404-06429
|
$2.20 | ||
|
Unavailable |
|||
|
#23
LOCK SET
37102-41880
Superseded by 37102-41883
|
$341.09 | ||
|
Unavailable |
|||
|
#24
.LOCK ASSY,STEERING
37100-41F70
Superseded by 37100-41F71
|
$163.25 | ||
|
Unavailable |
|||
|
#25
PROTECTOR, IGNITION SWITCH
37187-41F10
|
$13.15 | ||
|
Unavailable |
|||
|
#26
BOLT (8X20)
09139-08016
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#27
SWITCH ASSY, STOP LAMP
37740-24A00
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPRING
09443-06073
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#29
SWITCH ASSY,SIDE STAND
37840-41F00
Superseded by 37840-41F02
|
$65.20 | ||
|
Unavailable |
|||
|
#30
BOLT (6X20)
01550-0620B
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW
03541-0512A
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#32
HORN ASSY
38500-41F30
|
$94.73 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT (8X16)
01550-0816A
|
$2.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
RELAY ASSY, HEAD LAMP
38740-24A00
|
$68.37 | ||
|
Available to order. Add to View Price |
|||
|
#35
RELAY ASSY, FUEL PUMP
38740-24X50
|
$55.84 | ||
|
Available to order. Add to View Price |
|||
|
#36
KEY, BLANK "BOULEVARD"
37146-41FA0
|
$54.69 | ||
|
Available to order. Add to View Price |
|||
