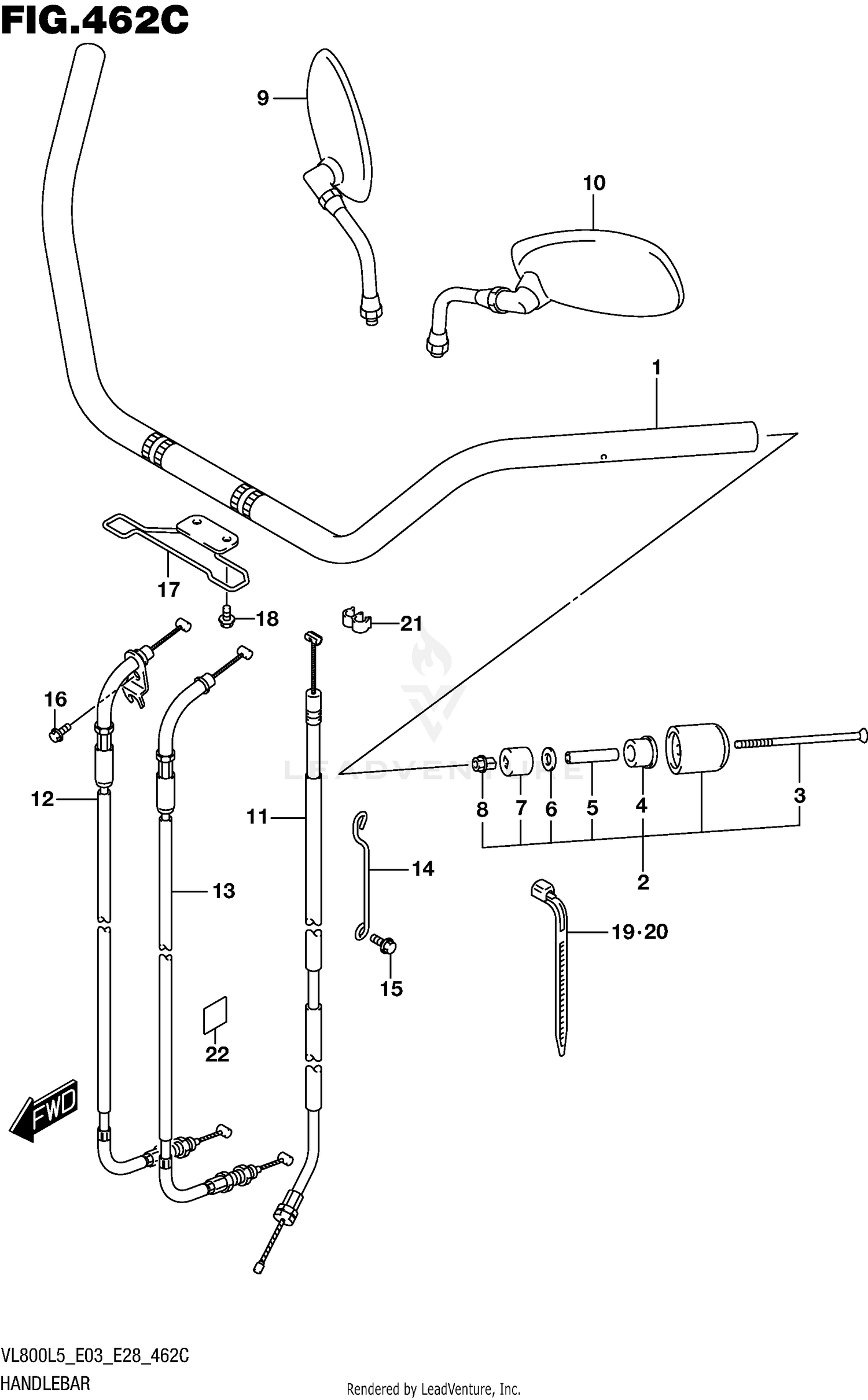

Handlebar (vl800tl5 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
56111-41F30
|
$251.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
BALANCER SET, HANDLEBAR
56200-10891
Superseded by 56200-10892
|
$70.88 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW (6X127)
09127-06017
|
$3.23 | ||
|
Available to order. Add to View Price |
|||
|
#4
EXPANDER, OUTER
56272-26D01
|
$9.22 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER
56276-17D00
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
.WASHER, (6.5X16X4)
09160-06131
|
$3.06 | ||
|
Available to order. Add to View Price |
|||
|
#7
EXPANDER, INNER
56272-10G10
|
$6.01 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
56273-10G10
|
$10.69 | ||
|
Available to order. Add to View Price |
|||
|
#9
MIRROR ASSY, REAR VIEW RH
56500-41F01
|
$102.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
MIRROR ASSY, REAR VIEW LH
56600-41F01
|
$107.21 | ||
|
Available to order. Add to View Price |
|||
|
#11
CABLE ASSY, CLUTCH
58200-41F30
|
$91.26 | ||
|
Available to order. Add to View Price |
|||
|
#12
CABLE ASSY,THROTTLE NO.1
58300-43H00
Superseded by 58300-43H01
|
$42.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
CABLE ASSY,THROTTLE NO.2
58300-43H10
Superseded by 58300-43H11
|
$35.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
GUIDE, THROTTLE CABLE
58626-41F01
|
$6.58 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
01550-0612B
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
01550-0616A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#17
GUIDE, CABLE
58620-41F00
|
$16.35 | ||
|
Unavailable |
|||
|
#18
BOLT
01550-0612A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP (L:190)
09407-19401
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP (L:300)
09407-30401
|
$6.01 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP
09408-00244
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PROTECTOR
87873-56K50
|
$10.71 | ||
|
Available to order. Add to View Price |
|||
