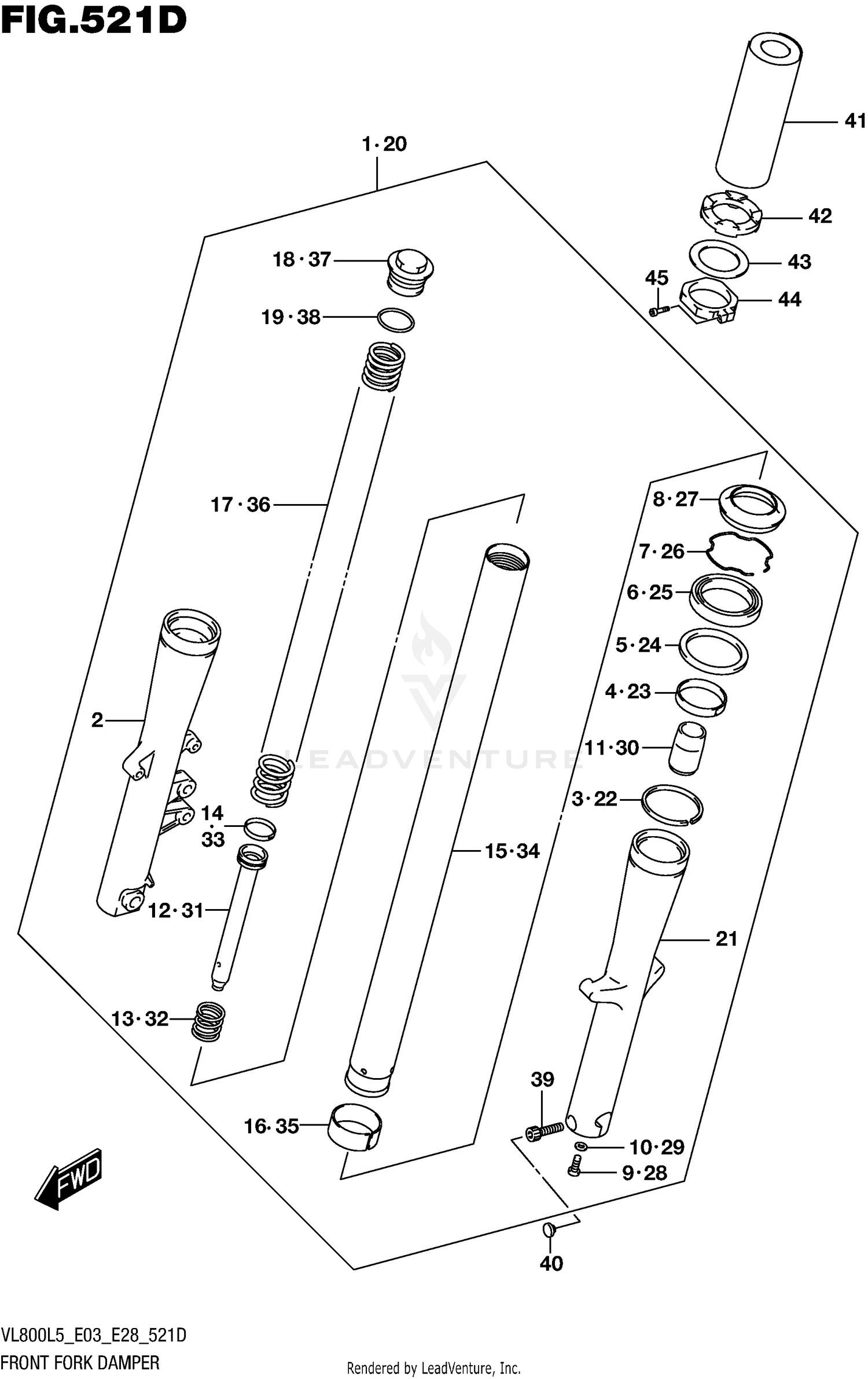

Front Fork Damper (vl800tl5 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DAMPER FRONT,RH
51103-41F40
Superseded by 51103-41F41
|
$884.44 | ||
|
Available to order. Add to View Price |
|||
|
#2
.TUBE,OUTER RH
51131-41F20
|
$624.72 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, CASE
51469-41F21
|
$19.12 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSH, GUIDE
51152-11D60
|
$17.62 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER, SEAL
51168-38B00
|
$8.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL, OIL
51153-08D00
|
$28.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
RING
51556-38B00
|
$8.92 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAL, DUST
51571-47D50
|
$27.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOLT
51147-06F10
|
$6.47 | ||
|
Available to order. Add to View Price |
|||
|
#10
.GASKET (8.2X13X1.5)
51148-36011
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIECE, OIL LOCK
51195-10F00
|
$32.65 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAT, PIPE
51146-10F00
|
$92.15 | ||
|
Unavailable |
|||
|
#13
SPRING, REBOUND
51177-10F00
|
$12.32 | ||
|
Available to order. Add to View Price |
|||
|
#14
RING
51196-47D00
|
$9.54 | ||
|
Available to order. Add to View Price |
|||
|
#15
TUBE, INNER
51110-41F40
|
$541.41 | ||
|
Available to order. Add to View Price |
|||
|
#16
BUSH, SLIDE
51121-42E00
|
$22.63 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, FRONT
51171-41F40
|
$136.14 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FORK
51189-47D50
|
$56.42 | ||
|
Available to order. Add to View Price |
|||
|
#19
.O RING
51117-12C00
|
$4.94 | ||
|
Available to order. Add to View Price |
|||
|
#20
DAMPER FRONT,LH
51104-41F40
Superseded by 51104-41F41
|
$808.75 | ||
|
Unavailable |
|||
|
#21
.TUBE,OUTER LH
51141-41F20
|
$624.72 | ||
|
Available to order. Add to View Price |
|||
|
#22
GUIDE, CASE
51469-41F21
|
$19.12 | ||
|
Unavailable |
|||
|
#23
BUSH, GUIDE
51152-11D60
|
$17.62 | ||
|
Unavailable |
|||
|
#24
SPACER, SEAL
51168-38B00
|
$8.25 | ||
|
Unavailable |
|||
|
#25
SEAL, OIL
51153-08D00
|
$28.37 | ||
|
Unavailable |
|||
|
#26
RING
51556-38B00
|
$8.92 | ||
|
Unavailable |
|||
|
#27
SEAL, DUST
51571-47D50
|
$27.05 | ||
|
Unavailable |
|||
|
#28
BOLT
51147-06F10
|
$6.47 | ||
|
Unavailable |
|||
|
#29
.GASKET (8.2X13X1.5)
51148-36011
|
$4.40 | ||
|
Unavailable |
|||
|
#30
PIECE, OIL LOCK
51195-10F00
|
$32.65 | ||
|
Unavailable |
|||
|
#31
SEAT, PIPE
51146-10F00
|
$92.15 | ||
|
Unavailable |
|||
|
#32
SPRING, REBOUND
51177-10F00
|
$12.32 | ||
|
Unavailable |
|||
|
#33
RING
51196-47D00
|
$9.54 | ||
|
Unavailable |
|||
|
#34
TUBE, INNER
51110-41F40
|
$541.41 | ||
|
Unavailable |
|||
|
#35
BUSH, SLIDE
51121-42E00
|
$22.63 | ||
|
Unavailable |
|||
|
#36
SPRING, FRONT
51171-41F40
|
$136.14 | ||
|
Unavailable |
|||
|
#37
BOLT, FORK
51189-47D50
|
$56.42 | ||
|
Unavailable |
|||
|
#38
.O RING
51117-12C00
|
$4.94 | ||
|
Unavailable |
|||
|
#39
.BOLT
07130-10357
|
$5.45 | ||
|
Available to order. Add to View Price |
|||
|
#40
CAP (OD:12)
09250-08014
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#41
CASE, UNDER
51464-41F21
|
$213.18 | ||
|
Available to order. Add to View Price |
|||
|
#42
SEAT, RUBBER
51468-10F00
|
$23.59 | ||
|
Available to order. Add to View Price |
|||
|
#43
WASHER
51467-10F70
|
$13.66 | ||
|
Available to order. Add to View Price |
|||
|
#44
SPACER
51465-41F20
|
$57.80 | ||
|
Available to order. Add to View Price |
|||
|
#45
BOLT
51466-10F00
|
$8.15 | ||
|
Available to order. Add to View Price |
|||
