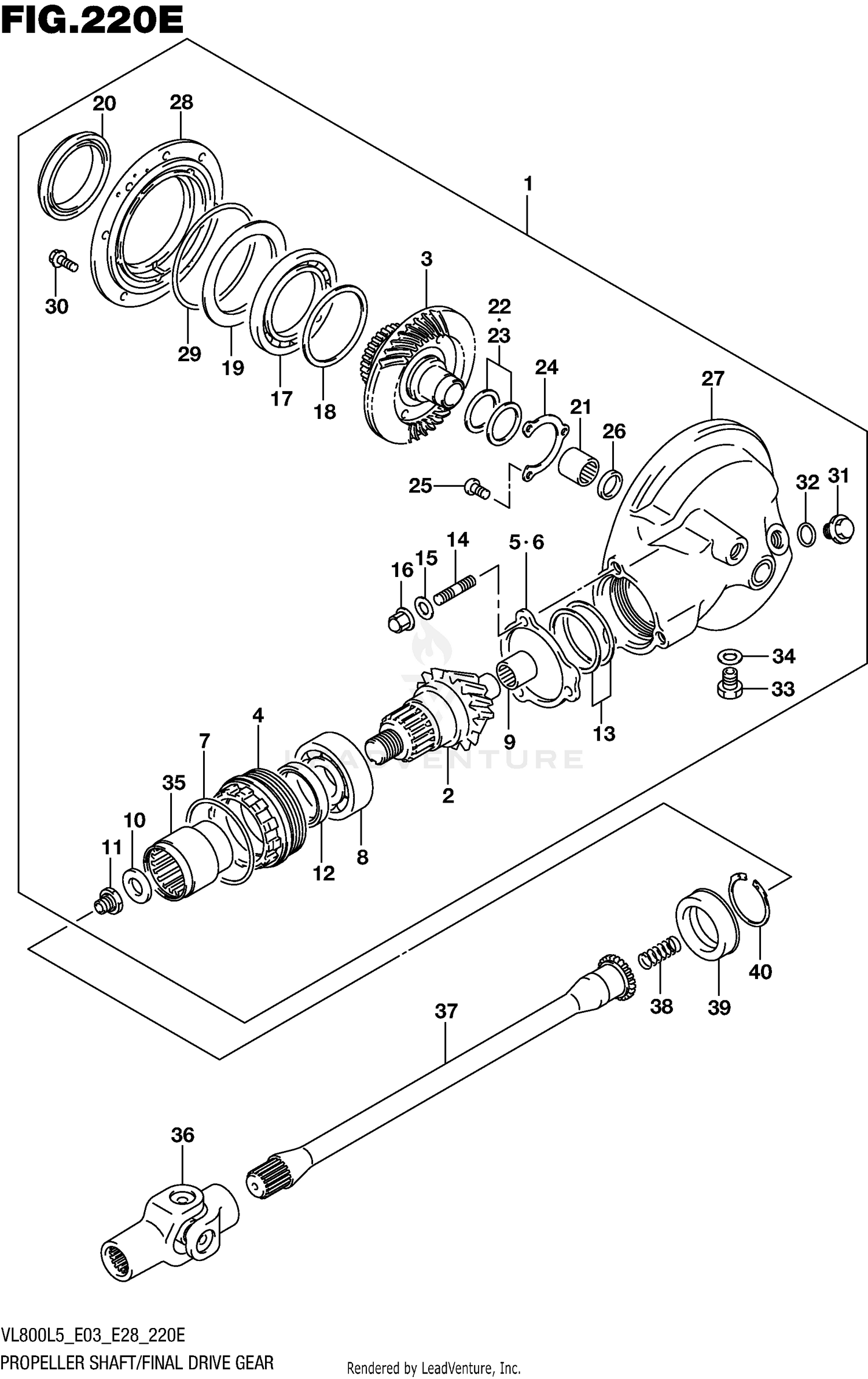

Propeller Shaft/final Drive Gear (vl800tl5 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR & CASE SET, FINAL BEVEL (SILVER)
27301-38840-13L
|
$1,865.67 | ||
|
Unavailable |
|||
|
#2
GEAR, FINAL DRIVE BEVEL (NT:11)
27311-38A00
|
$318.85 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, FINAL DRIVEN BEVEL (NT:34)
27320-45C01
|
$495.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
STOPPER, BEARING
27312-38A00
|
$78.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE
27313-38A00
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE
27313-38A10
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#7
.O RING (D:1.9,ID:61.6)
09280-62002
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING (30X62X23.8)
09267-30005
|
$125.53 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING (17X32X16)
09263-17028
|
$51.23 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER (16X29X4)
09160-16029
|
$6.68 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
09159-16010
|
$12.18 | ||
|
Available to order. Add to View Price |
|||
|
#12
OIL SEAL (38X54X6)
09283-38009
|
$17.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SHIM SET, FINAL
27445-38810
|
$30.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
STUD BOLT
09108-10095
|
$6.01 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
09164-10008
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
09159-10026
|
$7.66 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING (70X110X13)
09262-70001
|
$148.00 | ||
|
Available to order. Add to View Price |
|||
|
#18
SHIM SET, DRIVE GEAR BEARING
27327-34810
|
$41.54 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE
27328-34200
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#20
.OIL SEAL (70X96X16)
09289-70001
|
$63.04 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING (32X46X17.7)
09263-32007
|
$85.14 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM SET, FINAL DRIVE GEAR
27326-34820
|
$22.60 | ||
|
Available to order. Add to View Price |
|||
|
#23
SHIM SET, FINAL DRIVE GEAR
27326-34810
|
$14.00 | ||
|
Available to order. Add to View Price |
|||
|
#24
RETAINER, BEARING
27329-34200
|
$7.95 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW (6X12)
09125-06122
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#26
.OIL SEAL (30X42X7)
09283-30028
|
$11.86 | ||
|
Available to order. Add to View Price |
|||
|
#27
CASE, FINAL GEAR
27450-38A70-20H
Superseded by 27450-38A20
|
$663.23 | ||
|
Unavailable |
|||
|
#28
CASE, FINAL GEAR BEARING
27460-07A01
|
$187.22 | ||
|
Available to order. Add to View Price |
|||
|
#29
.O RING (D:3.5,ID:131.6)
09280-00015
|
$11.42 | ||
|
Available to order. Add to View Price |
|||
|
#30
.BOLT
01550-0825A
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#31
PLUG
09247-18001
|
$9.28 | ||
|
Available to order. Add to View Price |
|||
|
#32
O-RING (D:2.4,ID:17.8)
09280-18004
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#33
PLUG (MAGNETO)
09247-14002
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#34
.GASKET (13.8X18.8X4.8)
09168-14002
|
$2.75 | ||
|
Unavailable |
|||
|
#35
COUPLING, PROPELLER SHAFT
27172-38A00
|
$65.52 | ||
|
Available to order. Add to View Price |
|||
|
#36
YOKE, UNIVERSAL JOINT
27100-38A60
|
$372.53 | ||
|
Available to order. Add to View Price |
|||
|
#37
SHAFT, PROPELLER
27151-41F00
|
$233.60 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING
09440-18019
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#39
OIL SEAL (28.4X48X15)
09283-30051
|
$12.77 | ||
|
Available to order. Add to View Price |
|||
|
#40
CIRCLIP
09381-40003
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
