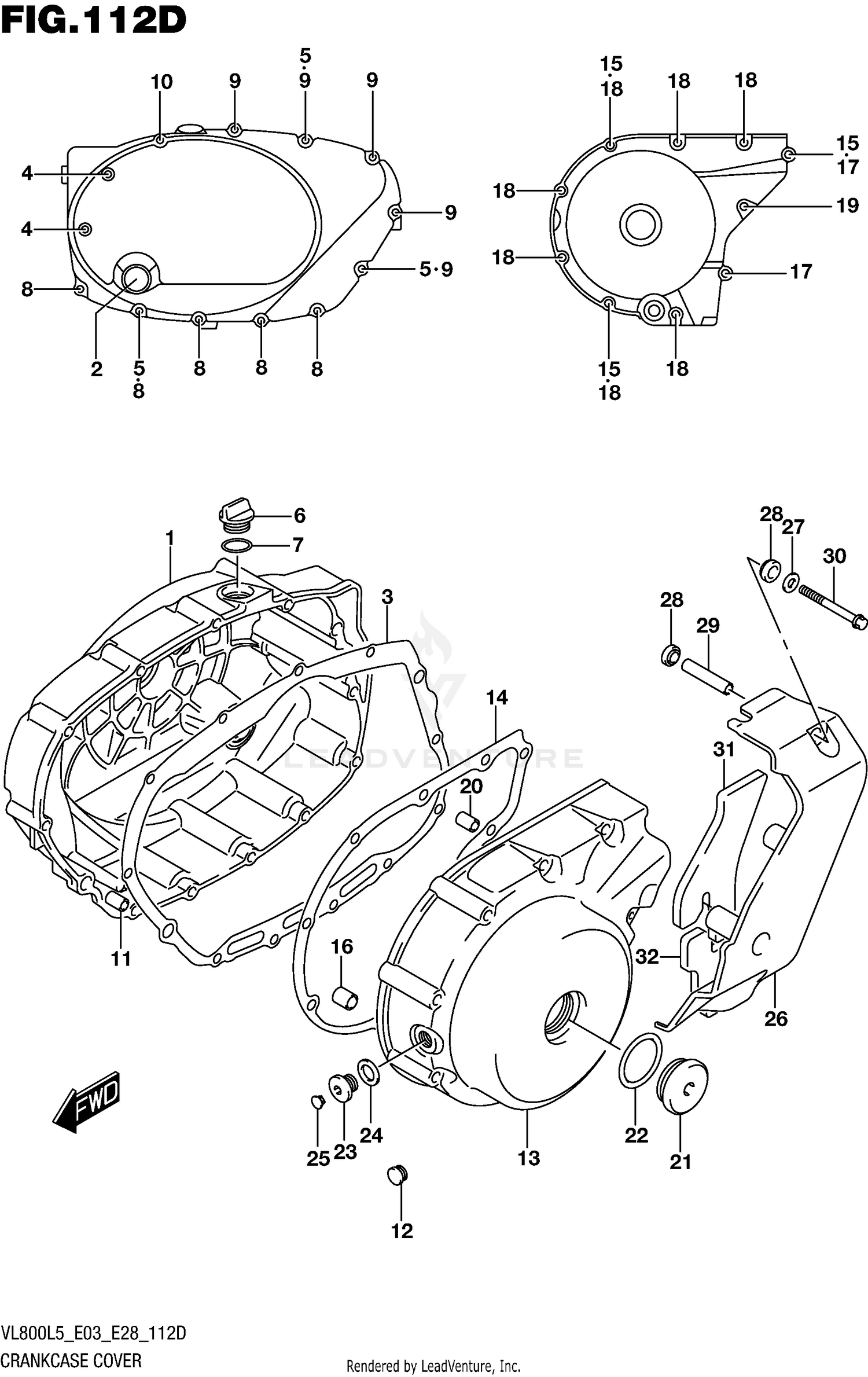

Crankcase Cover (vl800tl5 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CLUTCH
11340-41F00
|
$455.93 | ||
|
Available to order. Add to View Price |
|||
|
#2
.LENS, OIL LEVEL CHECK
11971-33210
|
$23.50 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET,CLUTCH COVER
11482-41F00
|
$22.12 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (6X105)
09103-06270
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET (5.8X13X1.2)
09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
PLUG,ENGINE OIL FILLER
11971-25D00
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
O RING (D:3.1,ID:16.8)
09280-17003
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT (6X30)
09103-06213
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (6X50)
09103-06238
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (6X85)
09103-06226
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN
04211-09189
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP (OD:12)
09250-08013
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, GENERATOR
11351-41F10
|
$437.41 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET,GENERATOR COVER
11483-41F00
|
$18.34 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET (5.8X13X1.2)
09168-06023
|
$2.53 | ||
|
Unavailable |
|||
|
#16
PIN (8.4X11X20)
09206-11007
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT (6X40)
09103-06215
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT (6X55)
09103-06216
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT (6X85)
09103-06226
|
$4.19 | ||
|
Unavailable |
|||
|
#20
PIN
04211-09189
|
$2.05 | ||
|
Unavailable |
|||
|
#21
PLUG (36X10)
09259-36008
|
$14.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
O RING
09280-33004
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
PLUG, SHAFT
09248-14012
Superseded by 09248-14011
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#24
.GASKET (13.8X18.8X4.8)
09168-14002
|
$2.83 | ||
|
Unavailable |
|||
|
#25
CAP (OD:12)
09250-08012
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#26
COVER, SECONDARY DRIVE
11361-41F00
|
$251.30 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER (6.5X14X1.6)
09160-06125
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER (8.7X16X5)
09161-09005
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPACER (6.5X9X41.3)
09180-06280
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT (6X55)
09103-06216
|
$3.33 | ||
|
Unavailable |
|||
|
#31
CUSHION, SEC DRIVE COVER NO.1
11362-39G00
|
$16.93 | ||
|
Available to order. Add to View Price |
|||
|
#32
CUSHION, SEC DRIVE COVER NO.2
11363-39G00
|
$11.95 | ||
|
Available to order. Add to View Price |
|||
