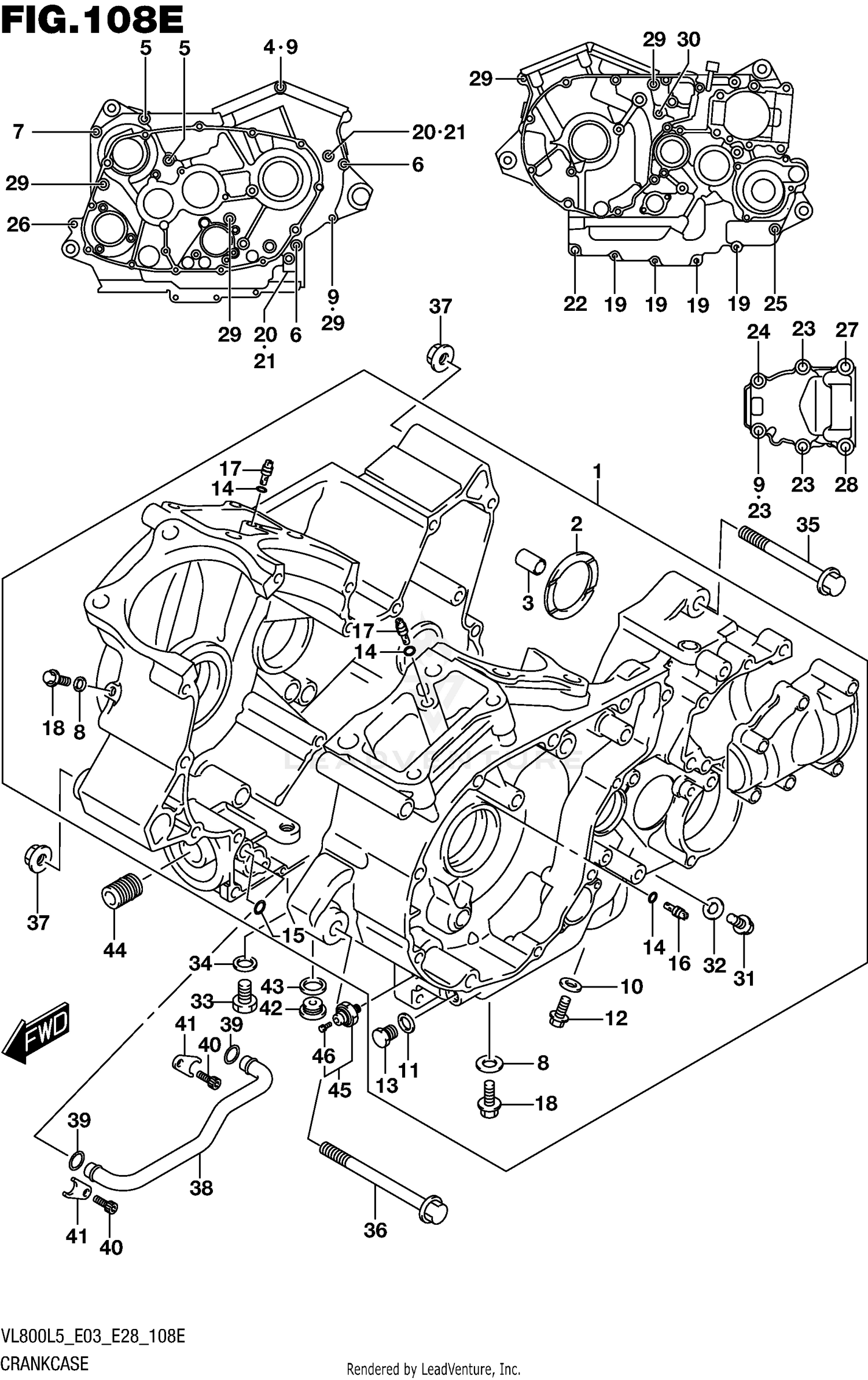

Crankcase (vl800tl5 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET
11302-39830
|
$2,919.46 | ||
|
Available to order. Add to View Price |
|||
|
#2
.WASHER (T:1.94)
09160-48001
|
$29.92 | ||
|
Available to order. Add to View Price |
|||
|
#2
.WASHER (T:1.96)
09160-48002
|
$19.70 | ||
|
Unavailable |
|||
|
#2
.WASHER (T:1.99)
09160-48003
|
$26.92 | ||
|
Available to order. Add to View Price |
|||
|
#2
.WASHER (T:2.01)
09160-48004
|
$20.10 | ||
|
Unavailable |
|||
|
#2
.WASHER (T:2.04)
09160-48005
|
$19.70 | ||
|
Unavailable |
|||
|
#2
.WASHER (T:2.06)
09160-48006
|
$33.00 | ||
|
Available to order. Add to View Price |
|||
|
#2
.WASHER (T:2.09)
09160-48007
|
$26.26 | ||
|
Available to order. Add to View Price |
|||
|
#2
.WASHER (T:2.11)
09160-48008
|
$24.15 | ||
|
Available to order. Add to View Price |
|||
|
#2
.WASHER (T:2.14)
09160-48009
|
$20.10 | ||
|
Unavailable |
|||
|
#2
.WASHER (T:2.16)
09160-48010
|
$33.00 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN (8.4X11X20)
09206-11007
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (8X160)
09103-08405
|
$6.54 | ||
|
Unavailable |
|||
|
#5
BOLT (8X120)
09103-08406
|
$2.48 | ||
|
Unavailable |
|||
|
#6
BOLT (8X105)
09103-08179
|
$6.33 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT (8X95)
09103-08164
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET (5.8X13X1.2)
09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
GASKET (8.2X14X1)
09168-08016
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET (10X14X3.6)
09168-10002
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
.GASKET (13.8X18.8X4.8)
09168-14002
|
$2.83 | ||
|
Unavailable |
|||
|
#12
PLUG (10X12)
09247-10008
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
.PLUG (14X12)
09247-14026
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#14
O RING (D:1.2,ID:4)
09280-04004
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
O RING (D:1.9,ID:12.6)
09280-12009
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
JET, OIL GALLERY
09493-20014
|
$18.34 | ||
|
Available to order. Add to View Price |
|||
|
#17
JET AIR (#14)
09493-28010
|
$18.01 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
01550-0610A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
01547-0640A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT (8X12)
01550-0812A
|
$2.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
GASKET (8.2X14X1)
09168-08016
|
$2.05 | ||
|
Unavailable |
|||
|
#22
BOLT
01550-0835A
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
01550-0840A
|
$3.83 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
01550-0850A
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
01550-0855A
|
$3.91 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BOLT
01550-0860A
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT
01550-0855A
|
$3.91 | ||
|
Unavailable |
|||
|
#28
BOLT
01550-0865A
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT (8X95)
09103-08105
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT
01550-0875A
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT (8X12)
09103-08407
|
$1.94 | ||
|
Unavailable |
|||
|
#32
GASKET (8.2X14X1)
09168-08016
|
$2.05 | ||
|
Unavailable |
|||
|
#33
PLUG (12X20)
09247-12011
|
$5.83 | ||
|
Available to order. Add to View Price |
|||
|
#34
GASKET (12.1X16.2X3.7)
09168-12002
|
$1.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
BOLT (10X135)
09103-10706
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT (10X160)
09103-10705
|
$13.47 | ||
|
Available to order. Add to View Price |
|||
|
#37
NUT
09159-10113
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#38
PIPE, OIL GALLERY
11451-38A00
|
$21.23 | ||
|
Available to order. Add to View Price |
|||
|
#39
O RING (D:3.1,ID:14.8)
09280-15008
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT (6X12)
09106-06075
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#41
CLAMP
11461-38A00
|
$1.50 | ||
|
Unavailable |
|||
|
#42
PLUG
09248-16013
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#43
GASKET (16X22X2)
09168-16002
|
$2.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
UNION,OIL STAND
16591-06B01
|
$9.09 | ||
|
Available to order. Add to View Price |
|||
|
#45
SWITCH ASSY,OIL PRESSURE
37820-33D10
Superseded by 37820-33D11
|
$27.59 | ||
|
Unavailable |
|||
|
#46
.BOLT,OIL PRESSURE SWITCH
37822-33D00
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
