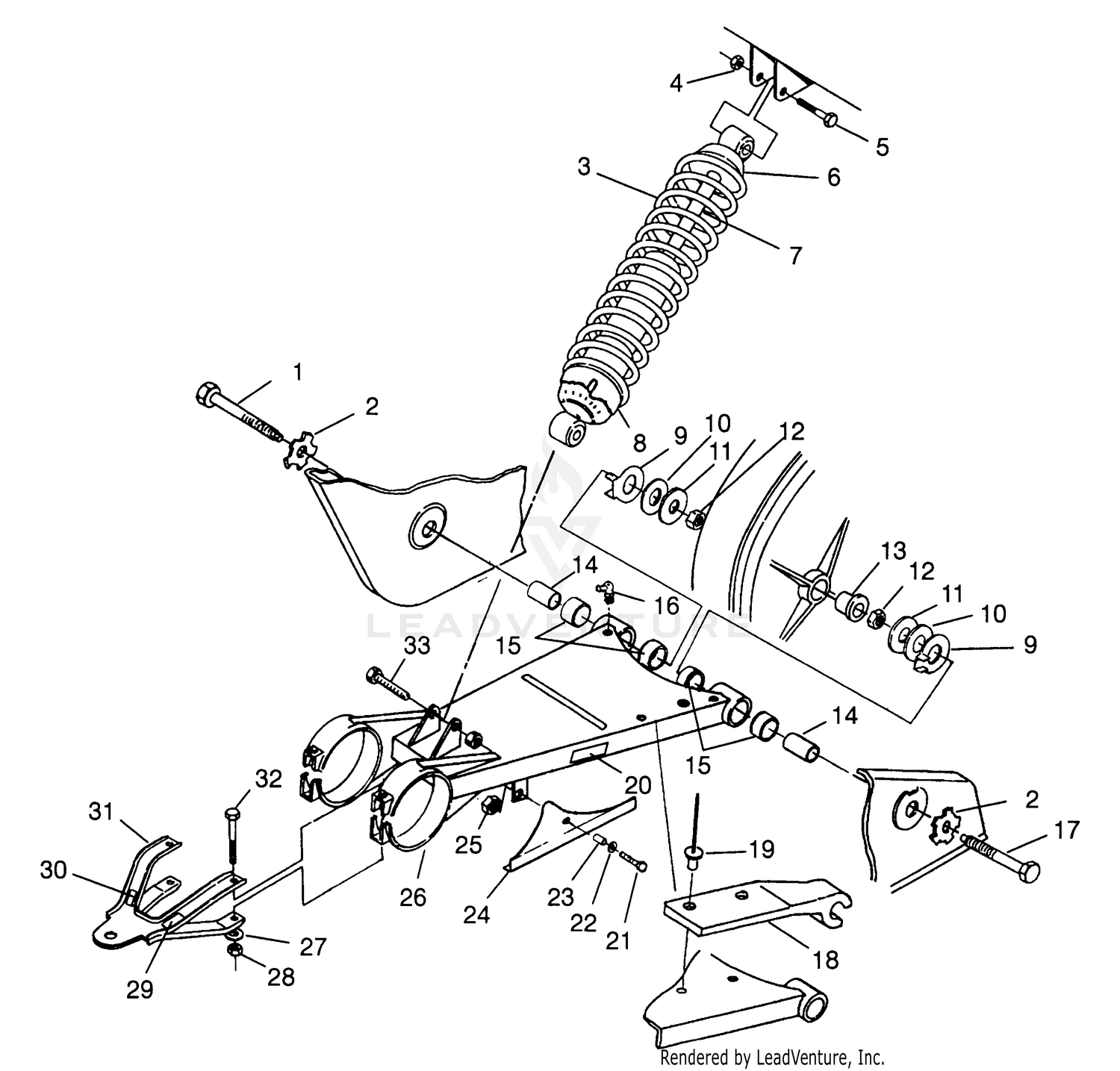

Swing Arm/shock Mounting Xplorer 400l W969140 (4935983598c001) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT, SHOULDER
7512701
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE,BOLT LOCK
5220958
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING,COMP,REAR
7041204-067
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT-LOCK(10)
7542439
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
BOLT(10)
7515415
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
RETAINER-SPRING,STEEL
5241147
Superseded by 5251753
|
$12.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
SHOCK,REAR
7041447
|
$133.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAM,ADJUST,SPRING
5630551
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSHING
5240952
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSHING-THRUST
5431977
Superseded by 5433414
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER(10)
7555911
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
NUT, LOCK(10)
7542602
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
Bushing, Pivot
-------
|
|||
|
Unavailable |
|||
|
#14
BUSHING,SWING ARM
5020793
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BUSHING-SWINGARM
5431972
Superseded by 5433417
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
FITTING, LUBE.
7080438
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, SHOULDER
7512702
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GUIDE, CHAIN
5431310
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
RIVET(50)
7621433
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
DECAL,LUBRICATION
7074214
|
|||
|
Unavailable |
|||
|
#21
SCREW-FLANGED(10)
7515304
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
WASHER-.344X.688X.063 FL-Y
7558402
|
$0.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BUSHING
5332828
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
GUARD, CHAIN
5430776
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT LOCK(10)
7542321
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
ARM ASM,SWING
1580090
|
|||
|
Unavailable |
|||
|
#27
WASHER(10)
7555883
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
NUT, LOCK,(10)
7542503
|
$12.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
DECAL,CHAIN FREE PLAY
7074752
|
|||
|
Unavailable |
|||
|
#30
DECAL, HITCH Substituted by 7078261
7072533
|
|||
|
Unavailable |
|||
|
#31
Kit, Hitch
2200472
Superseded by 2873036
|
$36.99 | ||
|
Unavailable |
|||
|
#32
BOLT(10)
7512576
|
$9.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
BOLT(10)
7515438
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
