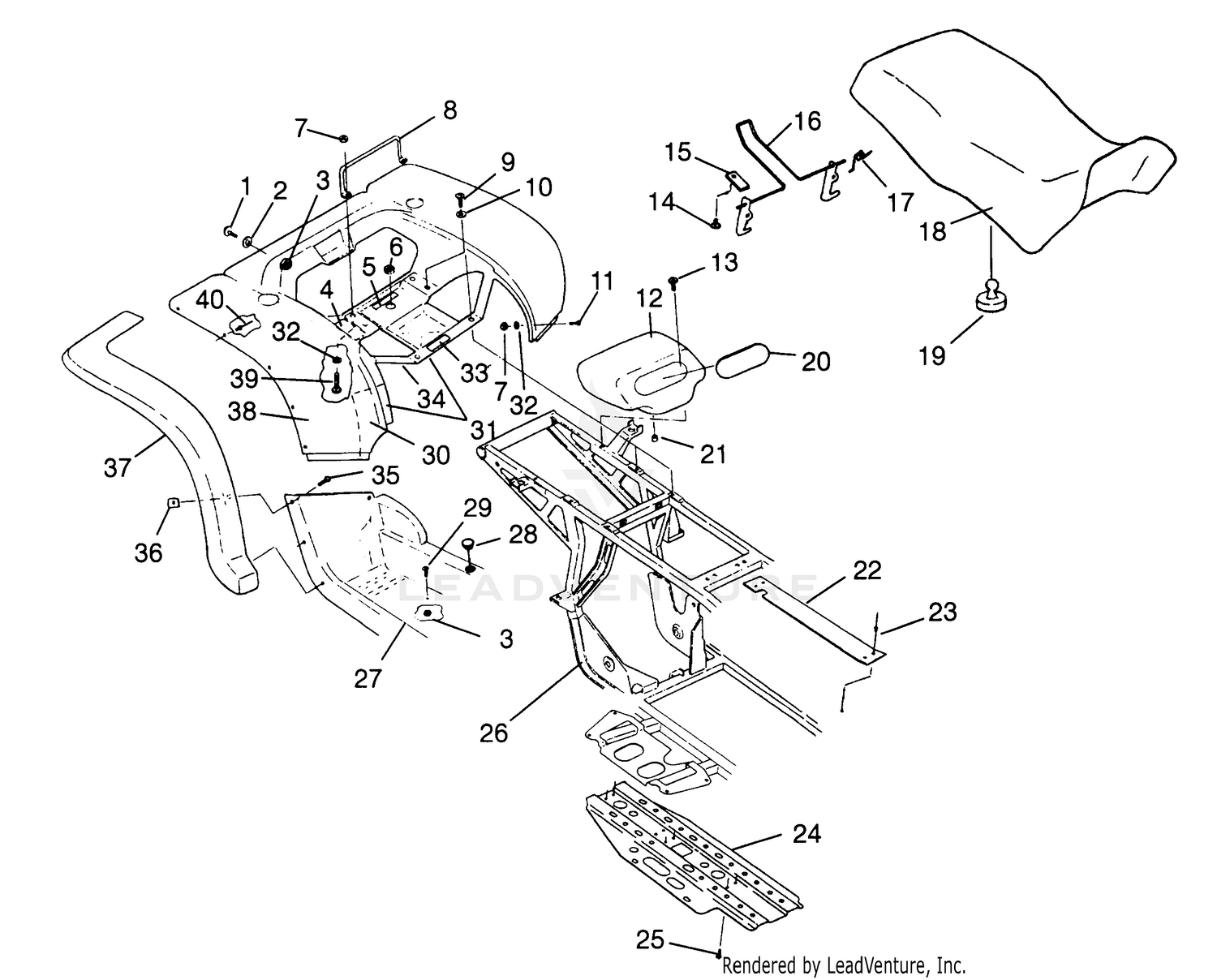

Rear Cab And Seat Xplorer 400l W969140 (4935983598a006) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT(10)
7512261
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Washer, Flat
7555776
Superseded by 7558301
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
NUT-LOCK(10)
7542122
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
FOIL,REAR CAB,REAR
5811107
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
DECAL,CARB.INFO.
7073761
|
|||
|
Unavailable |
|||
|
#6
GROMMET
5411042
Superseded by 5412507
|
$7.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
NUT(10)
7541925
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
RETAINER,SEAT LATCH
5224592
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW(10)
7515180
|
|||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, FLAT(10)
7555859
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SCREW, MACH, PAN HEAD PHIL
7512085
Superseded by 7519641
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
TOOLBOX
5431786
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT(10)
7512246
|
|||
|
Unavailable |
|||
|
#14
BLIND RIVET(50)
7621403
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BRACKET,LEVER RETAINER
5211033
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
LATCH,SEAT
1040387
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, LATCH
7041370
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Asm., Seat, Black
2681746-070
Superseded by 2683222-070
|
$549.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Asm., Seat Cover w/White Decal
2681747-070
Superseded by 2684055
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
FOIL,SEATBASE,LG.
5811104
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
FOIL,SEATBASE,SM.
5811105
|
$12.39 | ||
|
Available to order. Add to View Price |
|||
|
#19
BUMPER, RUBBER
5410414
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, TOOLBOX
5431787
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
CAP,DRAIN
5410896
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GUARD-CLUTCH, BLK
5241403-067
|
|||
|
Unavailable |
|||
|
#23
RIVET,INTERLOCK,B(50)
7661638
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
GUARD,ROCK,BLK.
5240560-067
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT(10)
7512232
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
FRAME,MAIN,(400 4X4),BLK
1040505-067
|
|||
|
Unavailable |
|||
|
#27
FOOTWELL,LH,BLK,NYLON
5432056-070
Superseded by 5432221-070
|
$284.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
FOOTWELL,RH,BLK.NYLON
5432374-070
|
|||
|
Unavailable |
|||
|
#28
PLUG, HOLE
5411009
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW(10)
7512279
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
FOIL FOAM
5811111
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
FOIL,FR,REAR CAB
5811106
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER(10)
7555792
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
DECAL,FILTER ELEMENT [No Longer Available]
7072791
|
|||
|
Unavailable |
|||
|
#34
FOIL-FOAM,(6X1)
5811087
|
|||
|
Available to order. Add to View Price |
|||
|
#35
SCREW(10)
7522026
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT, SPEED(10)
7670057
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
GUARD-MUD,REAR,LH,BLK
5431796
Superseded by 5431796-070
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
GUARD-MUD,REAR,RH,BLK
5431797
Superseded by 5431797-070
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
CAB,REAR,GEN IV,P.RED
5432663-136
|
|||
|
Unavailable |
|||
|
#39
SCREW(10)
7511930
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
RIVET(50)
7661645
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
