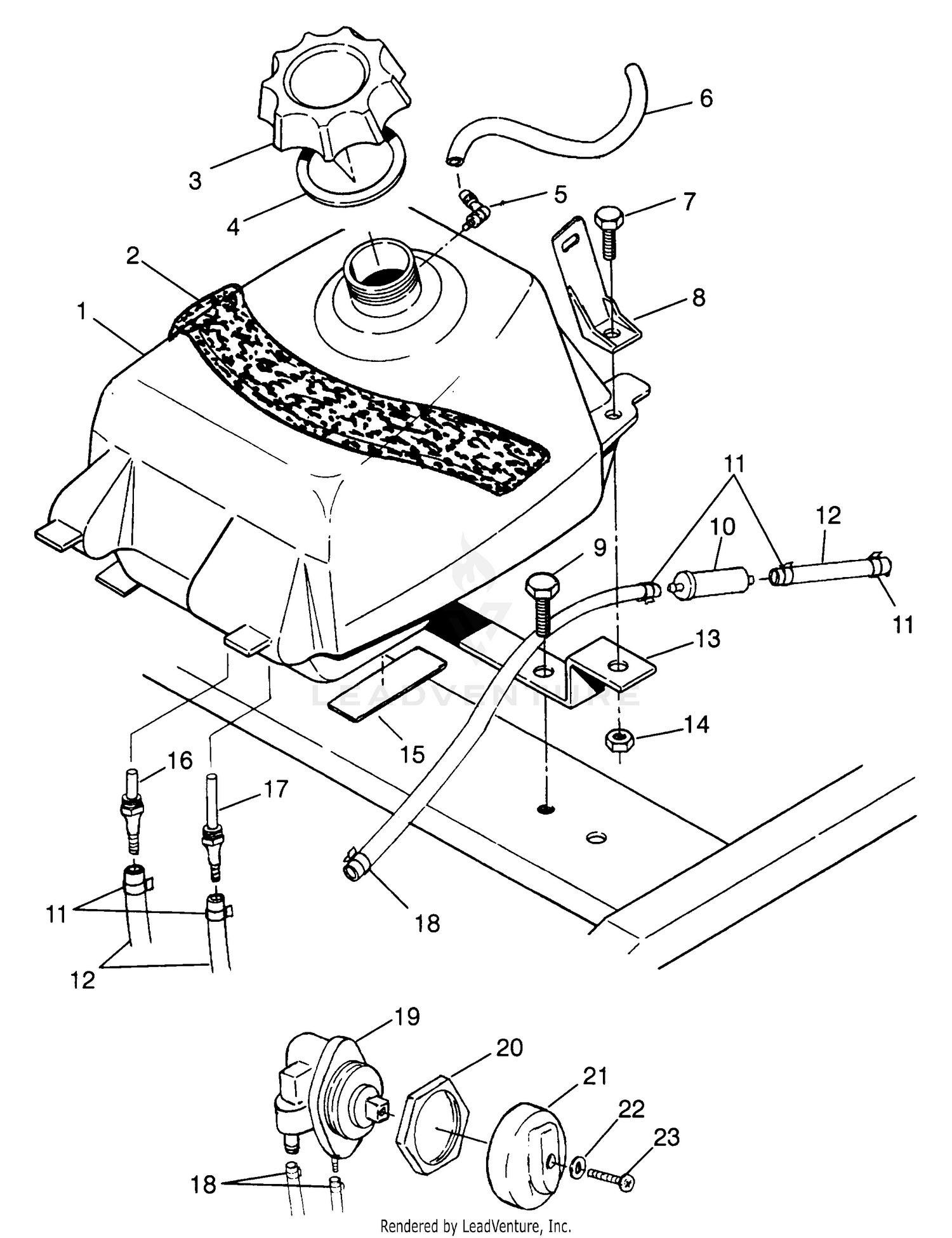

Fuel Tank Xplorer 400l W969140 (4935983598a013) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK, FUEL
2511244
|
|||
|
Unavailable |
|||
|
#2
FOAM, SEAL
5811052
|
|||
|
Unavailable |
|||
|
#3
CAP, GAS, (BLACK)
5430725
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET-GAS CAP
5810144
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
VENT, TANK
5431053
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
FUEL LINE,1/8 ID,600 CM.
8360009-600
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW(10)
7512310
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Bracket, Fuel Cover Mount, LH
5222154-067
Superseded by 5222154
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Bracket, Fuel Cover Mount, RH
5222155-067
Superseded by 5222155
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT(10)
7512232
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
FILTER,SMALL,IN-LINE,(10)
2530009
|
$7.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
HOSE CLAMP, RED
7080003
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
FUEL LINE,1/4 ID(600 CM.)
8450040-600
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRKT,R.TANK MT,BLK.
5220916-067
|
|||
|
Unavailable |
|||
|
#14
NUT-5/16-18 NYLOK-Y
7542324
|
$0.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
PAD,BULK FUEL
8360026
|
|||
|
Available to order. Add to View Price |
|||
|
#16
FITTING,FUEL OUT,RES.,Z
7052149
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
FITTING,FUEL OUT,MAIN,Y
7052146
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP, HOSE, S.S.(10)
7080476
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
VALVE, CHECK
7052063
|
|||
|
Available to order. Add to View Price |
|||
|
#20
NUT, FUEL VALVE
5431451
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
KNOB,FUEL VALVE Substituted by 5432559
5431807
|
|||
|
Unavailable |
|||
|
#22
WASHER, FLAT, S.S.(10)
7555840
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, S.S.(10)
7516302
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
