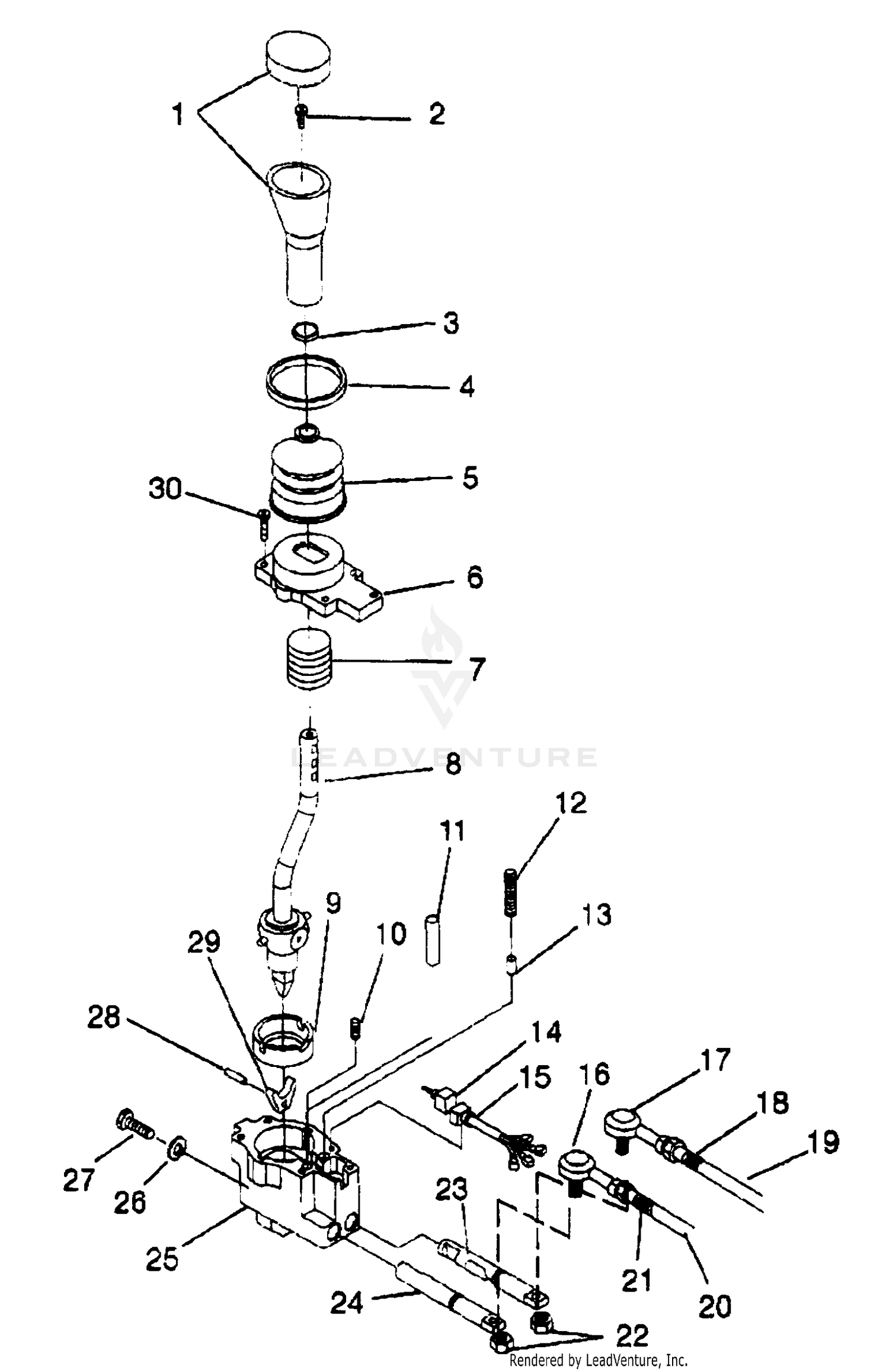

Gear Selector Xplorer 400l W969140 (4935983598c009) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
SELECTOR ASM,GEAR
1341182
|
|||
|
Available to order. Add to View Price |
|||
|
#1
GEAR SELECT KNOB,HLR,BLACK,ASM.
3233195
Superseded by 3233195-070
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW,(10)
7512024
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
STRAP, WIRE
3233131
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP
3233132
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOOT,GEAR SELECTOR
3233368
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER,GEAR SELECTOR
3233213
|
|||
|
Unavailable |
|||
|
#7
SPRING,HOLDING
3233158
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
HANDLE SUBASM,(GS GEN IV)
3233197
|
|||
|
Unavailable |
|||
|
#9
CUP,BEARING
3233063
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING,CENTERING
3233083
|
|||
|
Available to order. Add to View Price |
|||
|
#11
PIN, STOP
3233062
|
$13.39 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING,DETENT
3233069
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#13
BULLET,DETENT
3233060
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SWITCH,GEAR SELECTOR
3233223
|
$159.99 | ||
|
Unavailable |
|||
|
#15
STRAP, WIRE
3233090
|
|||
|
Available to order. Add to View Price |
|||
|
#16
ROD END,RH,6MM.
7061014
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
ROD END,LH,6MM.
7061013
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT(10)
7546702
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
ROD,LOW-RA.SHIFTLINK
5020730
|
|||
|
Available to order. Add to View Price |
|||
|
#20
ROD,HI-RA.SHIFTLINK
5020729
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT(10)
7546701
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
NUT-6MM X 1 NYLOK-Z
7546707
Superseded by 7546703
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SLIDE ASM,HIGH/REV
3233217
|
|||
|
Unavailable |
|||
|
#24
SLIDE ASM,LOW
3233218
|
|||
|
Unavailable |
|||
|
#25
BODY,GEAR SELECTOR
3233216
|
|||
|
Unavailable |
|||
|
#26
WASHER(10)
7552605
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT(10)
7512269
|
|||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
PIN,INTERLOCK
3233070
|
|||
|
Unavailable |
|||
|
#29
INTERLOCK,BUTTERFLY
3233084
|
|||
|
Unavailable |
|||
|
#30
SCREW,MAGNIGARD COATED
3233085
Superseded by 3233498
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
