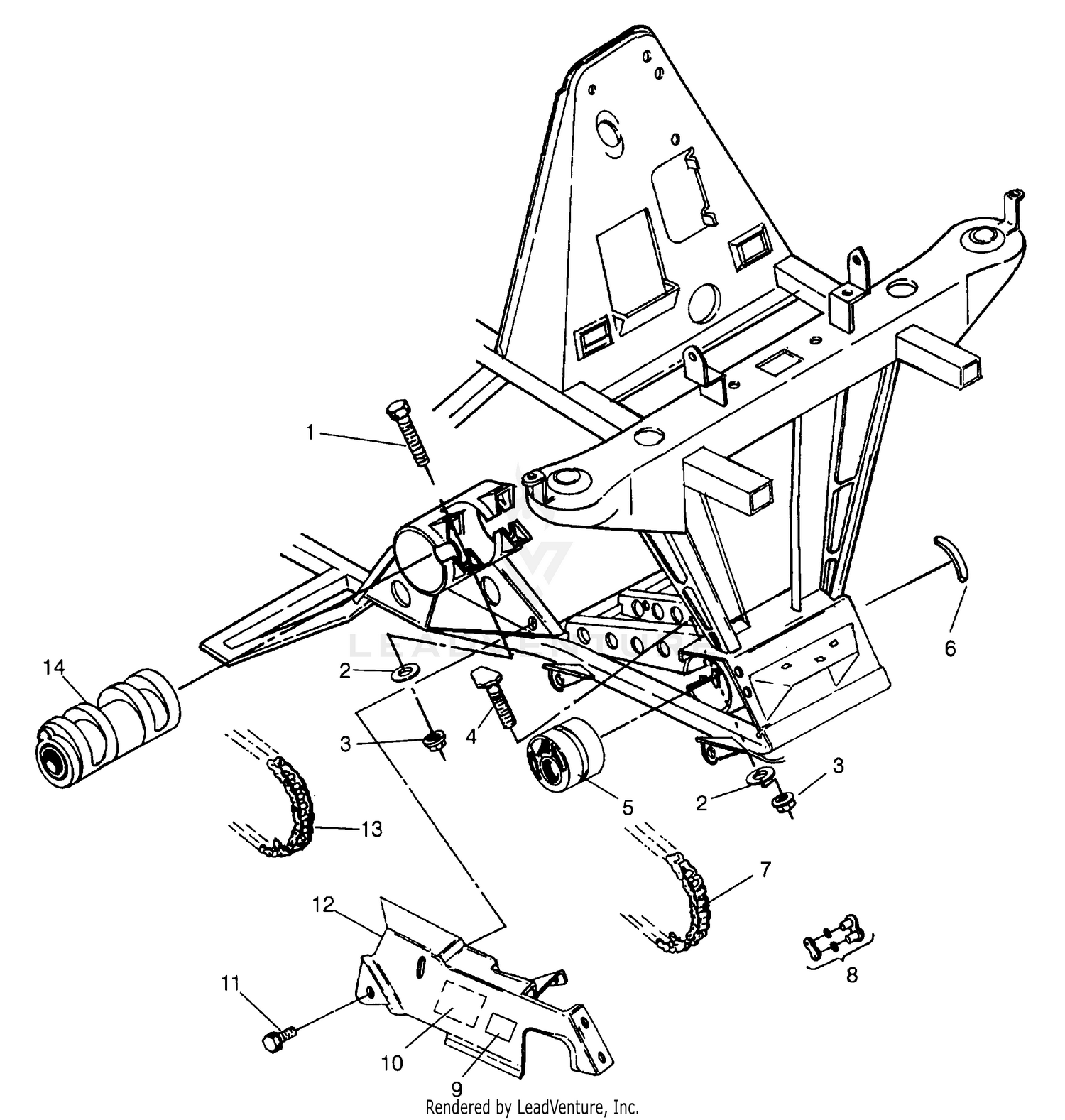

Front Drive Xplorer 400l W969140 (4935983598b002) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT(10)
7512583
|
|||
|
Unavailable |
|||
|
#2
WASHER(10)
7555883
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
NUT, LOCK,(10)
7542503
|
$12.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
BOLT, FLAG(10)
7512577
|
|||
|
Unavailable |
|||
|
#5
Asm., Front Tightener
-------
|
|||
|
Unavailable |
|||
|
#6
SPACER,F.ECCENTRIC Substituted by 5811519
5431095
|
|||
|
Unavailable |
|||
|
#7
CHAIN-520 ORD4,O-RING,64 PITCH
3224041
Superseded by 3221193-064
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CONNECTOR LINK
3225024
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
DECAL,FR.CHAIN TENSION
7074956
|
|||
|
Unavailable |
|||
|
#10
TAPE,FOIL,PAN#3
5810493
|
|||
|
Available to order. Add to View Price |
|||
|
#11
BOLT(10)
7512232
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
GUARD,CHAIN,FRONT
5431472
|
|||
|
Available to order. Add to View Price |
|||
|
#13
CHAIN-520 ORD4,O-RING,70 PITCH
3224044
Superseded by 3221193-070
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Asm., Center Tightener
-------
|
|||
|
Unavailable |
|||
