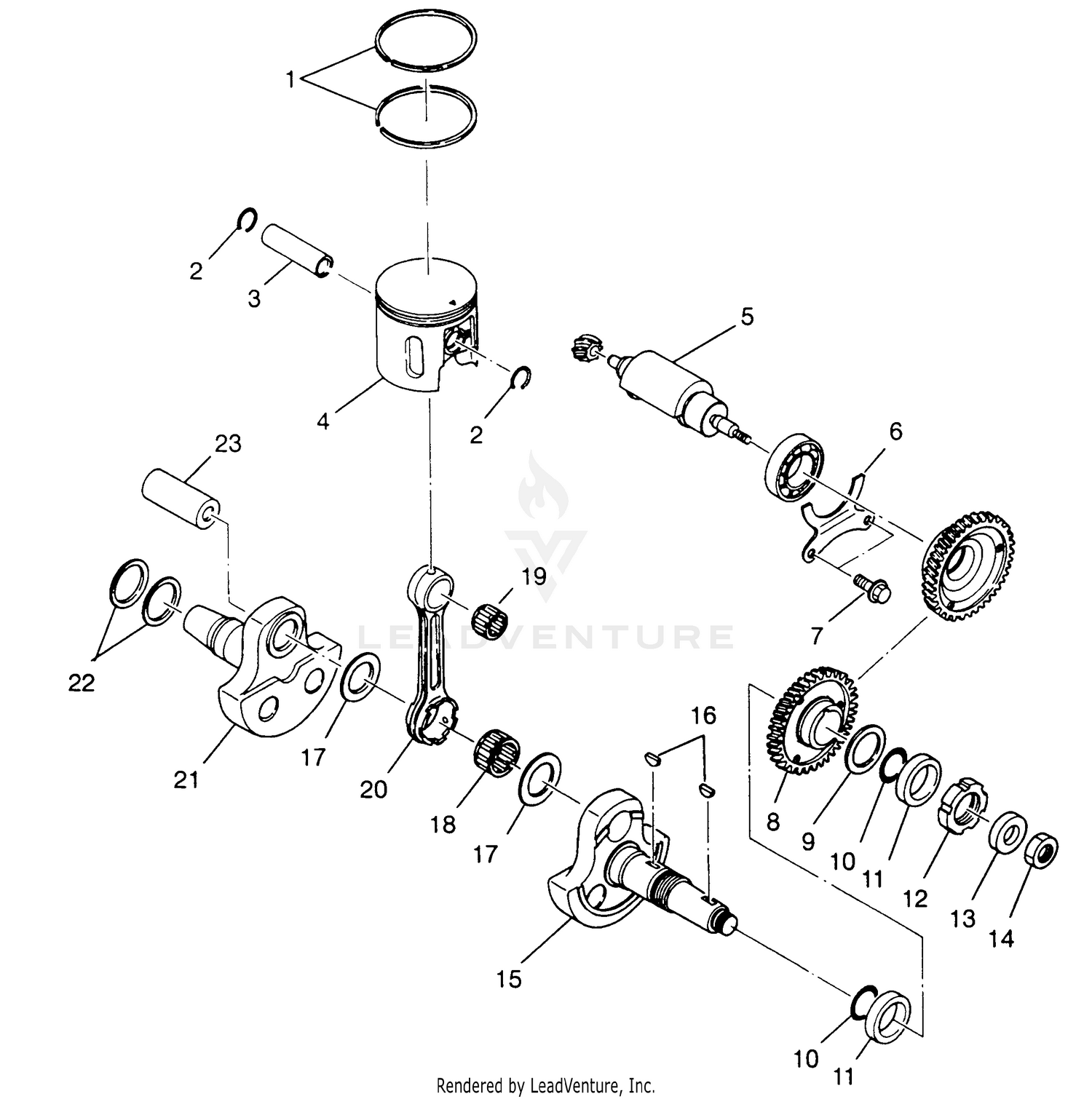

Piston And Crankshaft Xplorer 400l W969140 (4935983598c012) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
RING,PISTON,(.50MM O/S)
3084739
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
RING,PISTON,(.25MM O/S) *
3084738
|
$39.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1
RING,PISTON,STD.
3084737
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLIP,(10)
3084167
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, PISTON
3083838
|
$34.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
PISTON,STD.
3084734
|
|||
|
Available to order. Add to View Price |
|||
|
#4
PISTON,(.25MM O/S)
3084735
|
|||
|
Available to order. Add to View Price |
|||
|
#4
PISTON,(.50MM O/S)
3084736
|
|||
|
Available to order. Add to View Price |
|||
|
#5
BALANCER Substituted by 3087042
3084172
|
|||
|
Unavailable |
|||
|
#6
PLATE
3084173
Superseded by 3086768
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT,FLANGE [No Longer Available]
3084174
Superseded by 3086769
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, DRIVE *
3084156
|
$138.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER-GUIDE
3084159
Superseded by 3086764
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
O RING
3084160
|
|||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR Substituted by 3086763
3084158
|
|||
|
Unavailable |
|||
|
#12
NUT,SLIT
3084157
Superseded by 3086762
|
$29.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER
3083904
Superseded by 3086767
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
LOCKNUT
3083905
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CRANKSHAFT #1,MAG SIDE
3084149
|
$216.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CRANKSHAFT ASM. *
3084776
|
$884.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Key
3080130
Superseded by 3081543
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER, CRANK PIN
3084155
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING, LARGE END
3084154
|
$31.99 | ||
|
Unavailable |
|||
|
#19
BEARING, SMALL END
3084168
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
ROD, CONNECTING
3084153
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CRANKSHAFT #2,PTO SIDE
3084777
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPACER-1
3084778
Superseded by 3086765
|
$6.29 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPACER-2
3084779
Superseded by 3086766
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, CRANK #1
3084152
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
