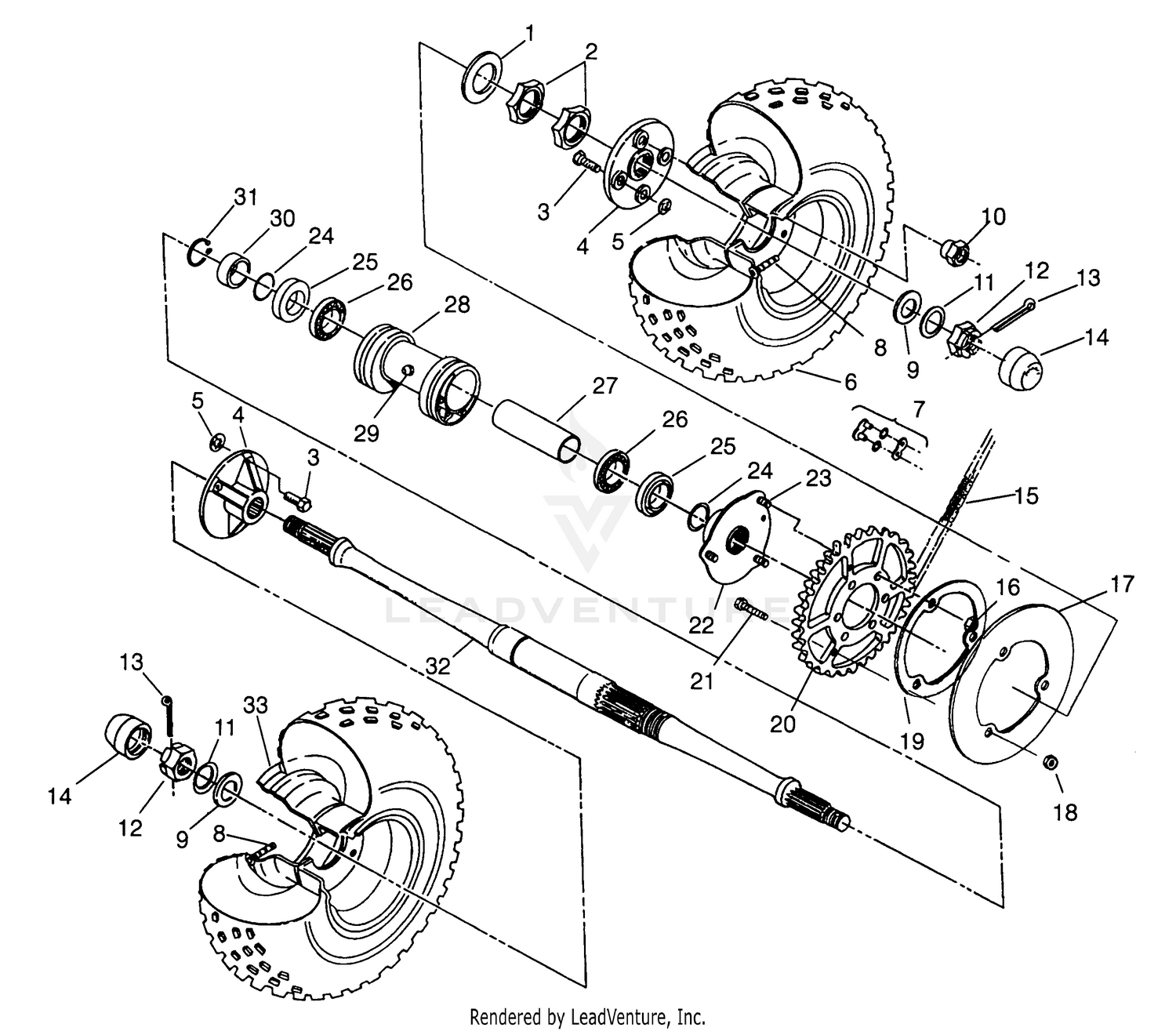

Rear Wheel Drive Xplorer 400l W969140 (4935983598c007) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WASHER(10)
7555764
|
$2.99 | ||
|
Unavailable |
|||
|
#2
NUT, JAM
5020468
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, WHEEL(10)
7512673
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
KIT, MACH.HUB
2200341
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PUSHNUT, BOLT(10)
7670081
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
TIRE,R(25X12-10) Substituted by 5411408
5410566
|
|||
|
Unavailable |
|||
|
#7
CONNECTOR LINK
3225024
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
VALVE-RIM
1525017
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER(10)
7555745
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, WHEEL(10)
7542714
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, CONE(10)
7555796
|
$9.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
NUT, CASTLE(10)
7543005
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, COTTER(10)
7661404
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
Cover, Dust
5411164
Superseded by 5413427
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CHAIN-520 ORD4,O-RING,84 PTCH
3224047
Superseded by 3221193-084
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT LOCK(10)
7542403
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
GUARD,SPKT,34T
5211617-067
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT-LOCK(10)
7542439
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SPACER-SPROCKET GUARD
5630586
|
|||
|
Unavailable |
|||
|
#20
SPROCKET,34T,(ATV)
3222068
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT(10)
7515540
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPROCKET HUB ASM.
1520170
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
STUD(10)
7515513
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
O RING, 1 5/16(10)
5410415
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
SEAL, REAR AXLE
3610013
|
$19.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BEARING, BALL
3515501
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
NOT AVAILABLE
5010204
Superseded by 9999999
|
|||
|
Available to order. Add to View Price |
|||
|
#28
HOUSING, AXLE
5130663
|
$97.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
FITTING,LUBE.W/BALL CK.(10)
7080306
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
SPACER,BEARING
5010206
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
RING, SNAP(10)
7710405
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
AXLE, REAR
5020789
|
$249.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
Rim, Rear, Silver
1520183-117
Superseded by 1520183-486
|
$114.49 | ||
|
Unavailable |
|||
