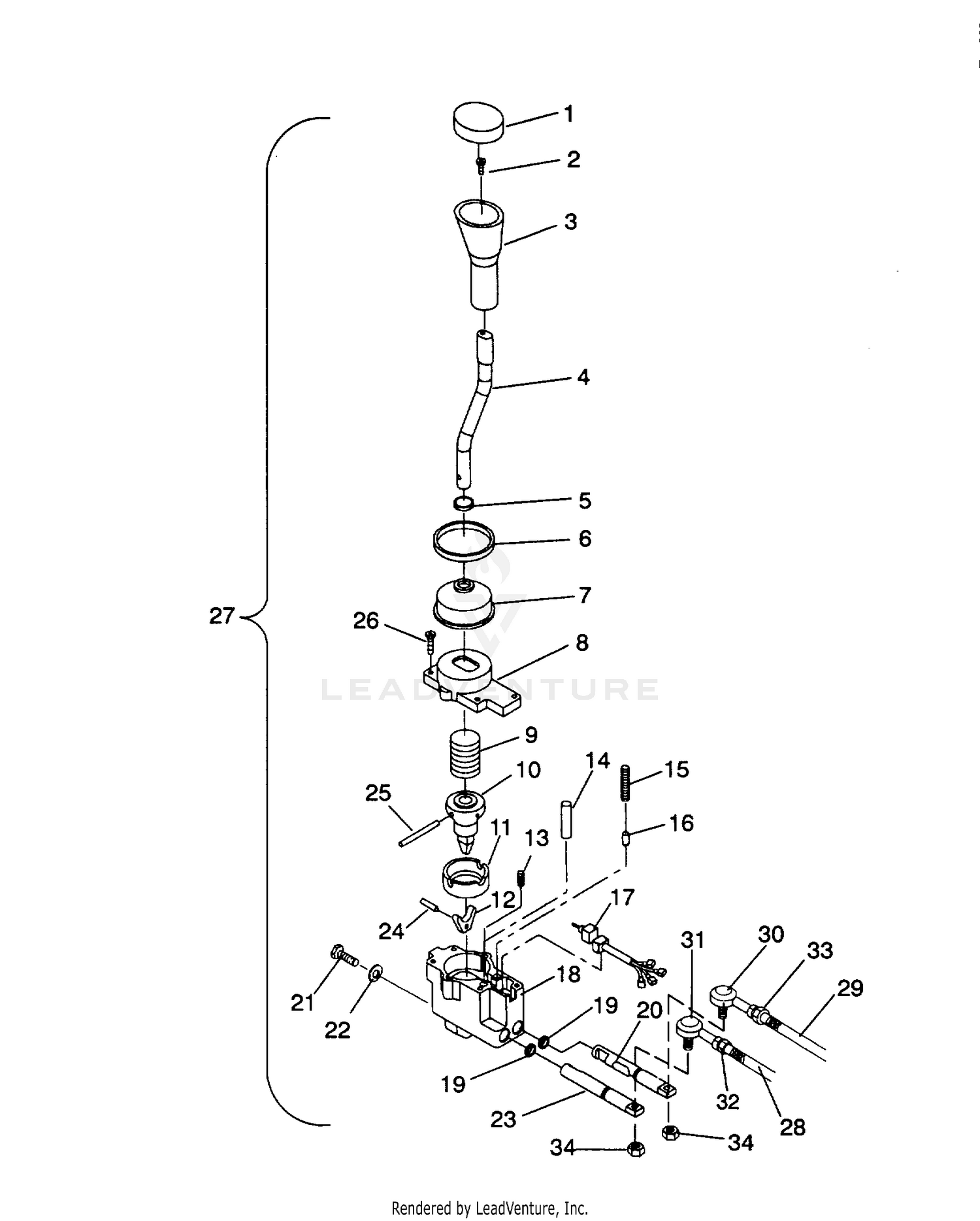

Shift Linkage Assembly Sportsman 4x4 / W938039 (4926382638031a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER,SHIFT KNOB
3233078
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW
3233079
|
|||
|
Unavailable |
|||
|
#3
KNOB,SHIFT
3233077
|
|||
|
Unavailable |
|||
|
#4
ROD,GEAR SELECTOR Substituted by 3233203
3233086
|
|||
|
Unavailable |
|||
|
#5
STRAP, WIRE
3233090
|
|||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP,NARROW BAND
3233074
|
|||
|
Unavailable |
|||
|
#7
BOOT,GEAR SELECTOR
3233075
Superseded by 3233368
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER,GEAR SELECTOR
3233081
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING,HOLDING
3233065
|
$13.39 | ||
|
Available to order. Add to View Price |
|||
|
#10
STRIKER Substituted by 3233197
3233061
|
|||
|
Unavailable |
|||
|
#11
CUP,BEARING
3233063
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
INTERLOCK,BUTTERFLY
3233084
|
|||
|
Unavailable |
|||
|
#13
SPRING,CENTERING
3233083
|
|||
|
Available to order. Add to View Price |
|||
|
#14
PIN, STOP
3233062
|
$13.39 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING,DETENT
3233069
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#16
BULLET,DETENT
3233060
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SWITCH
3233087
Superseded by 3233371
|
$309.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BODY,GEAR SELECTOR
3233082
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING
3233076
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SLIDE,HIGH/REV.
3233088
|
|||
|
Unavailable |
|||
|
#21
BOLT(10)
7512269
|
|||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
WASHER(10)
7552605
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SLIDE,LOW
3233089
|
|||
|
Available to order. Add to View Price |
|||
|
#24
PIN,INTERLOCK
3233070
|
|||
|
Unavailable |
|||
|
#25
PIN,GROOVE
3233067
|
|||
|
Unavailable |
|||
|
#26
SCREW,MAGNIGARD COATED
3233085
Superseded by 3233498
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SELECTOR ASM,GEAR Substituted by 1341164
1341126
|
|||
|
Unavailable |
|||
|
#28
ROD,HI-RA.SHIFTLINK
5020729
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
ROD,LOW-RA.SHIFTLINK
5020730
|
|||
|
Available to order. Add to View Price |
|||
|
#30
ROD END,LH,6MM.
7060141
Superseded by 7061013
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
ROD END,RH,6MM.
7060142
Superseded by 7061014
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT(10)
7546701
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
NUT(10)
7546702
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
NUT-6MM X 1 NYLOK-Z
7546703
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
