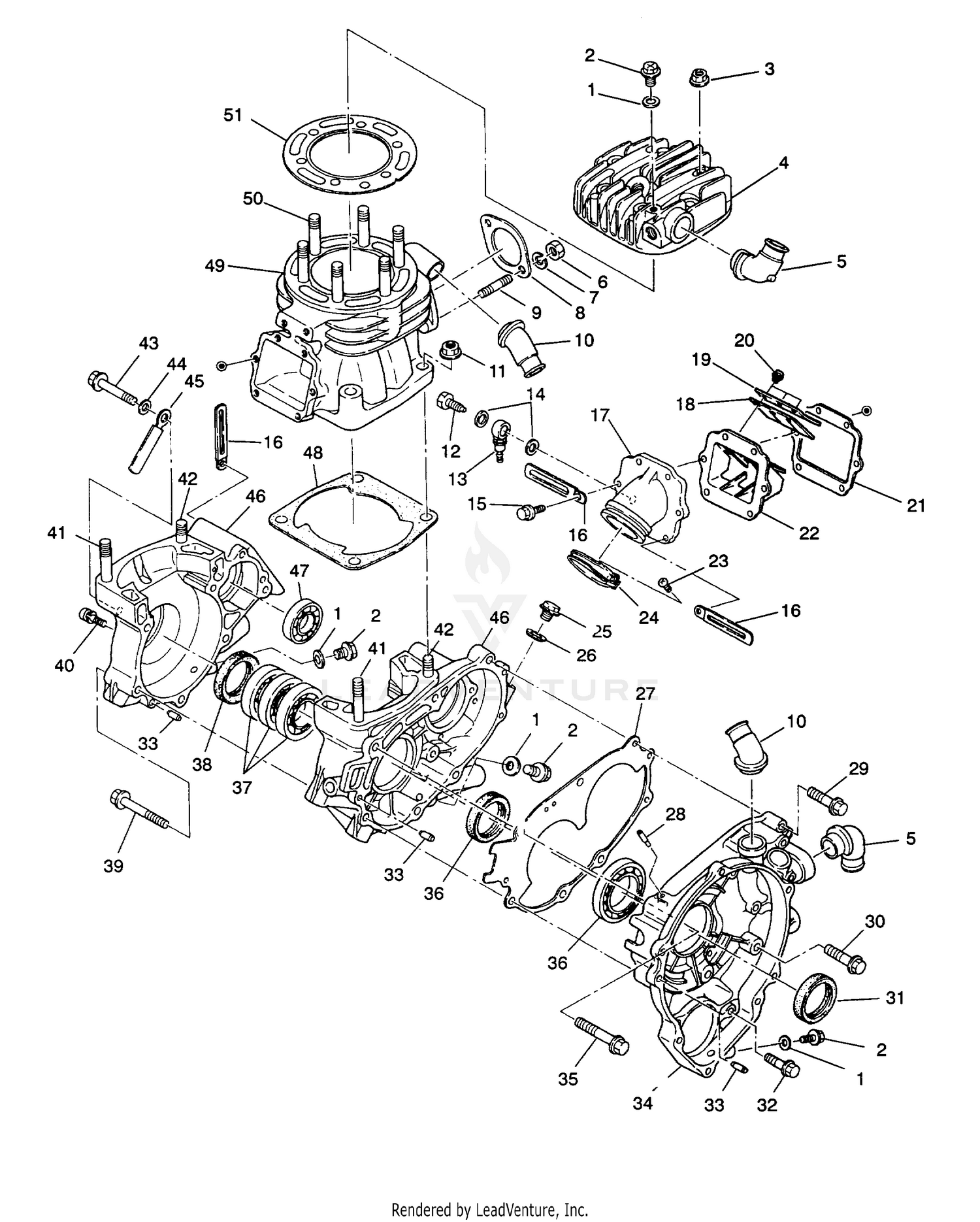

Crankcase And Cylinder Sportsman 4x4 / W938039 (4926382638035a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WASHER, FLAT
3082758
Superseded by 7555998
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
PLUG, DRAIN
3083767
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT-FLANGE(10)
3082910
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
HEAD, CYLINDER
3084141
|
$504.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Pipe 2, Elbow
3084130
Superseded by 3086747
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Nut
3080285
Superseded by 3087199
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER LOCK ,(10)
3080530
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
GASKET, EXHAUST
3083770
|
|||
|
Unavailable |
|||
|
#9
STUD (10)
3080016
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIPE, 1 ELBOW Substituted by 3086746
3084129
|
|||
|
Unavailable |
|||
|
#11
NUT-FLANGE(10)
3082911
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT-BANJO
3083137
|
$13.29 | ||
|
Available to order. Add to View Price |
|||
|
#13
VALVE, CHECK
3083894
|
|||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WASHER, FLAT
3083138
Superseded by 7555998
|
$1.49 | ||
|
Unavailable |
|||
|
#15
Bolt, Flange
3084145
Superseded by 3084877
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
CLAMP
3083590
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
ADAPTER
3084143
|
|||
|
Unavailable |
|||
|
#18
VALVE, REED(10)
3240064
|
|||
|
Available to order. Add to View Price |
|||
|
#19
STOPPER
3240065
|
|||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, REED
3240066
Superseded by 3084565
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET, REED VALVE,(10)
3084148
|
|||
|
Available to order. Add to View Price |
|||
|
#22
VALVE ASM., REED
3084147
|
|||
|
Available to order. Add to View Price |
|||
|
#23
SCREW,(10)
3081497
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BAND ASM.
3084144
|
|||
|
Available to order. Add to View Price |
|||
|
#25
PLUG Substituted by 3086749
3083453
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
GASKET
3082956
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
GASKET, CASE 3
3084133
|
|||
|
Unavailable |
|||
|
#28
PIPE, BREATHER
3084128
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
Bolt, Flange
3084177
Superseded by 3086751
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE
3084135
|
|||
|
Unavailable |
|||
|
#31
SEAL, OIL
3084120
|
|||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE
3084126
|
|||
|
Available to order. Add to View Price |
|||
|
#33
Pin, Dowel
3080103
Superseded by 3086838
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
CRANKCASE #3
3084127
|
|||
|
Unavailable |
|||
|
#35
BOLT, FLANGE
3084134
|
|||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
BEARING, BALL
3084131
|
$48.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
BEARING, BALL
3084121
|
$49.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
SEAL,OIL
3084122
|
|||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, FLANGE Substituted by 3086742
3084125
|
|||
|
Unavailable |
|||
|
#40
SCREW & WASHER(10)
3084205
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
STUD
3084118
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#42
STUD
3084119
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, FLANGE
3084124
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#44
WASHER(10)
3080142
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
CLAMP
3083384
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
CRANKCASE ASM.
3084117
|
|||
|
Unavailable |
|||
|
#47
BEARING, BALL
3084123
|
$25.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
GASKET, CYLINDER
3084140
|
|||
|
Unavailable |
|||
|
#49
CYLINDER
3084137
|
|||
|
Unavailable |
|||
|
#50
STUD
3084138
|
|||
|
Available to order. Add to View Price |
|||
|
#51
GASKET,HEAD(350L) *
3084517
|
|||
|
Available to order. Add to View Price |
|||
