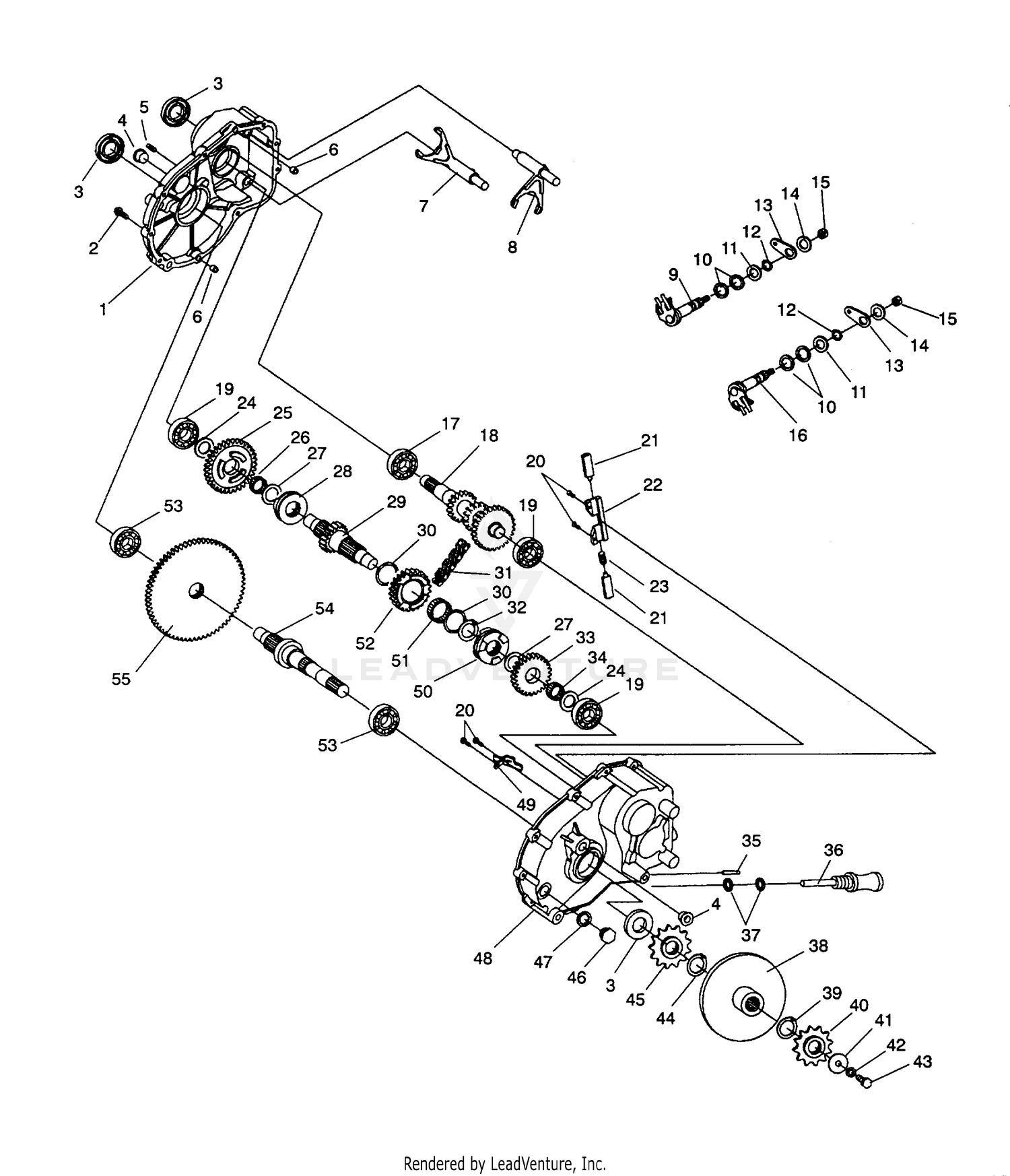

Gearcase Assembly Sportsman 4x4 / W938039 (4926382638033a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
GEARCASE ASM.(ATV) Substituted by 1341123
1341122
|
|||
|
Unavailable |
|||
|
#1
CASE, LH
3233002
|
|||
|
Unavailable |
|||
|
#2
SCREW
3233026
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Seal, Triple Lip
3233027
Superseded by 3233788
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSHING,PIVOT
3233024
|
|||
|
Unavailable |
|||
|
#5
STUD
3233025
|
|||
|
Unavailable |
|||
|
#6
PIPE, KNOCK
3233021
|
$13.39 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHIFTRAIL,LOW
3233022
|
$249.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIFTRAIL,HIGH/REV.
3233023
|
|||
|
Unavailable |
|||
|
#9
SHAFT,LOW SHIFT
3233038
|
|||
|
Unavailable |
|||
|
#10
O-Ring
3233044
Superseded by 3233548
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
3233040
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
RING,RETAINING BASIC,EXTERNAL 0.75
3233045
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BELLCRANK
3233041
Superseded by 3233153
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
3233054
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Nut, Lock
3233055
Superseded by 3233961
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHAFT,HI/REV,SHIFT
3233039
|
|||
|
Unavailable |
|||
|
#17
BEARING, BALL, 6205 C3 25X52X15
3233019
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SHAFT,INPUT
3233004
|
|||
|
Unavailable |
|||
|
#19
BEARING-BALL,6307 C3,35X80X21
3233018
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Screw, Tapping
3233033
Superseded by 3233747
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN
3233031
|
$36.79 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRACKET
3233030
|
$26.79 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING
3233032
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER
3233007
|
|||
|
Available to order. Add to View Price |
|||
|
#25
GEAR, 33T
3233008
|
|||
|
Unavailable |
|||
|
#26
BEARING,NEEDLE
3233009
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER
3233010
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
DOG,LOW,ENGAGEMENT
3233011
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SHAFT,REVERSE
3233006
|
|||
|
Unavailable |
|||
|
#30
WASHER
3233012
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
CHAIN,SILENT,34P
3233036
|
$84.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
RING,RETAINING
3233029
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
GEAR, 25T Substituted by 2201315
3233016
|
|||
|
Unavailable |
|||
|
#34
BEARING,NEEDLE
3233017
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
VENT
3233037
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
Dipstick
3233034
Superseded by 3233478
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
O-RING
3233053
|
|||
|
Unavailable |
|||
|
#38
DISC,BRAKE,WELD. Substituted by 1910177
1910121
|
|||
|
Unavailable |
|||
|
#39
RING,RETAINING(10)
3233048
Superseded by 7710433
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
SPKT, 11T
3221058
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER(10) Substituted by 7555701
3233050
|
|||
|
Unavailable |
|||
|
#42
LOCK WASHER(10)
3233051
Superseded by 7552901
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
BOLT(10)
3233052
Superseded by 7515321
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
RING,SNAP(10)
3233047
Superseded by 7710434
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#45
SPKT, 12T
3221044
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
Plug, Drain
3233028
Superseded by 3233448
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
WASHER
3233035
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
CASE, RH
3233003
|
|||
|
Available to order. Add to View Price |
|||
|
#49
DEFLECTOR,OIL
3233043
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
DOG,HI/REV,ENGAGEMENT Substituted by 2201315
3233015
|
|||
|
Unavailable |
|||
|
#51
BEARING, NEEDLE
3233014
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
SPROCKET, 24T Substituted by 2201315
3233013
|
|||
|
Unavailable |
|||
|
#53
BEARING
3233020
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
SHAFT,OUTPUT
3233005
|
|||
|
Unavailable |
|||
|
#55
GEAR, 66T
3233092
|
|||
|
Unavailable |
|||
