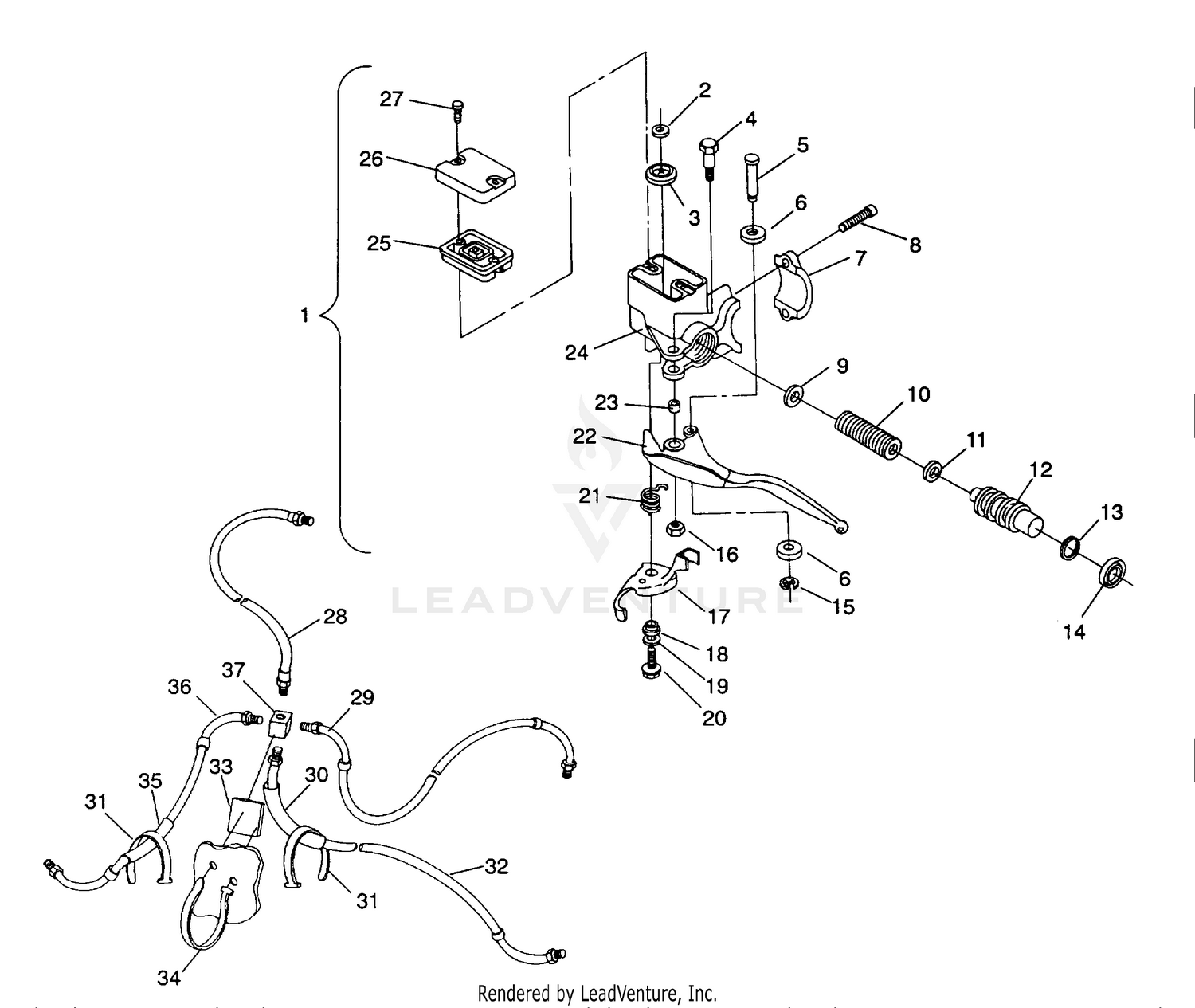

Controls - Master Cylinder/brake Line Sportsman 4x4 / W938039 (4926382638021a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER
2050062
Superseded by 2050073
|
$304.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER, BAFFLE(10)
1930662
|
$2.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
BAFFLE,MASTER CYL.
1930673
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT,BRAKE LEVER(10)
7512287
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
PIN,BRAKELEVER ROLLER
7661627
|
|||
|
Unavailable |
|||
|
#6
ROLLER, BRAKE LEVER
5020598
|
|||
|
Unavailable |
|||
|
#7
CLAMP, MASTER CYL.
5630342
|
|||
|
Available to order. Add to View Price |
|||
|
#8
BOLT,SOCKET HEAD(10)
7512290
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER(10)
7555708
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SPRING, MASTERCYL.
7041311
|
|||
|
Available to order. Add to View Price |
|||
|
#11
SEALCUP, MASTER CYL. Substituted by 5410994
5410784
|
|||
|
Unavailable |
|||
|
#12
PISTON, MASTER CYL.
5020671
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
O RING
5410163
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
SEAL, OIL
3610022
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
RING, RETAINING(10)
7710425
|
|||
|
Unavailable |
|||
|
#16
NUT-LOCK(10)
7542124
Superseded by 7542122
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
LEVER,PARK.BRAKE Substituted by 5240865
5240133
|
|||
|
Unavailable |
|||
|
#18
BUSHING,PK.BRAKE LEVER
5020670
|
|||
|
Available to order. Add to View Price |
|||
|
#19
RIVET BURR(50)
7555756
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW(10)
7511876
|
|||
|
Available to order. Add to View Price |
|||
|
#21
SPRING,PK.BRAKE
7041229
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
LEVER, BRAKE,(ATV)
5630455
|
|||
|
Unavailable |
|||
|
#23
BUSHING,BRAKE LEVER
5332931
|
|||
|
Unavailable |
|||
|
#24
HOUSING,MASTERCYL.
5130955
|
$369.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
GASKET,MASTER CYL.
5410527
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
COVER,MASTER CYL.
5630338
|
|||
|
Available to order. Add to View Price |
|||
|
#27
SCREW,W/WASHER(10)
7512050
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
LINE,BRAKE,UP./FTGS.
1930748
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
LINE, R.BRAKE
1930742
|
|||
|
Unavailable |
|||
|
#30
Tubing, Convoluted
8360031-30
Superseded by 8360011-34
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
STRAP, BLK
7080272
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
LINE,BRAKE,LH,FR,W/FITTINGS
1930631
Superseded by 1930752
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
PAD,GAS TANK [No Longer Available]
5850040
|
|||
|
Unavailable |
|||
|
#34
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
CONDUIT, 38 CM.
8360031-38
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#36
LINE,BRAKE,RH,FR.W/FITTINGS
1930634
Superseded by 1930753
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
FITTING, TEE
7052044
|
|||
|
Unavailable |
|||
