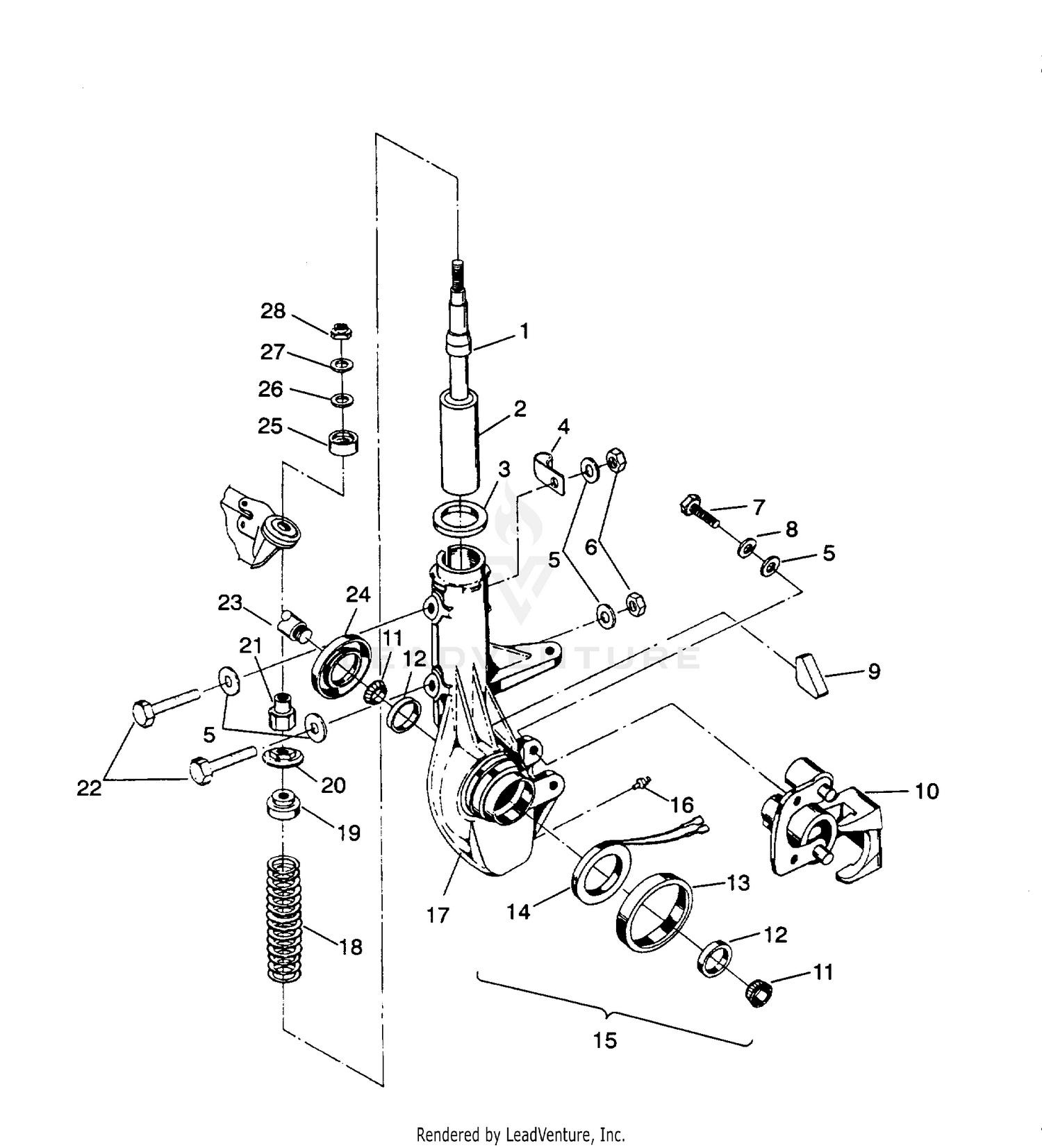

Front Strut Assembly Sportsman 4x4 / W938039 (4926382638014a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BUMPER-MCU,19.1MM ID
5410791
Superseded by 5412529
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
STRUT ASM,FRONT,25MM.
7041211
Superseded by 7041451
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER-2.06X2.62X.105-Y
5211115
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
CLAMP,RUBBER-COATED,.562(10)
7080347
Superseded by 7080573
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
WASHER-.344X.688X.063 FL-Y
7558402
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT FLEX-LOC(10)
7542303
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, CAP(10)
7512365
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
LOCK WASHER(10)
7552901
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
RETAINER,WIRE,STRUT CAST
5810439
|
|||
|
Unavailable |
|||
|
#10
Asm., Front Brake Caliper, RH
-------
|
|||
|
Unavailable |
|||
|
#11
BRG,TAPER.ROLL.CONE
3554506
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRG,TAPER,ROLL CUP
3554507
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SLEEVE,STRUT HUB SEAL
5222193
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COIL, MAGNETIC
4170003
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
HUB STRUT ASM,LH
1843033
|
|||
|
Unavailable |
|||
|
#15
HUB STRUT ASM,RH
1843034
|
|||
|
Available to order. Add to View Price |
|||
|
#16
FITTING,LUBE.W/BALL CK.(10)
7080306
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
SUPPORT,LH HUB STRUT [No Longer Available]
5130702
|
|||
|
Unavailable |
|||
|
#17
SUPPORT,RH HUB STRUT [No Longer Available]
5130703
|
|||
|
Unavailable |
|||
|
#18
SPRING, STRUT
7041161-067
|
|||
|
Available to order. Add to View Price |
|||
|
#19
NOT AVAILABLE
5220602
Superseded by 9999999
|
|||
|
Available to order. Add to View Price |
|||
|
#20
PIVOT-BALL,BOTTOM,DELRIN
5430807
Superseded by 5432871
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPACER,THREADED
5130668
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCR-HH-5/16-18X2.25 GR5 ZY3
7515339
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Asm., Drive Shaft w/Sleeve
-------
|
|||
|
Unavailable |
|||
|
#24
SEAL, HUB STRUT
3610028
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIVOT-BALL,TOP,DELRIN
5430806
Superseded by 5432872
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPACER-RUBBER
5810291
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
WASHER(10)
7555749
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
NUT,FLEX LOC(10)
7542507
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
