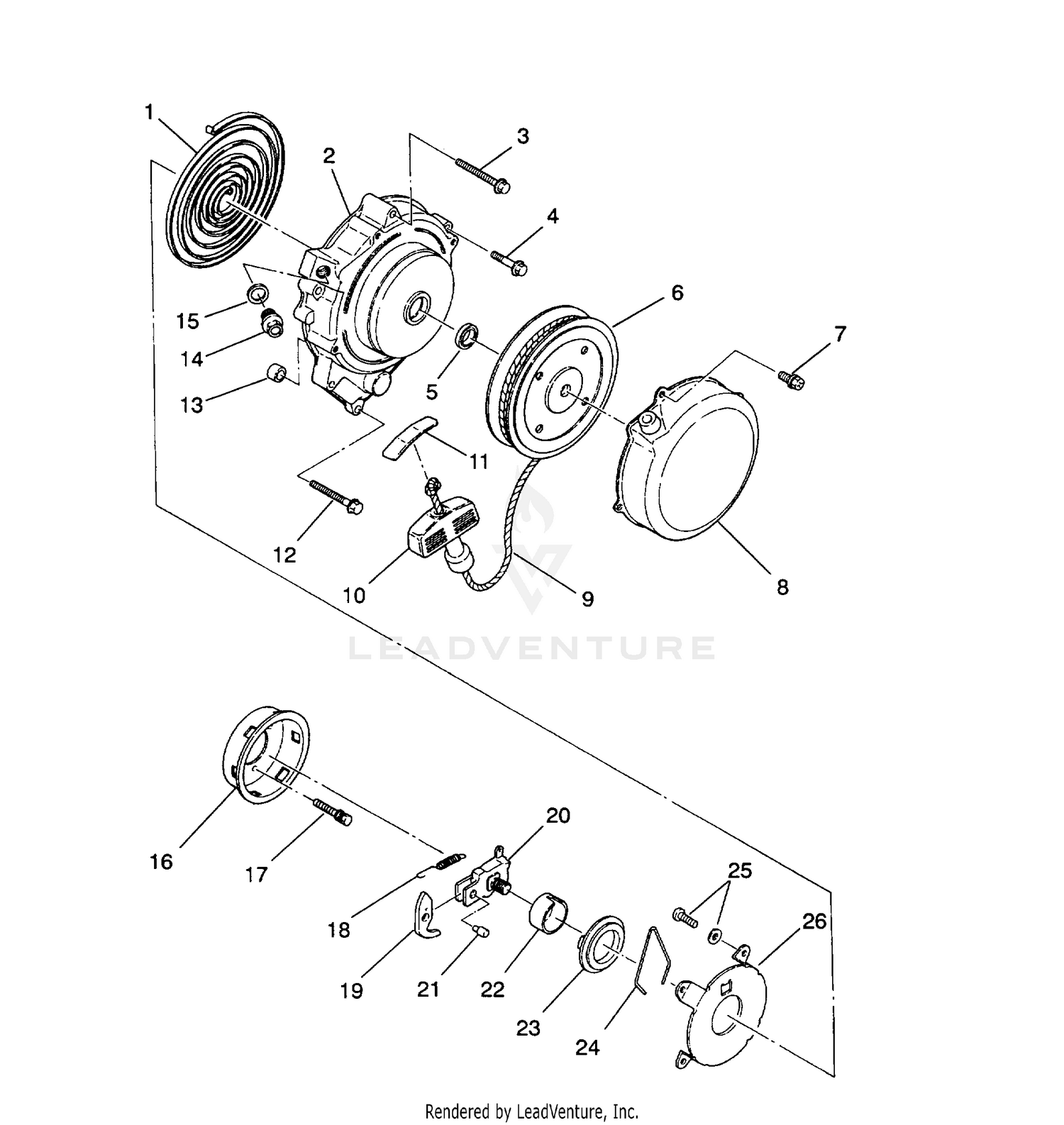

Recoil Starter Sportsman 4x4 / W938039 (4926382638041a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPRING, SPIRAL
3083815
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
STARTER,RECOIL,COMPL.
3083924
|
|||
|
Available to order. Add to View Price |
|||
|
#2
CASE,STARTER,B UNIT
3083911
|
$339.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
3084178
|
|||
|
Unavailable |
|||
|
#4
Bolt, Flange
3084177
Superseded by 3086751
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GROMMET
3083817
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
REEL, COMPL.
3083814
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
3083826
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#8
CASE,STARTER,COMPL.
3083914
|
$205.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
ROPE,100 FT,NYL.STARTER
2870621
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
KNOB, STARTER
3083659
|
$44.39 | ||
|
Available to order. Add to View Price |
|||
|
#11
NOT AVAILABLE
3083660
Superseded by 9999999
|
|||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
3084179
|
|||
|
Unavailable |
|||
|
#13
BUSHING, STARTER
3083669
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG Substituted by 3086749
3083453
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET
3082956
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
PULLEY, STARTING
3083915
|
|||
|
Unavailable |
|||
|
#17
BOLT,(10)
3081665
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SPRING, RETURN
3083827
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
RATCHET
3083819
|
$19.59 | ||
|
Available to order. Add to View Price |
|||
|
#20
GUIDE, COMPL.
3083913
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN, RATCHET
3083820
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOOK, SPRING
3083818
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
GUIDE,RATCHET
3083821
|
|||
|
Available to order. Add to View Price |
|||
|
#24
SPRING,FRICTION
3083912
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW & WASHER
3084176
|
$4.79 | ||
|
Available to order. Add to View Price |
|||
|
#26
CASE, SPRING
3083925
|
$56.99 | ||
|
Unavailable |
|||
