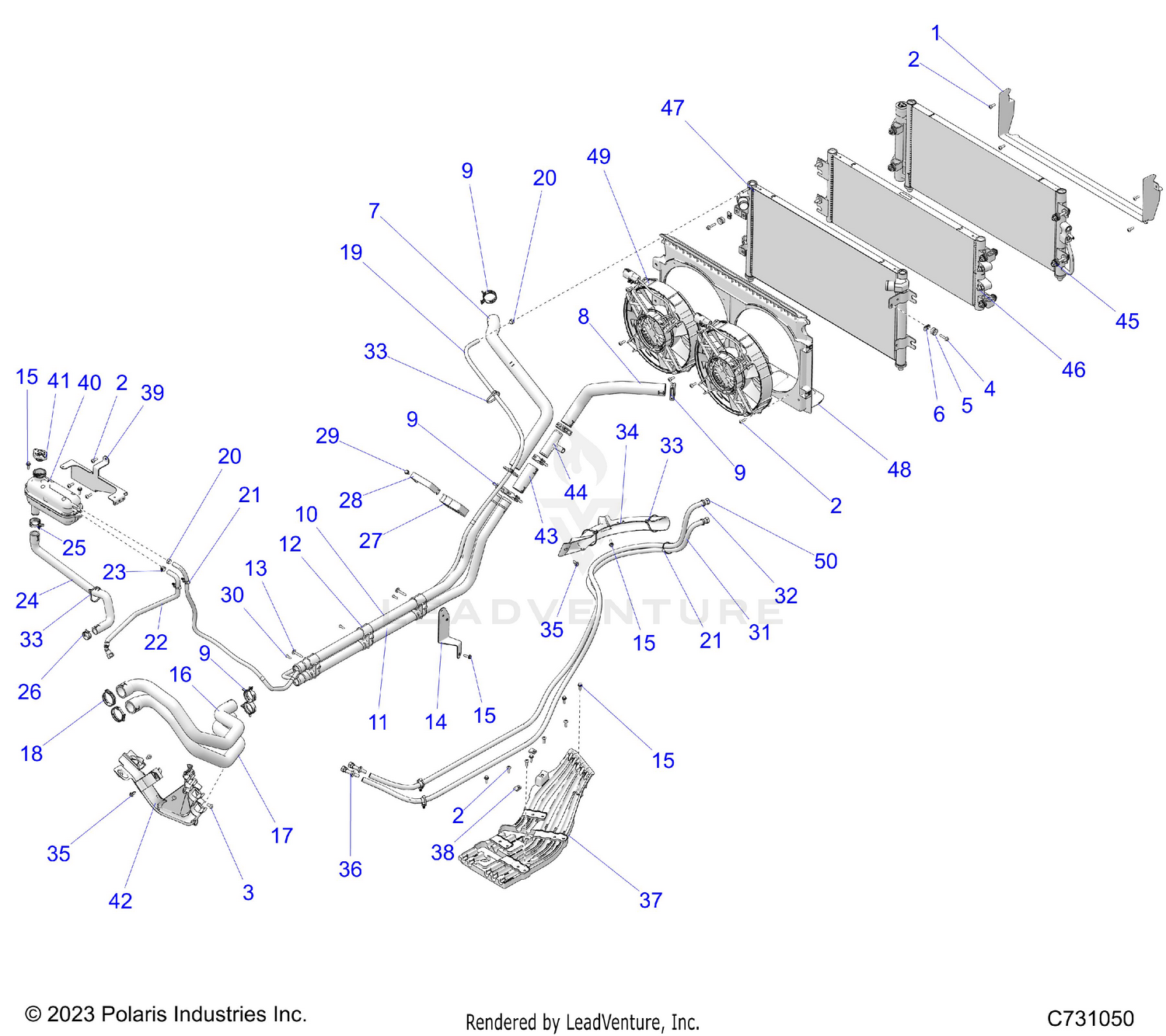

Engine, Cooling - R25xaw1rb9/bd/bm (c731050) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHROUD-RADIATOR
5458380
|
$54.99 | ||
|
Unavailable |
|||
|
#2
SCR-TXPH-#14 X .75 HI-LO RIE
7519731
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCR-TXBH-M8X1.25X16 10.9 ZTB
7527948-16
|
$2.99 | ||
|
Unavailable |
|||
|
#4
SCR-HXFL-M6X1.0X30 10.9 ZFB
7521331-30
|
$3.99 | ||
|
Unavailable |
|||
|
#5
ASM-GROMMET & INSERT
5416503
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP-U SPEED NUT
7081305
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE-RADIATOR,OUT
5417834
|
$54.99 | ||
|
Unavailable |
|||
|
#8
HOSE-COOLANT,HVAC,TEE,UPPER
5418133
|
$49.99 | ||
|
Unavailable |
|||
|
#9
CLAMP-CTB42
7082625
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
TUBE-COOLANT
5345355
|
$89.99 | ||
|
Unavailable |
|||
|
#11
TUBE-COOLANT
5345356
|
$94.99 | ||
|
Unavailable |
|||
|
#12
CLAMP-COOLANT TUBE
5459120
|
$8.99 | ||
|
Unavailable |
|||
|
#13
SCR-TXTH-M6X1.0X50, 8.8, ZPB
7519001
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BRKT-TUNNEL,ROUTING,BLK
5272972-329
|
$44.99 | ||
|
Unavailable |
|||
|
#15
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE-ENGINE,IN
5418814
|
$79.99 | ||
|
Unavailable |
|||
|
#17
HOSE-ENGINE,OUT
5417837
|
$79.99 | ||
|
Unavailable |
|||
|
#18
CLAMP-CTB48
7082746
|
$6.99 | ||
|
Unavailable |
|||
|
#19
ASM-VENT LINE
2522548
|
$54.99 | ||
|
Unavailable |
|||
|
#20
HOSE CLAMP, RED
7080003
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP FIR-TREE,DIA6-33MM
7081496
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
ASM-VENT LINE
1244648
|
$54.99 | ||
|
Unavailable |
|||
|
#23
CLAMP-HOSE, 17/32, GREEN
7081432
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE-BOTTLE,RETURN
5417917
|
$44.99 | ||
|
Unavailable |
|||
|
#25
SPRINGBAND-CLAMP,BLK
7082308
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPRINGBAND-CLAMP 29/12,BLK
7080842
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
GROMMET-ROUTING
5418201
|
$10.99 | ||
|
Unavailable |
|||
|
#28
BRKT-ROUTING GROMMET,BLK
5271997-329
|
$64.99 | ||
|
Unavailable |
|||
|
#29
BOLT,M6X1.0X15,HXFLG,TAP/T-OD
7518513
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
SCREW-#10X3/4-HI/LO-PN-T25,TRX-M
7512026
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
ASM-HOSE,TRANS COOL,RETURN
1244826
|
$224.99 | ||
|
Unavailable |
|||
|
#31
HOSE-OIL,PUSHLOCK,3/8",216CM
8450254-216
|
$104.99 | ||
|
Unavailable |
|||
|
#32
ASM-HOSE,TRANS COOL,SUPPLY
1244825
|
$224.99 | ||
|
Unavailable |
|||
|
#32
HOSE-OIL,PUSHLOCK,3/8",199CM
8450254-199
|
$94.99 | ||
|
Unavailable |
|||
|
#33
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLIP-ROUTING,BLK
5459140-070
|
$16.99 | ||
|
Unavailable |
|||
|
#35
RIVET-TUFLOK,.315-.325X.787
7661855
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
FITTING-45,JIC 37DEG-6AN
7055568
|
$44.99 | ||
|
Unavailable |
|||
|
#37
TRAY-ROUTING,FLOOR,BLK
5458749-070
|
$334.99 | ||
|
Unavailable |
|||
|
#38
NUT-M6-1.0, U-TYPE (2.5-3.8)
7547674
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
BRKT-BOTTLE MOUNT,BLK
5271968-458
|
$64.99 | ||
|
Unavailable |
|||
|
#40
ASM-COOLANT BOTTLE
1244719
|
$124.99 | ||
|
Unavailable |
|||
|
#41
CAP-PRESSURE
1241379
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
TRAY-ROUTING,TRANS,BLK
5458381-070
|
$16.99 | ||
|
Unavailable |
|||
|
#43
HOSE-COOLANT,HVAC,TEE,LOWER
5418134
|
$13.99 | ||
|
Unavailable |
|||
|
#44
CONNECTOR-TEE,1.25X1.25X0.625
7055605
|
$12.99 | ||
|
Unavailable |
|||
|
#45
CONDENSER-HVAC
1244718
|
$499.99 | ||
|
Unavailable |
|||
|
#46
ASM-OIL COOLER
1244658
|
$519.99 | ||
|
Unavailable |
|||
|
#47
ASM-RADIATOR,CORE
1244644
|
$459.99 | ||
|
Unavailable |
|||
|
#48
SHROUD-FAN
5459119-070
|
$119.99 | ||
|
Unavailable |
|||
|
#49
ASM-FAN,RADIATOR
2416873
|
$724.99 | ||
|
Unavailable |
|||
|
#50
FITTING-STR,JIC 37DEG-6AN
7055576
|
$29.99 | ||
|
Unavailable |
|||
