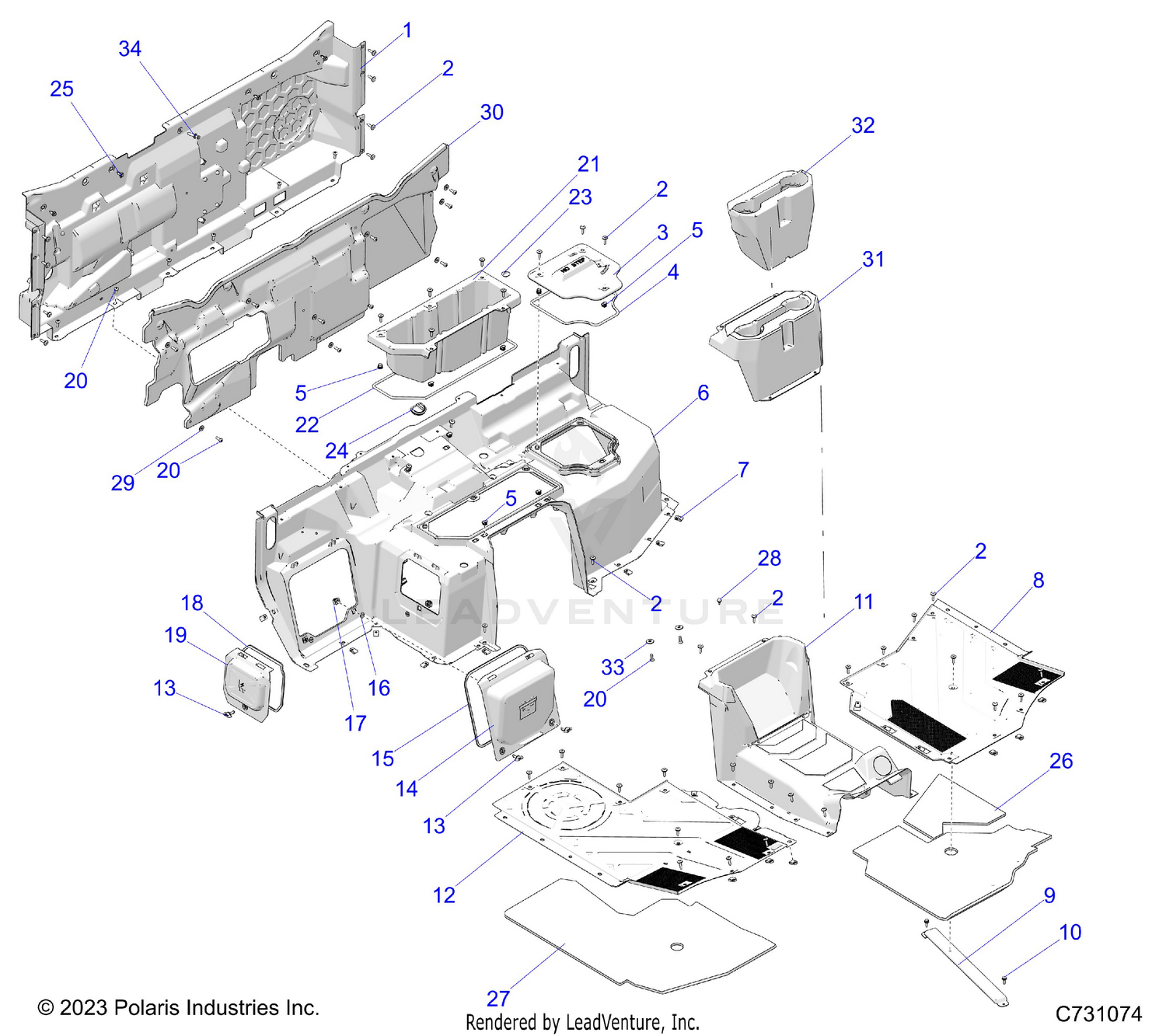

Body, Floor And Rear Closeoff - R25xaw1rb9/bd/bm (c731074) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PANEL-CLOSEOFF,REAR,NS,BLK
5459478-070
|
$469.99 | ||
|
Unavailable |
|||
|
#1
PANEL-CLOSEOFF,REAR,NS,BLK
5467080-070
|
$469.99 | ||
|
Unavailable |
|||
|
#2
SCR-TXTH-M6X1.0X25 ZFB
7519650
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
COVER-UNDERSEAT,BLK
5458936-070
|
$39.99 | ||
|
Unavailable |
|||
|
#4
SEAL-STORAGE BIN
5526408
|
$16.99 | ||
|
Unavailable |
|||
|
#5
NUT-PAL NUT,M6
7548058
|
$4.99 | ||
|
Unavailable |
|||
|
#6
PANEL-CLOSEOFF,LOWER,BLK
5458112-070
|
$229.99 | ||
|
Unavailable |
|||
|
#6
PANEL-CLOSEOFF,LOWER,BLK
5466247-070
|
$229.99 | ||
|
Unavailable |
|||
|
#7
NUT-M6-1.0, U-TYPE (2.5-3.8)
7547674
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
ASM-FLOOR,FRONT,LH
2639353
|
$374.99 | ||
|
Unavailable |
|||
|
#8
FLOOR-LH,BLK
5457618-070
|
$329.99 | ||
|
Unavailable |
|||
|
#9
BRKT-FLOOR STRUCTURE FRT,BLK
5273589-329
|
$44.99 | ||
|
Unavailable |
|||
|
#10
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
COVER-TUNNEL FLOOR,LOWER,BLK
5465383-070
|
$119.99 | ||
|
Unavailable |
|||
|
#12
ASM-FLOOR,FRONT,RH
2639354
|
$404.99 | ||
|
Unavailable |
|||
|
#12
FLOOR-RH,BLK
5457619-070
|
$344.99 | ||
|
Unavailable |
|||
|
#13
STUD-1/4 TURN,NYLON
7662384
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER-BATTERY,BLK
5458132-070
|
$44.99 | ||
|
Unavailable |
|||
|
#15
SEAL-BATTERY COVER
5526407
|
$6.99 | ||
|
Unavailable |
|||
|
#16
CLIP-RETAINER,1/4 TURN
7710919
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP-1/4 TURN
7710933
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAL-FUSE COVER
5526406
|
$4.99 | ||
|
Unavailable |
|||
|
#19
COVER-FUSE BLOCK,BLK
5458701-070
|
$18.99 | ||
|
Unavailable |
|||
|
#20
SCR-TXPH-#14 X .75 HI-LO RIE
7519731
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
STORAGE-UNDERSEAT,CENTER,BLK
5458115-070
|
$44.99 | ||
|
Unavailable |
|||
|
#22
SEAL-FUEL LID
5526409
|
$11.99 | ||
|
Unavailable |
|||
|
#23
PLUG-COMPARTMENT
5418084
|
$3.99 | ||
|
Unavailable |
|||
|
#24
PLUG-TRANSMISSION FILL
5418159
|
$6.99 | ||
|
Unavailable |
|||
|
#25
RIVET-TUFLOK,.315-.325X.787
7661855
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
FOAM-DRIVER FLOOR,FRONT
5815548
|
$44.99 | ||
|
Unavailable |
|||
|
#27
FOAM-PASSENGER FLOOR,FRONT
5815551
|
$54.99 | ||
|
Unavailable |
|||
|
#28
BUMPER-GROMMET,1/4"
5412465
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
WSHR-FLAT-M6X1.6 LARGE ZTB
7558714
|
$0.99 | ||
|
Unavailable |
|||
|
#30
PANEL-REAR,INNER,RGR
5815731
|
$584.99 | ||
|
Unavailable |
|||
|
#31
COVER-TUNNEL FLOOR,UPPER,BLK
5465382-070
|
$69.99 | ||
|
Unavailable |
|||
|
#32
FOAM-TUNNEL,FRONT
5815699
|
$84.99 | ||
|
Unavailable |
|||
|
#33
WSHR-FLAT-M8X2.0 LARGE ZTB
7558715
|
$15.99 | ||
|
Unavailable |
|||
|
#34
RIVET-PUSH,8X29
7663018
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
