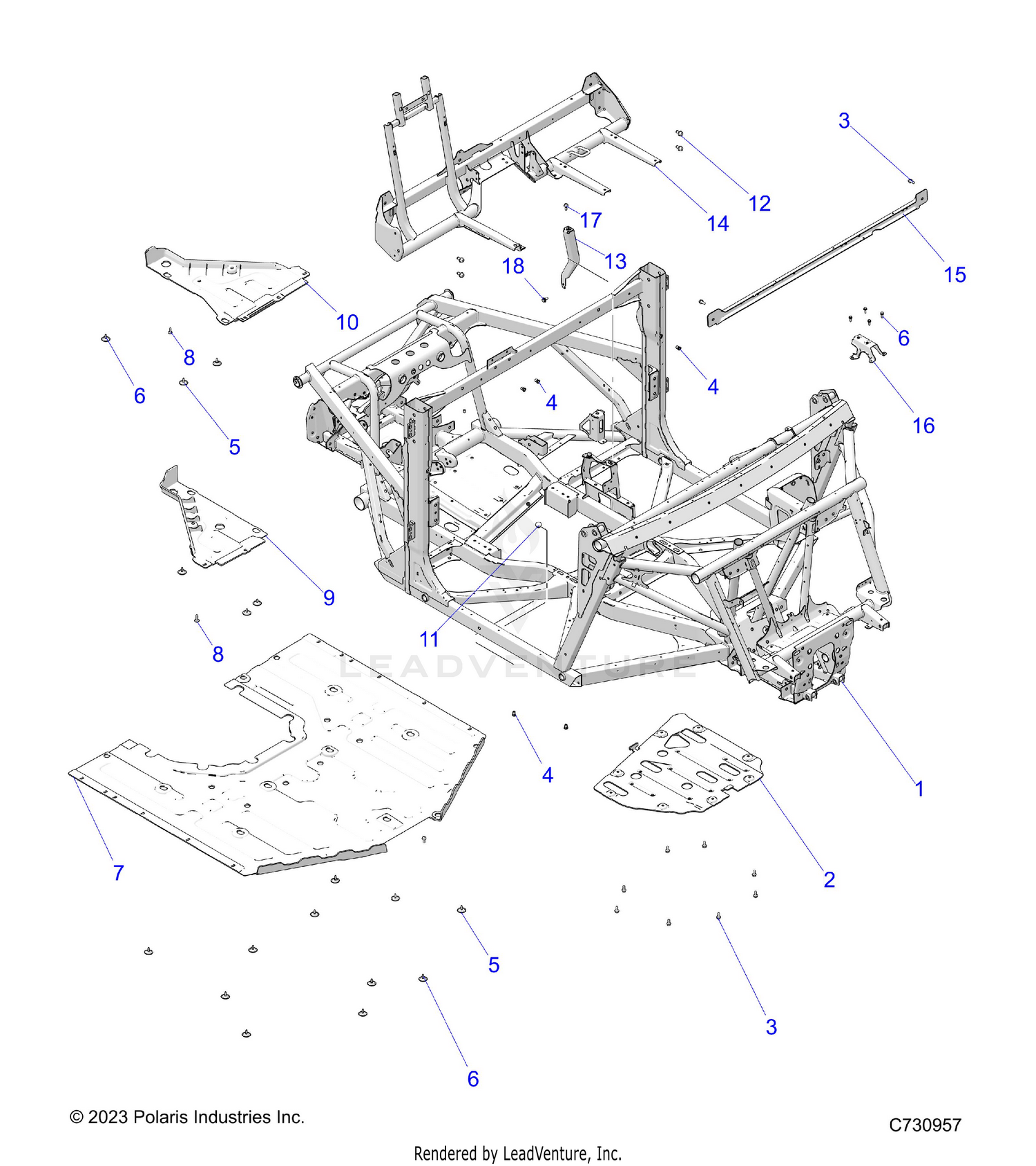

Chassis, Main Frame And Skid Plates - R25xaw1rb9/bd/bm (c730957) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
K-FRAME,MAIN,RGR,1.5K,BLK
2212118
|
$4,459.99 | ||
|
Unavailable |
|||
|
#2
BRKT-SKID,TRANSMISSION,BLK
5274971-458
|
$214.99 | ||
|
Unavailable |
|||
|
#2
BRKT-SKID,TRANSMISSION,ECOAT
5274971-329
|
$214.99 | ||
|
Unavailable |
|||
|
#2
BRKT-SKID,TRANSMISSION,ECOAT
5276606-329
|
$214.99 | ||
|
Unavailable |
|||
|
#3
SCR-HXFL-M8X1.25X20 10.9 ZFB
7521332-20
|
$3.99 | ||
|
Unavailable |
|||
|
#4
NUT-RIVNUT,HEX,M8X1.25
7548098
|
$3.99 | ||
|
Unavailable |
|||
|
#5
WASHER-SKID PLATE
7556065
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE-SKID FRONT,BLK
5465412-070
|
$419.99 | ||
|
Unavailable |
|||
|
#8
SCR-TXTH-M6X1.0X25 ZFB
7519650
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
PLATE-SKID,REAR,RH,BLK
5459004-070
|
$64.99 | ||
|
Unavailable |
|||
|
#10
PLATE-SKID,REAR,LH,BLK
5465415-070
|
$159.99 | ||
|
Unavailable |
|||
|
#11
BUMPER-RUBBER
5412067
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCR-HXFL-M10X1.5X20 10.9 ZFB A
7528231
|
$2.99 | ||
|
Unavailable |
|||
|
#13
WELD-SEAT MOUNT,BLK
1027690-329
|
$54.99 | ||
|
Unavailable |
|||
|
#14
WELD-SEAT BASE,MAIN,BLK
1026742-458
|
$979.99 | ||
|
Unavailable |
|||
|
#15
BRKT-DASH SUPPORT,ECOAT
5273501-329
|
$94.99 | ||
|
Unavailable |
|||
|
#16
BRKT-UPPER,DASH SUPPORT,ECOAT
5274295-329
|
$44.99 | ||
|
Unavailable |
|||
|
#17
SCR-HXFL-M8X1.25X20 10.9 ZFB A
7528232
|
$2.99 | ||
|
Unavailable |
|||
|
#18
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
