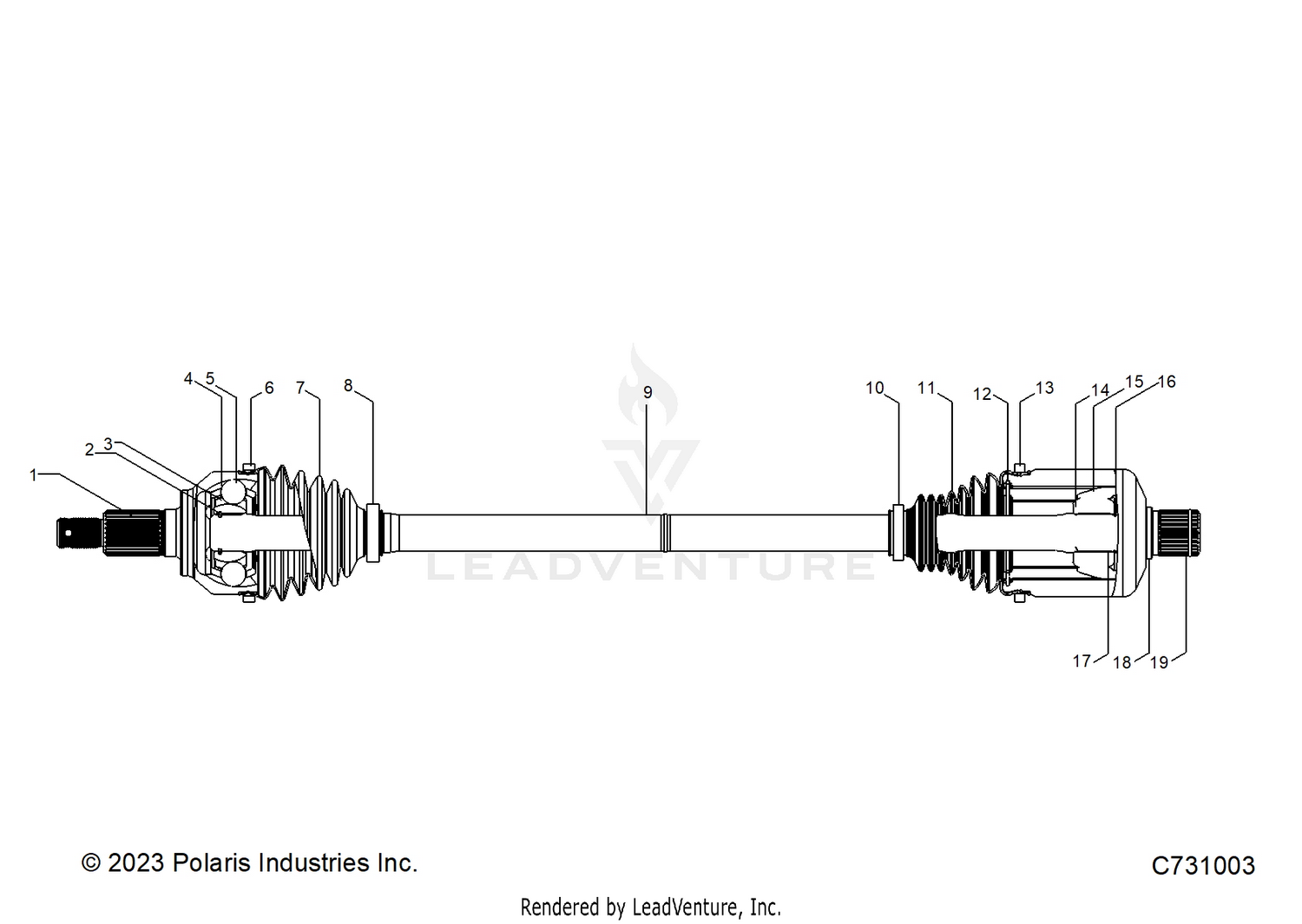

Drive Train, Front Halfshaft - R25xaw1rb9/bd/bm (c731003) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
ASM-HALFSHAFT,FRONT
1337338
|
$264.99 | ||
|
Unavailable |
|||
|
#
ASM-OUTER JOINT
3239783
|
$149.99 | ||
|
Unavailable |
|||
|
#
K-BOOT OUTER
3239784
|
$34.99 | ||
|
Unavailable |
|||
|
#
K-BAR
3239785
|
$49.99 | ||
|
Unavailable |
|||
|
#
K-INNER BOOT
3239357
|
$54.99 | ||
|
Unavailable |
|||
|
#
INNER JOINT,FRONT
3239788
|
$104.99 | ||
|
Unavailable |
|||
|
#
SNAP RING
2206525
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#
CIRCLIP
3236756
|
$3.99 | ||
|
Unavailable |
|||
|
#1
OUTER RACE
-------
|
|||
|
Unavailable |
|||
|
#2
SNAP RING
-------
|
|||
|
Unavailable |
|||
|
#3
INNER RACE
-------
|
|||
|
Unavailable |
|||
|
#4
CAGE
-------
|
|||
|
Unavailable |
|||
|
#5
BALL
-------
|
|||
|
Unavailable |
|||
|
#6
BAND
-------
|
|||
|
Unavailable |
|||
|
#7
BOOT-BJ
-------
|
|||
|
Unavailable |
|||
|
#8
BAND
-------
|
|||
|
Unavailable |
|||
|
#9
DRIVE SHAFT
-------
|
|||
|
Unavailable |
|||
|
#10
BAND
-------
|
|||
|
Unavailable |
|||
|
#11
BOOT-DOJ
-------
|
|||
|
Unavailable |
|||
|
#12
RETAINING RING
-------
|
|||
|
Unavailable |
|||
|
#13
BAND
-------
|
|||
|
Unavailable |
|||
|
#14
INNER RACE
-------
|
|||
|
Unavailable |
|||
|
#15
BALL
-------
|
|||
|
Unavailable |
|||
|
#16
CIRCLIP
-------
|
|||
|
Unavailable |
|||
|
#17
CAGE
-------
|
|||
|
Unavailable |
|||
|
#18
HOUSING
-------
|
|||
|
Unavailable |
|||
|
#19
SNAP RING
-------
|
|||
|
Unavailable |
|||
