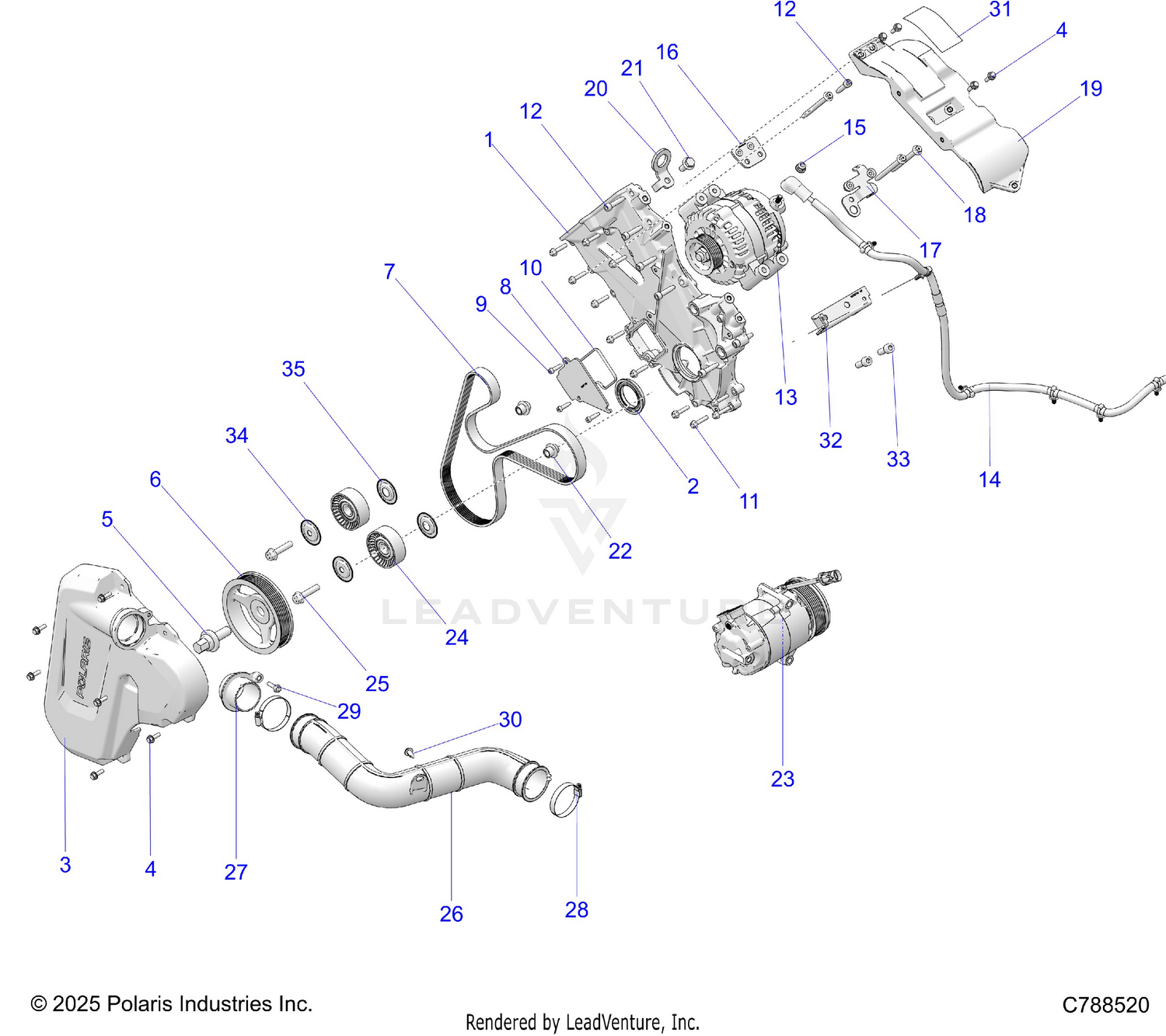

Engine, Alternator - R25xaw1rb9/bd/bm (c788520) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-COVER,FRONT
3024302
|
$209.99 | ||
|
Unavailable |
|||
|
#1
ASM-COVER,FRONT
3024508
|
$209.99 | ||
|
Unavailable |
|||
|
#2
SEAL-MAIN,PULLEY
3610289
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER-BELT,HVAC
5144962
|
$139.99 | ||
|
Unavailable |
|||
|
#3
COVER-BELT,HVAC
5145730
|
$139.99 | ||
|
Unavailable |
|||
|
#4
SCREW-HXFL, M6x1.0x20 8.8 ZPB
7520122
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCR-HHXFL-M16X1.5X50 10.9 SEMS
3023212
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PULLEY-FRONT
3023761
|
$69.99 | ||
|
Unavailable |
|||
|
#7
BELT-ALT,STRETCH,HVAC
5418718
|
$74.99 | ||
|
Unavailable |
|||
|
#8
COVER-TENSIONER
5269368
|
$10.99 | ||
|
Unavailable |
|||
|
#9
SCR-HXFL-M6X1.0X20 8.8 DOG
7520496
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET-TENS,COVER
5814967
|
$16.99 | ||
|
Unavailable |
|||
|
#11
SCR-HXFL-M6X1.0X30 10.9 ZFB
7521331-30
|
$3.99 | ||
|
Unavailable |
|||
|
#12
SCR-SHCS-M8X1.25X30 8.8 DOG
7520502
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
K-ALTERNATOR,HVAC
2211551
|
$699.99 | ||
|
Unavailable |
|||
|
#13
ALTERNATOR-140AMP
-------
|
|||
|
Unavailable |
|||
|
#14
CABLE-B+ POST TO ALT,SENSOR
4081470
|
$199.99 | ||
|
Unavailable |
|||
|
#15
NUT-NYLOCK M8X1.25-Y
7547144
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BRKT-ALT COVER,UPPER
5270350
|
$12.99 | ||
|
Unavailable |
|||
|
#17
BRKT-ALT COVER,LOWER
5270351
|
$17.99 | ||
|
Unavailable |
|||
|
#18
SCR-HXFL-M8X1.25X90 8.8 DOG
7520504
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER-ALTERNATOR,HVAC
5457053
|
$69.99 | ||
|
Unavailable |
|||
|
#20
BRACKET-LIFT
5275158
|
$59.99 | ||
|
Unavailable |
|||
|
#21
SCR-HXFL-M10X1.5X25,DIN6921ZB
7519349
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
HUB-PULLEY,IDLER
5144256
|
$54.99 | ||
|
Unavailable |
|||
|
#23
K-HVAC COMPRESSOR KIT
2212000
|
$899.99 | ||
|
Unavailable |
|||
|
#23
COMPRESSOR-HVAC
-------
|
|||
|
Unavailable |
|||
|
#24
PULLEY-FLAT IDLER,70.9MM
3023107
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCR-HXFL-M10X1.5X45 10.9 ZFB
7521333-45
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
DUCT-ROCKER
5418571
|
$109.99 | ||
|
Unavailable |
|||
|
#27
DUCT-JOINT,COVER
5465059
|
$11.99 | ||
|
Unavailable |
|||
|
#28
CLAMP-WORM GEAR,44-70MM,HOSE
7081623
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCR-HXFL-M6X1.0X25 10.9 ZFB
7521331-25
|
$1.99 | ||
|
Unavailable |
|||
|
#30
RIVET-TUFLOK,.315-.325X.787
7661855
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
DECAL-WARNING,COVERS
7300655
|
|||
|
Unavailable |
|||
|
#32
BRKT-HARNESS,SUPPORT
5272736
|
$9.99 | ||
|
Unavailable |
|||
|
#33
SCREW-SH-M10X1.5X25 8.8 ZPB
7519890
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
COVER-IDLER PULLEY,OUTBOARD
5275671
|
$5.99 | ||
|
Unavailable |
|||
|
#35
COVER-IDLER PULLEY,INBOARD
-------
|
|||
|
Unavailable |
|||
