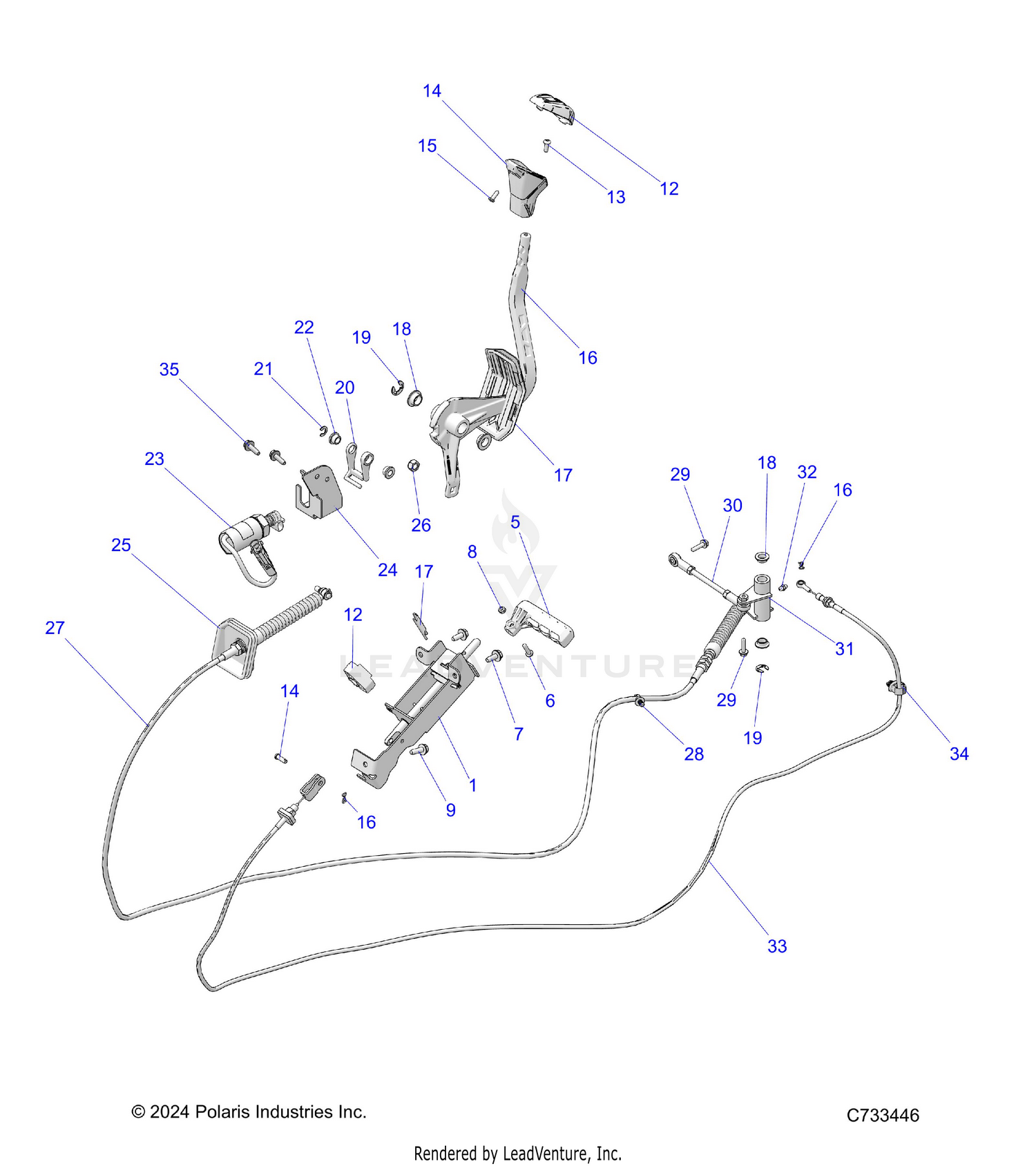

Drive Train, Gear Selector - R25xaw1rb9/bd/bm (c733446) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-LEVER,DISCONNECT
7082972
|
$74.99 | ||
|
Unavailable |
|||
|
#2
ROD-DISCONNECT
5144197
|
$16.99 | ||
|
Unavailable |
|||
|
#3
REACTION BLOCK
5458960
|
$1.99 | ||
|
Unavailable |
|||
|
#4
LOCKING PAWL
5639428
|
$29.99 | ||
|
Unavailable |
|||
|
#5
HANDLE-DISCONNECT
5465338
|
$18.99 | ||
|
Unavailable |
|||
|
#6
SCR-TXPHM6X1.0X25 8.8 RIE
7518535
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT-6MM X 1 NYLOK-Z
7546703
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SCR-HXFL,M8X1.25X25,ZOD,TAP/R
7519156
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN-CLEVIS, 1/4 X 3/4 -Y
7661843
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN-CLIP,14MM
7661140
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER-SHIFT
5465362
|
$18.99 | ||
|
Unavailable |
|||
|
#13
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
KNOB-GEAR SELECTOR SHIFT
5459024
|
$6.99 | ||
|
Unavailable |
|||
|
#15
SCR-#10X1/2-HI/LO-PN-T25, TRX-M
7519091
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHIFT-LEVER,CAST,BLK
5639200-458
|
$109.99 | ||
|
Unavailable |
|||
|
#17
GROMMET-SHIFTER
5418042
|
$10.99 | ||
|
Unavailable |
|||
|
#18
BUSHING-PEDAL PIVOT
5439274
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
RING-RETAINING, "E",EXT., .500
7710901
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
LATCH-INTERLOCK,CAST
5639653
|
$16.99 | ||
|
Unavailable |
|||
|
#21
RING, RETAINING, E CLIP
7710701
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRG-FLANGE,8X12X8MM
3515150
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
INTERLOCK-SOLENOID
4082120
|
$189.99 | ||
|
Unavailable |
|||
|
#24
WELD-INTERLOCK BRKT,BLK
5274733-329
|
$34.99 | ||
|
Unavailable |
|||
|
#25
GROMMET-SHIFT CABLE
5418041
|
$15.99 | ||
|
Unavailable |
|||
|
#26
NUT-NYLOCK M8X1.25-Y
7547144
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
CABLE-SHIFT
7083104
|
$184.99 | ||
|
Unavailable |
|||
|
#28
CLIP FIR-TREE,DIA6-33MM
7081496
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
SCR-HXFL-M6X1.0X25 8.8 RIE
7518533
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
ASM-LINKAGE,SHIFTER,1500
1029317
|
$54.99 | ||
|
Unavailable |
|||
|
#31
WELD-SHIFTER,BELLCRANK,BLK
1028828-329
|
$39.99 | ||
|
Unavailable |
|||
|
#32
FITTING-LUBRICATION 1/4-28
7080424
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
CABLE-DISC
7082988
|
$164.99 | ||
|
Unavailable |
|||
|
#34
CLIP FIR-TREE,6.5X12.5MM
7082928
|
$3.99 | ||
|
Unavailable |
|||
|
#35
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
