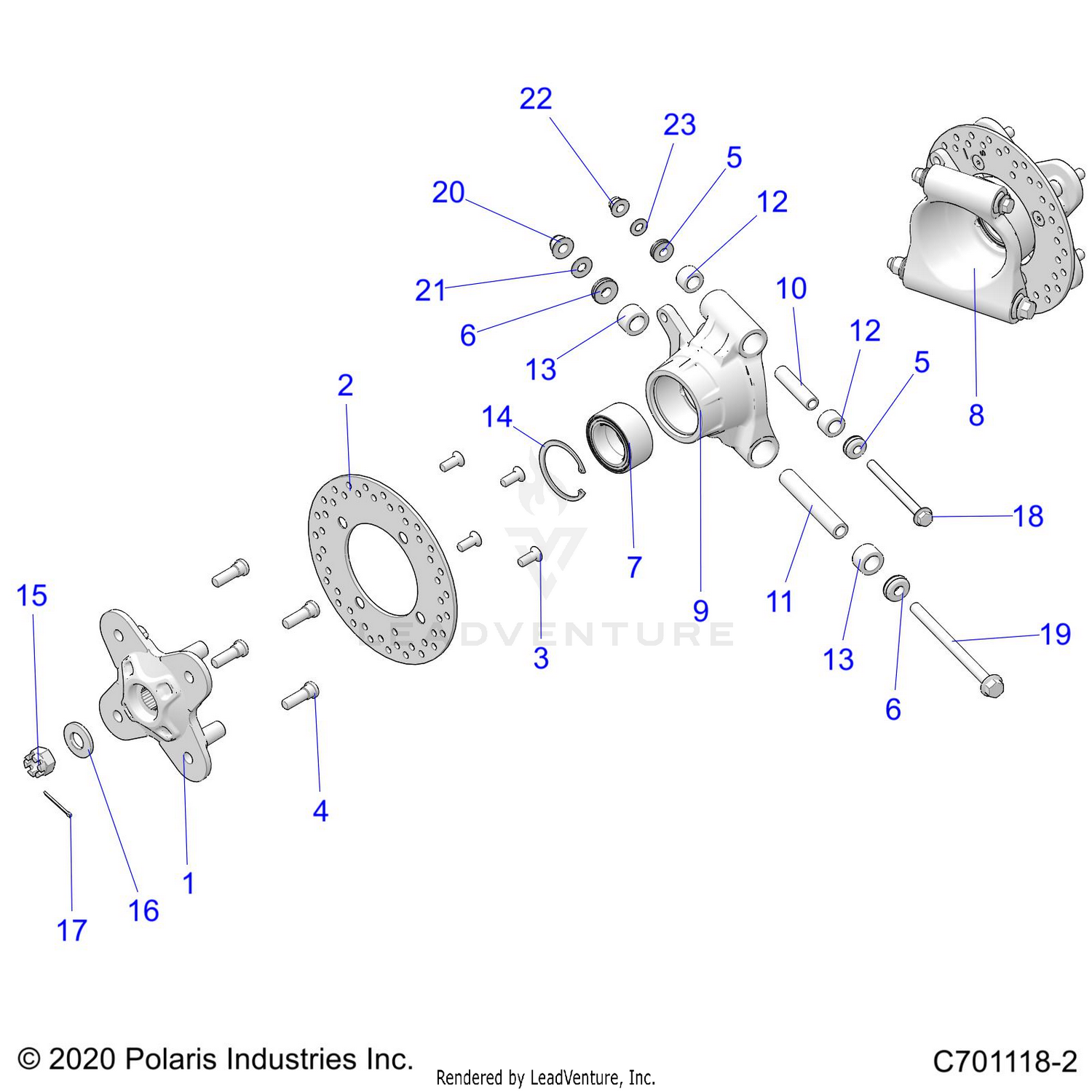

Suspension, Rear Carrier - G23gae99a2 (c701118-2-4) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB-WHEEL,MACH,BLK
5142019-458
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ROTOR,BRAKE
5263266
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCR-M10X1.5X20 8.8 TXCS FL ZOD
7518978
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
STUD-WHEEL,M12-1.5
7519753
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
ASM-PIVOT CAP, SEALED, M10
1543611
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
ASM-PIVOT CAP, SEALED, M12
1543612
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BEARING-BALL,SEALED,44X72X33.1
3514924
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING-WHEEL,HD,44X72X33.1MM
3515090
|
$79.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
CARRIER, BEARING, WHEEL, LH
5139979
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CARRIER, BEARING, WHEEL, RH
5139980
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT-PIVOT, SHORT, M10
5139990
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHAFT-PIVOT, LONG, M12
5139991
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BUSHING-STANDARD, SUSP, M10
5452233
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BUSHING-STANDARD, SUSP, M12
5452271
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
RING-RETAINING,2.875,INTERNAL
7710440
|
$12.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
NUT-M18X1.5,CASTLE,ZINC/YELLOW
7547337
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WSHR-AXLE,M18,42X4.5
7557134
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN-COTTER 1/8X1 1/2-Y
7661404
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SCR-HXFL-M10X1.25X115 10.9 ZOD
7519365
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCR-HXFL-M12X1.5X170 10.9 ZOD
7520294
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT-M12X1.5, FLG, NYLOC-OLIVE D
7547334
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
WASHER-7/16 SAE,STF,THRU-HRD-Y
7556212
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
WASHER-3/8 FW SAE STL THRU-HRD
7556153
|
$2.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
