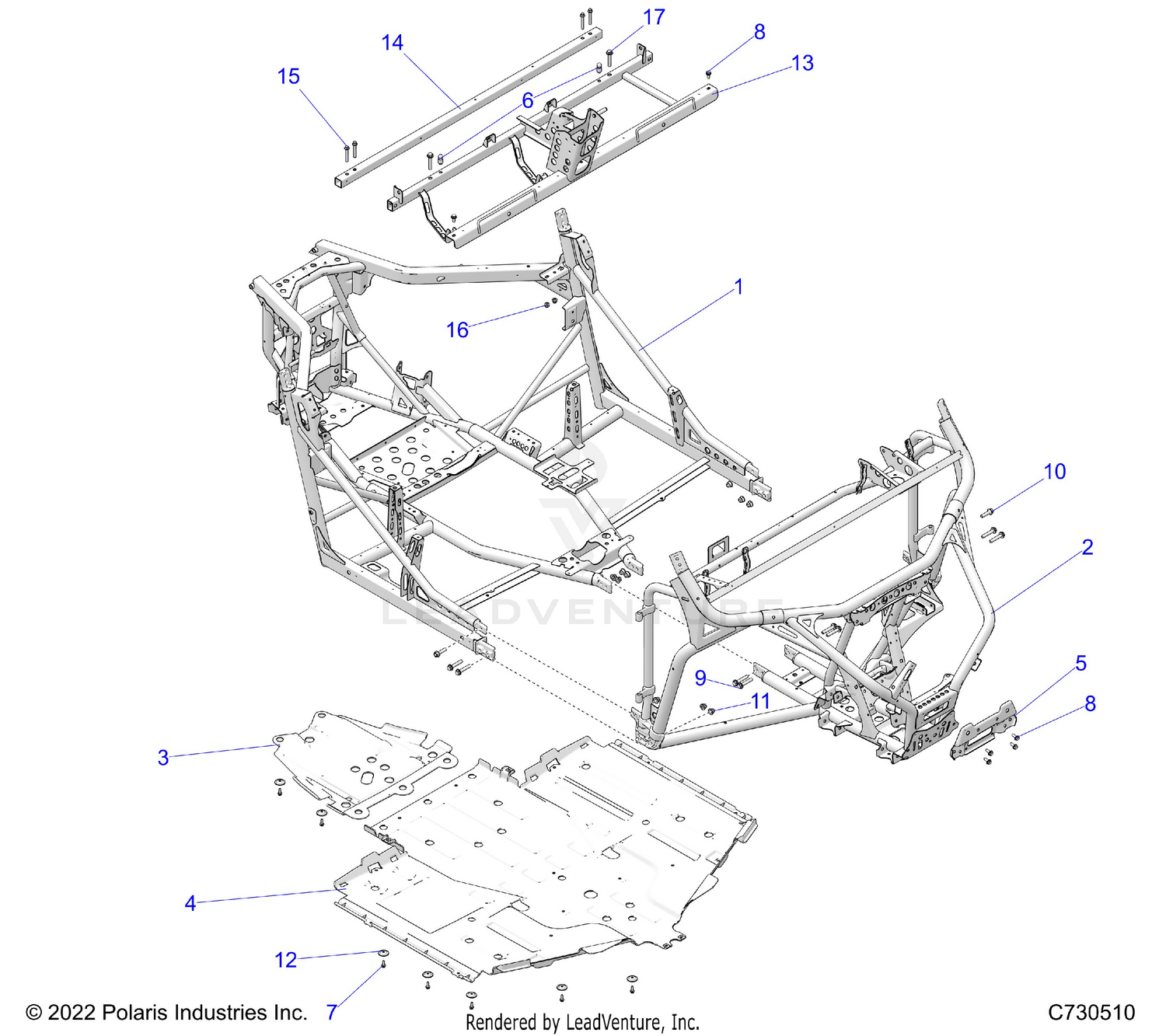

Chassis, Main Frame And Skid Plates - G23gae99a2 (c730510) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WELD-MAIN FRAME,BLK
1024119-458
|
$2,349.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WELD-FRAME,FRONT,2 PC,BLK
1024255-458
|
$2,124.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE-SKID,REAR,BLK
5456433-070
|
$229.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE-SKID,BLK
5452060-070
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRKT-SUSP MNT,FRT,M.BLK
5259449-458
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
LATCH, PLUNGER, SEAT
5632848
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCR-HXFL-M10X1.25X55 10.9 ZOD
7519285
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCR-HXFL-M10X1.25X40 8.8 ZOD
7519332
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
WASHER-SKID PLATE
7556065
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
WELD-SEAT BASE,E-COAT
1021254-329
|
$419.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
ASM-TUBE,TOP FRAME
1029761
|
$114.99 | ||
|
Unavailable |
|||
|
#15
SCR-M8X1.25X55,HX/FL-Y
7517281
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCR-HXFL-M10X1.5X55 8.8 ZY3
7518474
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
