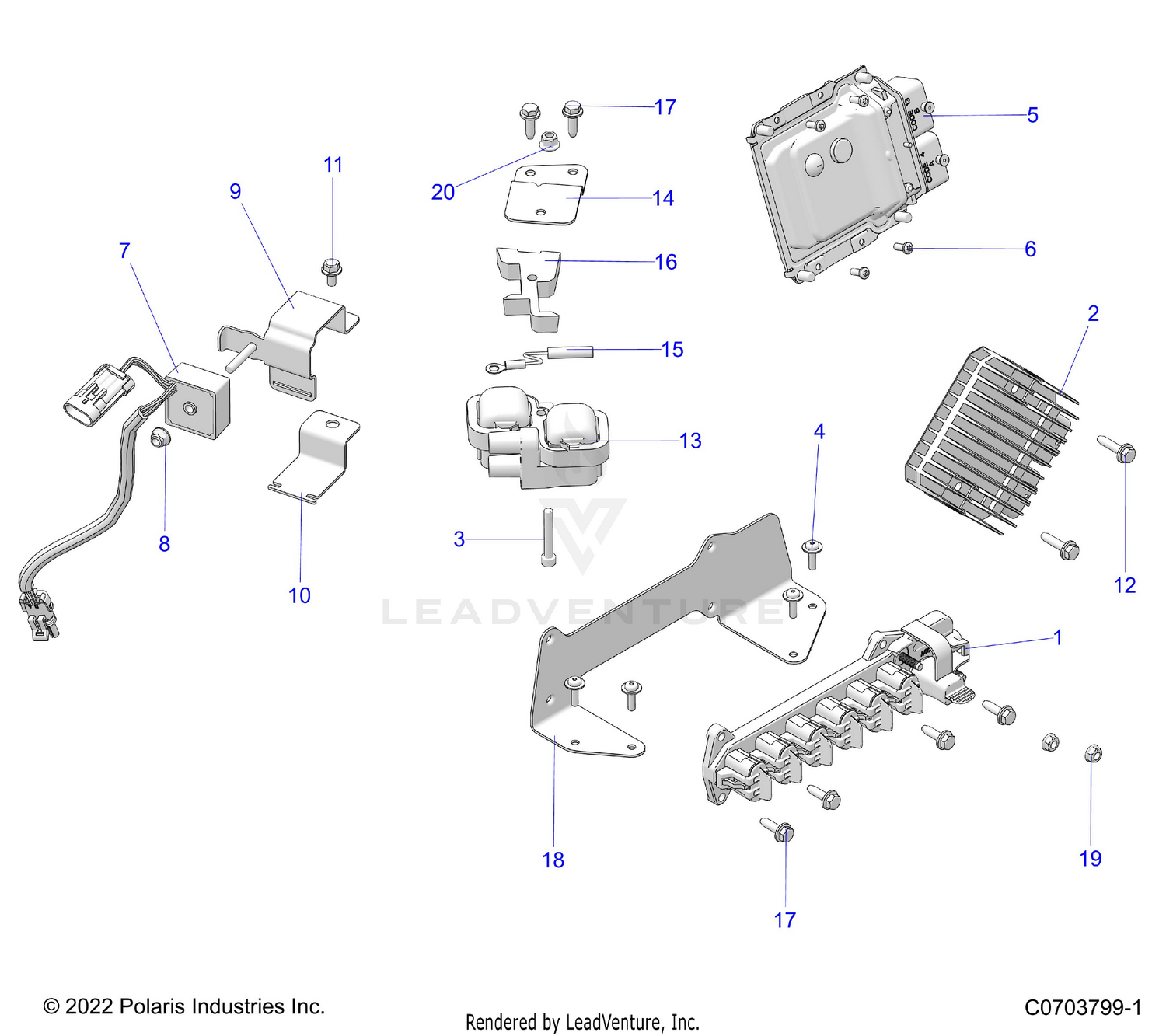

Electrical, Components And Options - G23gae99a2 (c0703799-1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BLOCK-TERMINAL,3 POST,TALL
4016007
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
REGULATOR-3PH,50A,SERIES,HISPD
4016868
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCR-M6X1.0X40,HX/SOC/CP-B
7518780
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCR-10-24X3/4 PH/TX/TRI-SEMS Y
7518196
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
ECM-HARD,ME17,2CYL,250K
4014125
|
$749.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCR-#10X1/2-HI/LO-PN-T25, TRX-M
7519091
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
RELAY, SOLID STATE, 9 AMP, LONG, LD
4012829
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BRKT-RELAY,INNER MOUNT,BLK
5267577-458
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRKT-RELAY,OUTER MOUNT,BLK
5267578-458
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW-HXFL-M6X1.0X12 8.8 ZPB
7517704
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCR-TFHFL-M6X1.0X25,ZOD
7519342
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
Kit, Ignition Coil
4010425
Superseded by 2876049
|
$299.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRKT-COIL MOUNT
5260553
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
JUMPER, COIL GROUND
4014422
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPACER-COIL MOUNT
5436577
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BRKT-MOUNT,PULSE,BLK
5266257-458
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT-HXFLGHD, M6, SERRATED
7547270
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT-M6 FLANGE,NYLOC
7547274
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
