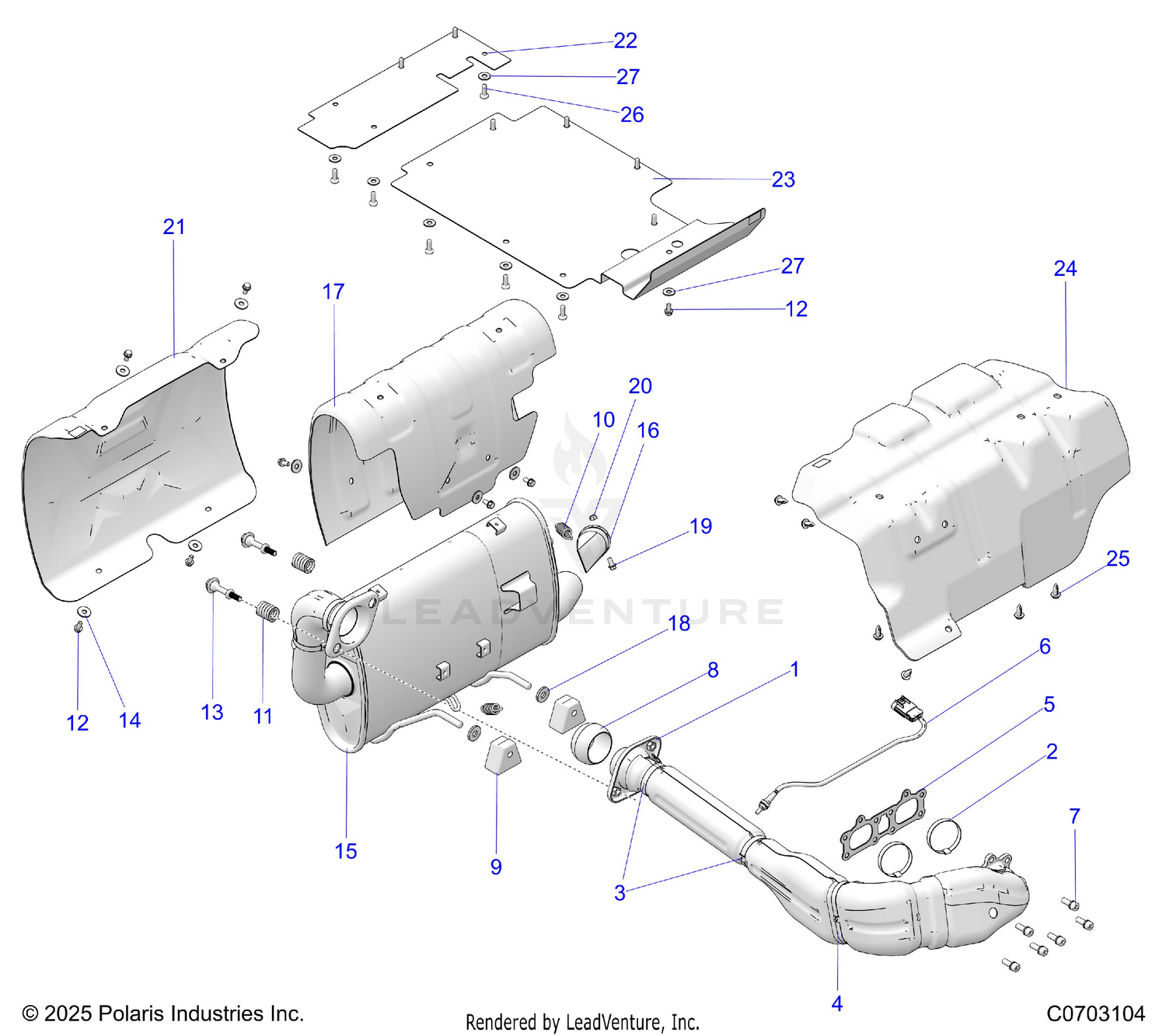

Engine, Exhaust System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-HEADPIPE
1262674
|
$564.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLAMP-HEAT SHIELD,EXHAUST
7081156
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP, HEAT SHIELD,EXHAUST
7081579
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP-HEAT SHIELD,EXHAUST
7081915
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET-EXHAUST SEAL
3610184
|
$59.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
SENSOR, OXYGEN
4016021
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCR-HXFL-M5X0.8X12 4.8 ZPC NYL
7518984
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET-DOUBLE SPHERICAL,2"
3610248
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
MOUNT, ISOLATOR
5450115
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, EXHAUST
7041804
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, SPHERICAL, EXHAUST
7044274
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCR-1/4-20X1/2,TFM HW-M
7518490
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
STUD-SPHERICAL,EXHAUST
7520079
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER-.28 X .81 X .06, ST-M
7555935
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
ASM-SILENCER
1263704
|
$754.99 | ||
|
Unavailable |
|||
|
#16
WELD-SPARK ARRESTOR,AVA875
1263707
|
$69.99 | ||
|
Unavailable |
|||
|
#17
SHIELD-SILENCER
5260630
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER-.406X1.00X.125,FL
7555966
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW-HXFL-M6X1.0X12 10.9 ZPC
7517257
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT-HEX-M6X1.0 8 SPC
7547120
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SHIELD-SILENCER,OUTER,BLK
5260918-458
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIELD-BOX REAR
5263934
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SHIELD-BOX
5266813
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SHIELD-FOIL
5814260
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
RIVET-TUFLOK,.315-.325X.787
7661855
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
SCR-TXPH-#14X3/4 HI/LO CLR
7519290
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER-.312 X .734 X .065-Z
7558302
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
