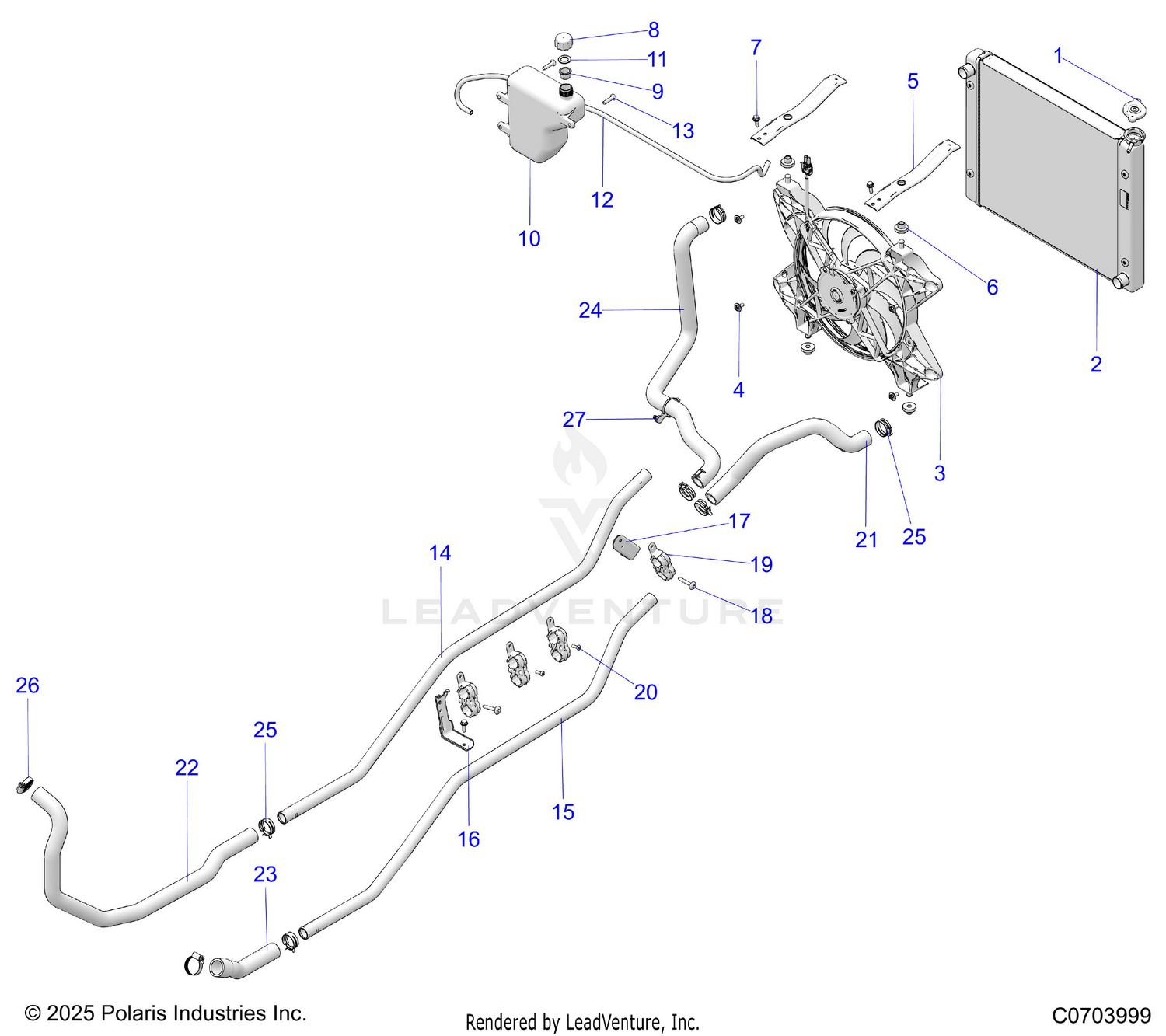

Engine, Cooling System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
ASM., RADIATOR
1240712
|
$734.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
CAP
1240694
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ASM., RADIATOR, CORE
1240745
|
$594.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
FAN-ASSEMBLY
2412447
|
$314.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, M6X15MM
7519585
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRKT-UPR RAD MNT
5276397
|
$39.99 | ||
|
Unavailable |
|||
|
#6
GROMMET-FLANGED,.36X.56X1.06
7052028
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
CAP-OVER FLOW BOTTLE,DRILLED
5430743
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG-CAP 9X(GREEN) FLEX TEMP
5433774
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
TANK-SURGE
5439202
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET-OVERFLOW CAP
5810279
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
FUEL LINE-95 CENTIMETERS
8450003-95
|
$3.69 | ||
|
Unavailable |
|||
|
#13
SCR-#14X1 HI/LO-PH-PN TRX-M
7518158
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
TUBE-COOLANT,1"
5347116
|
|||
|
Unavailable |
|||
|
#15
TUBE-COOLANT,1"
5347117
|
|||
|
Unavailable |
|||
|
#16
BRACKET, COOLANT TUBE, BLACK
5259433-329
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET, COOLANT TUBE, BLACK
5260766-329
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCR-TXTH-M6X1.0X50, 8.8, ZPB
7519001
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BRACKET-COOLANT TUBE
5451221
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW-#10X3/4-HI/LO-PN-T25,TRX-M
7512026
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
HOSE, LOWER, RADIATOR, LONG
5414532
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE, ENGINE OUTLET, REAR
5415451
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE-ENGINE INLET
5415452
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE, UPPER, RADIATOR
5417056
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPRINGBAND-CLAMP 35/12,BLK
7080844
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP-HOSE(WORM DR)25-40MM
7081192
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLIP-FIR TREE,12.5MM OFF,90DEG
7082406
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
