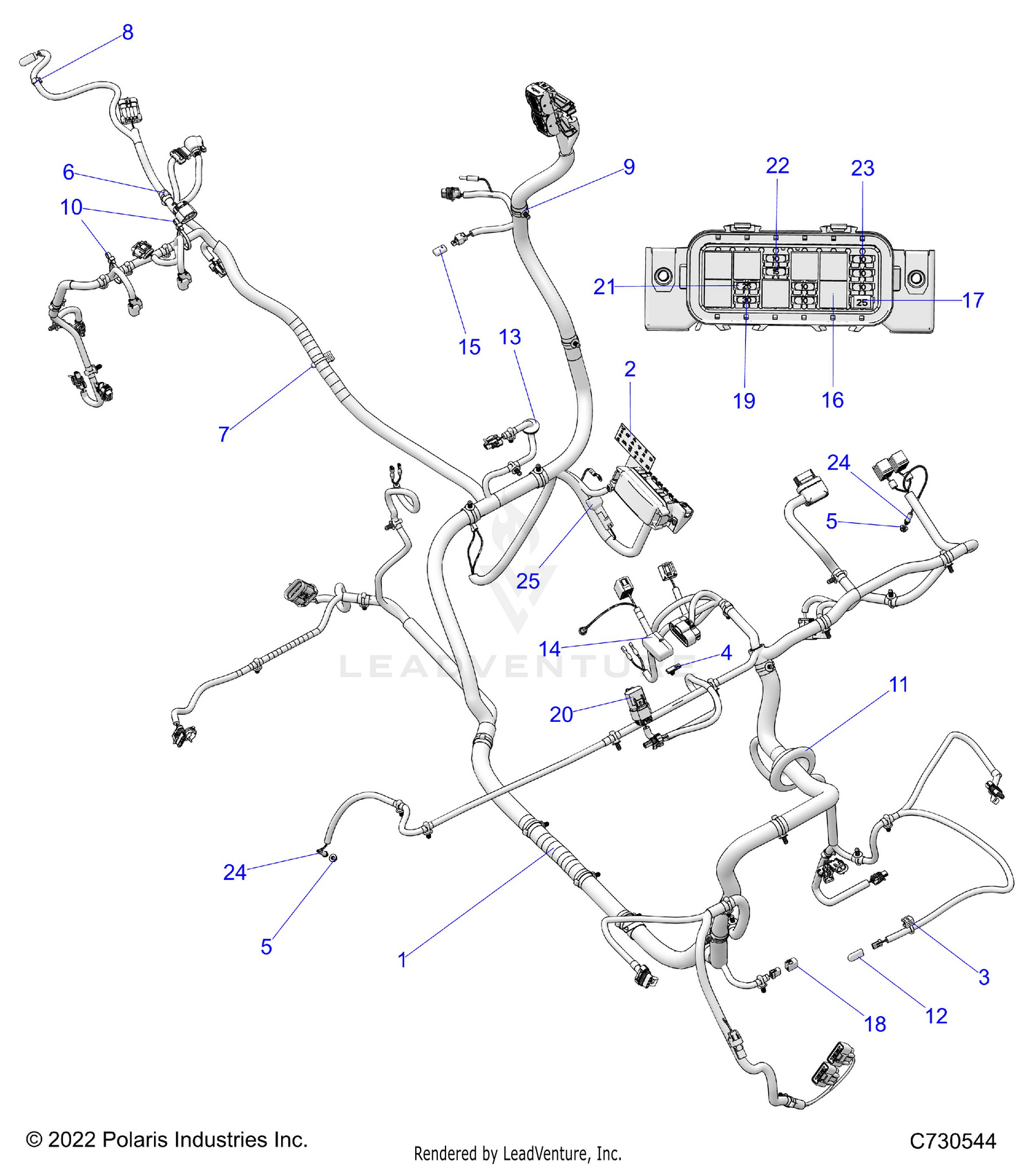

Electrical, Wire Harnesses, Chassis - G23gae99a2 (c730544) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS-CHASSIS
2414814
|
$1,594.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
LABEL, FUSE BOX
7190832
|
|||
|
Available to order. Add to View Price |
|||
|
#3
CLIP-EDGE, 3-6MM THICKNESS
7082404
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLIP-FIR,HOLE6.35MM
7082134
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP - ROUTING, DIN BOX
7082020
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CABLE-TIE,DIA2.5-34MM,FIR-TREE
7082003
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP, EDGE, SIDE, W/STRAP
7081876
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP-EDGE,1-3MM,6-45MM,SERT.
7081808
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP FIR-TREE,DIA6-33MM
7081496
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CABLE-TIE,7-46MM,DUAL-LOOP
7081033
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GROMMET - 65 MM, BLK
5813954
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP - VINYL, 125X375, BLACK
5438230
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET - USB, 3 MM, 22 MM DIA
5415308
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP-EVAP CONNECTOR
4018655
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP EVAP CONNECTOR
4018066
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
RELAY-SPST,12V,20A,EPXY,HFA
4016819
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRAEAKER, CIRCUIT, 25 AMP
4015771
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CONNECTOR-CAP, WINCH SWITCH
4014890
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
FUSE- 30 MINI BLADE 58V (GREEN)
4013561
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER-DIAGNOSTIC,W/CLIP
4012170
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
FUSE-25A,MINI BLADE
4011653
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
FUSE-15AMP,MINI BLADE
4010859
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
FUSE-IGNITION,10 AMP
2434016
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
LED - PANEL MNT, 12V, BLUE
2413217
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
DIODE - 6 AMP, 1/4, 3/16 TERM
2410000
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
