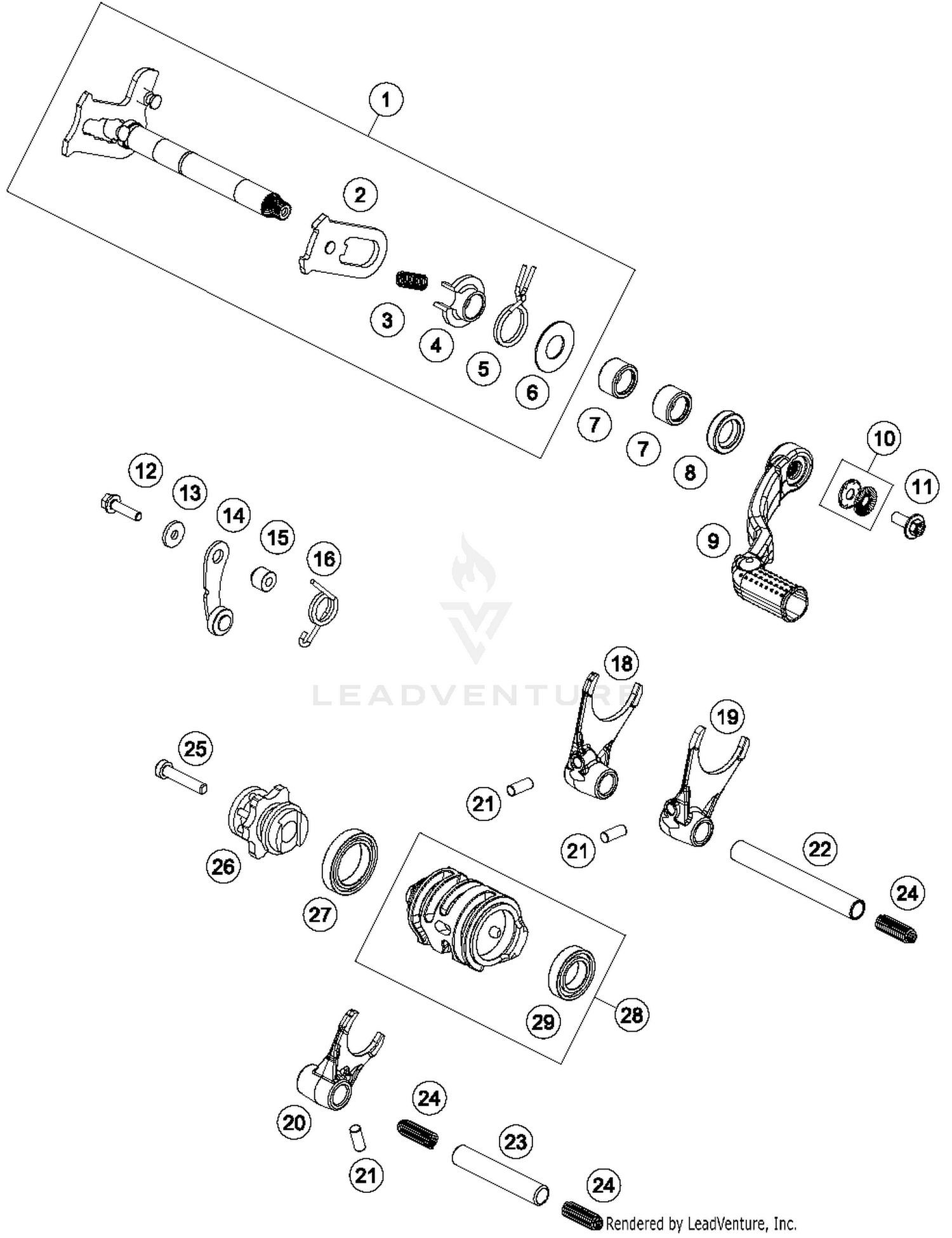

Shifting Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Shift shaft cmpl.
54834005133
Superseded by 50534005044
|
$67.31 | ||
|
Available to order. Add to View Price |
|||
|
#2
SLIDING PLATE
61234008044
|
$12.31 | ||
|
Available to order. Add to View Price |
|||
|
#3
TENSIONING SPRING 0,8MM
56534013100
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING GUIDE
54634020000
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
RETURN SPRING 03
54834014000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
STOP DISK 14X30X1
54634050000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
needle sleeve HK 1412 14x20x12
54632095000
|
$8.24 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
radial shaft seal 14x24x6 B
0760142460
|
$10.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SHIFT LEVER CPL.
50434031000
|
$109.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
PAIR NORDLOCK WASHER M6
50233041500
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
HH collar screw M6x15 TX30
0024060156S
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
HH collar screw M5x20 TX30
0025050206
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
WASHER DIN7349-5X15X2
0349000050
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
LOCATING LEVER CPL. 08
50334024144
|
$17.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
SLEEVE FOR LOCKING LEVER
54634052300
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
LOCKING LEVER SPRING 03
54834023000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SHIFTING FORK 1ST/3RD GEAR
50434003000
|
$66.98 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHIFTING FORK 2ND/4TH GEAR
50434002000
|
$67.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIFTING FORK 5/6 GEAR
50434001000
|
$63.35 | ||
|
Available to order. Add to View Price |
|||
|
#21
NEEDLE ROLLER DIN5402 6X14,8
0402061480
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIFT. RAIL C. SHAFT 250/300
54834020000
|
$16.16 | ||
|
Available to order. Add to View Price |
|||
|
#23
SHIFT. RAIL MAIN SHAFT 250/300
54834019000
|
$15.06 | ||
|
Available to order. Add to View Price |
|||
|
#24
PRESSURE SPRING 0,9MM
58038023200
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
AH SCREW DIN6912 M6X30 8.8
0012060303
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Shift drum locating cpl.
50434015033
Superseded by 50434015100
|
$34.31 | ||
|
Available to order. Add to View Price |
|||
|
#27
BALL BEARING 61805 C3
0625618050
|
$51.69 | ||
|
Available to order. Add to View Price |
|||
|
#28
SHIFTING DRUM CPL.
50434012033
|
$84.58 | ||
|
Available to order. Add to View Price |
|||
|
#29
BALL BEARING 6903 C4
0625069034
|
$23.97 | ||
|
Available to order. Add to View Price |
|||
