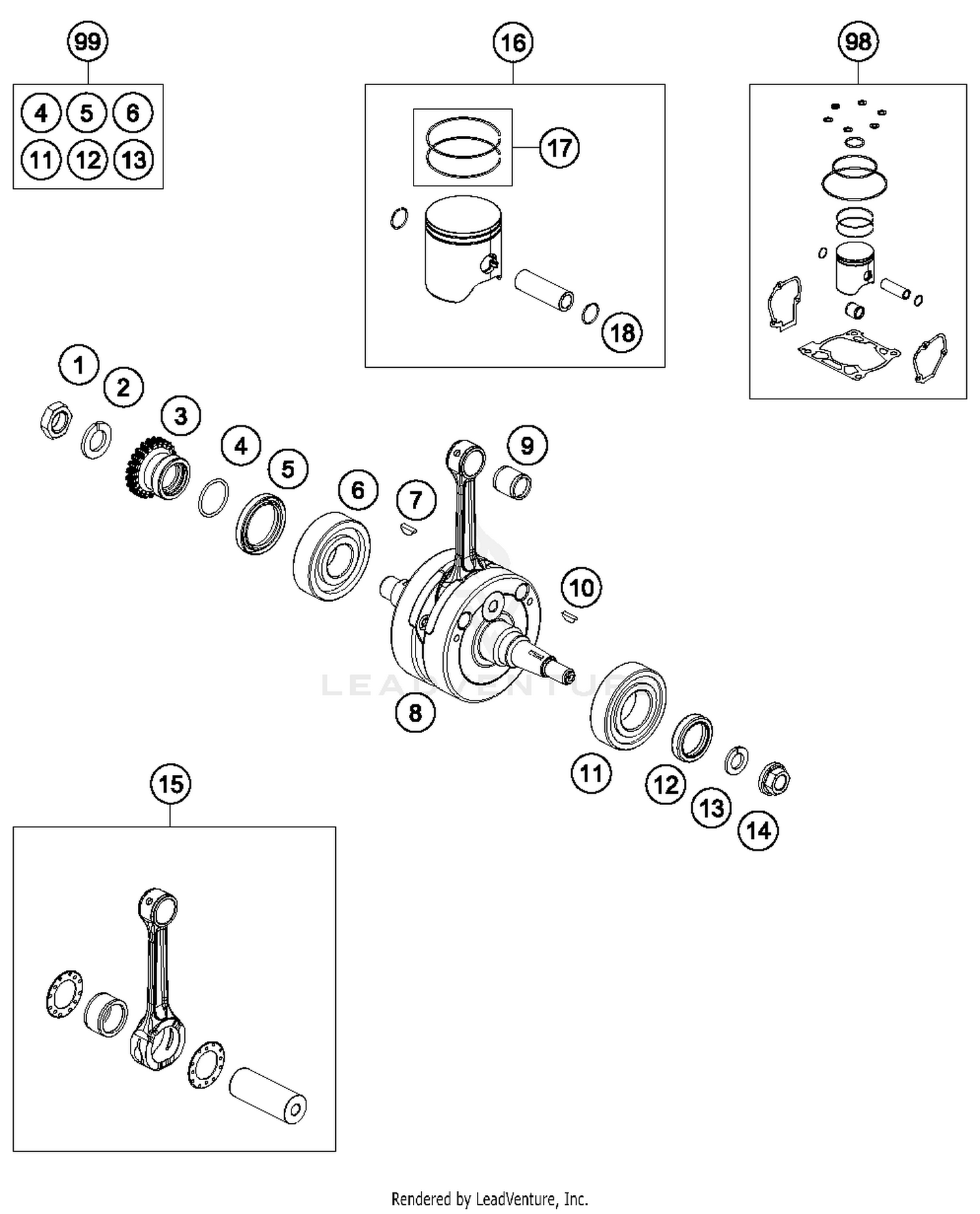

Crankshaft, Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Hex nut M 16x1.5 left
50330029000
Superseded by 0009361600800S
|
$11.76 | ||
|
Available to order. Add to View Price |
|||
|
#2
LOCKING RING VSK 16
50230029016
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
gear primary drive
50432023023
Superseded by 50532023023
|
$127.92 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING 25,00X2,00 NBR 70
0770250020
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Shaft seal ring 32x45x6.5
0760324564
Superseded by 0760324566
|
$14.51 | ||
|
Available to order. Add to View Price |
|||
|
#6
BALL BEARING 6305 JR2 CS36
0625063055
|
$50.81 | ||
|
Available to order. Add to View Price |
|||
|
#7
woodruff key DIN 6888 4x5x13
0888040050
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CRANKSHAFT
50430018000
|
$806.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
NEEDLE BEARING KBK 15X19X20
51030034000
|
$29.47 | ||
|
Available to order. Add to View Price |
|||
|
#10
WOODRUFF KEY DIN6888-3X5X13
0888030050
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
CYL.ROLLER BEAR.NJ206 ET2XCS46
50330082000
|
$97.89 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHAFT SEAL RING 25X35X7 BTSL
0760253570
|
$20.23 | ||
|
Available to order. Add to View Price |
|||
|
#13
LOCKING RING VSK 12
50230029012
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
Collar nut, M12x1, right
49030021000
Superseded by 49030021100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CON-ROD REPAIR KIT
50430015044
|
$351.22 | ||
|
Available to order. Add to View Price |
|||
|
#16
Piston I cpl. 150
51630007000 I
Superseded by 51630007200 I
|
$324.27 | ||
|
Available to order. Add to View Price |
|||
|
#16
Piston II kpl. 150
51630007000 II
Superseded by 51630007200 II
|
$324.27 | ||
|
Available to order. Add to View Price |
|||
|
#17
PISTON RING SET 150
51630032044
|
$101.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WIRE LOCK RING 15X1
50330074500
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#98
PISTON KIT GR.I 150 MX/Enduro
00050000235
Superseded by 51630007210 I
|
$411.72 | ||
|
Available to order. Add to View Price |
|||
|
#98
PISTON KIT GR.II 150 MX/Enduro
00050000236
Superseded by 51630007210 II
|
$406.99 | ||
|
Available to order. Add to View Price |
|||
|
#99
Crankshaft repair kit
00050002300
Superseded by 52330018288
|
$126.27 | ||
|
Available to order. Add to View Price |
|||
