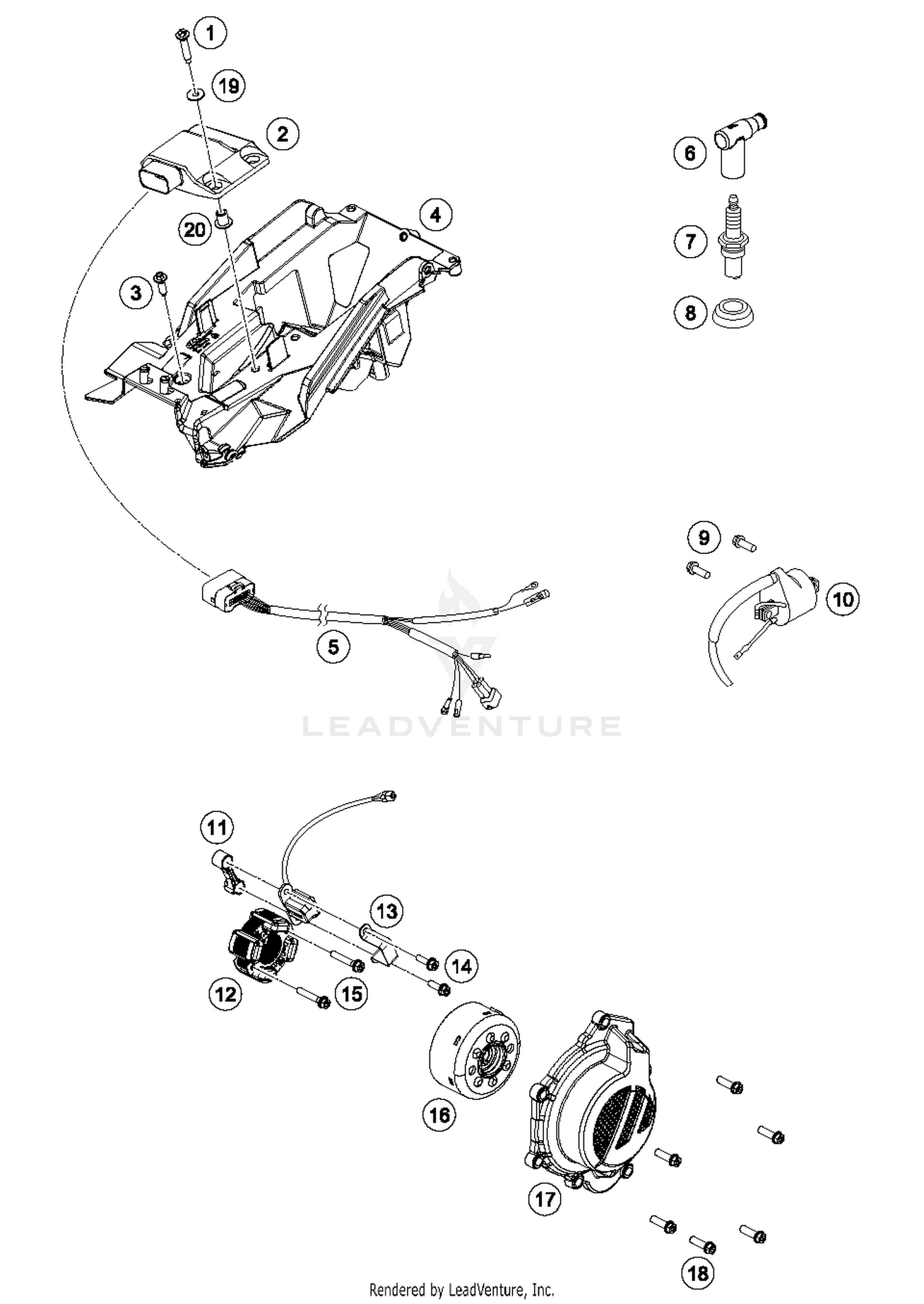

Ignition System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPECIAL SCREW K60X30 WS=6
0017060305
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Electronic box 150 18
51639131000
Superseded by 51639231000
|
$314.70 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW F. PLASTIC K60X20AL SW6
0017060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
BATTERY BOX
79011055000
|
$36.73 | ||
|
Available to order. Add to View Price |
|||
|
#5
WIRING HARNESS FOR CDI 2-ST.07
54839032200
|
$92.39 | ||
|
Available to order. Add to View Price |
|||
|
#6
Spark plug connector
47039090000
Superseded by 47039190000
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPARK PLUG
51539093000
|
$20.67 | ||
|
Available to order. Add to View Price |
|||
|
#8
Sealing boot
50439091000
Superseded by 51739091000
|
$8.68 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR SCREW M6X18 ISA30
0026060186
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
IGNITIONCOIL ''IG5128''
59039006000
|
$77.87 | ||
|
Available to order. Add to View Price |
|||
|
#11
DISTANCE UNIT
50439013000
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#12
STATOR
50439004000
|
$265.09 | ||
|
Available to order. Add to View Price |
|||
|
#13
PICKUP BRACKET
50439004010
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
HH COLLAR SCREW M 5X16 WS=6
0014050163
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
AH SCREW DIN0912-M 5X25
0912050253
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
ROTOR
50439005000
|
$238.36 | ||
|
Available to order. Add to View Price |
|||
|
#17
IGNITION COVER SX
50430002000
|
$40.91 | ||
|
Available to order. Add to View Price |
|||
|
#18
HH collar screw M6x20 TX30
0025060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
washer DIN 9021 A - 5.3
0021050003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
COLLAR BUSHING 6,2X9,2X15X12,5
60308006000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
