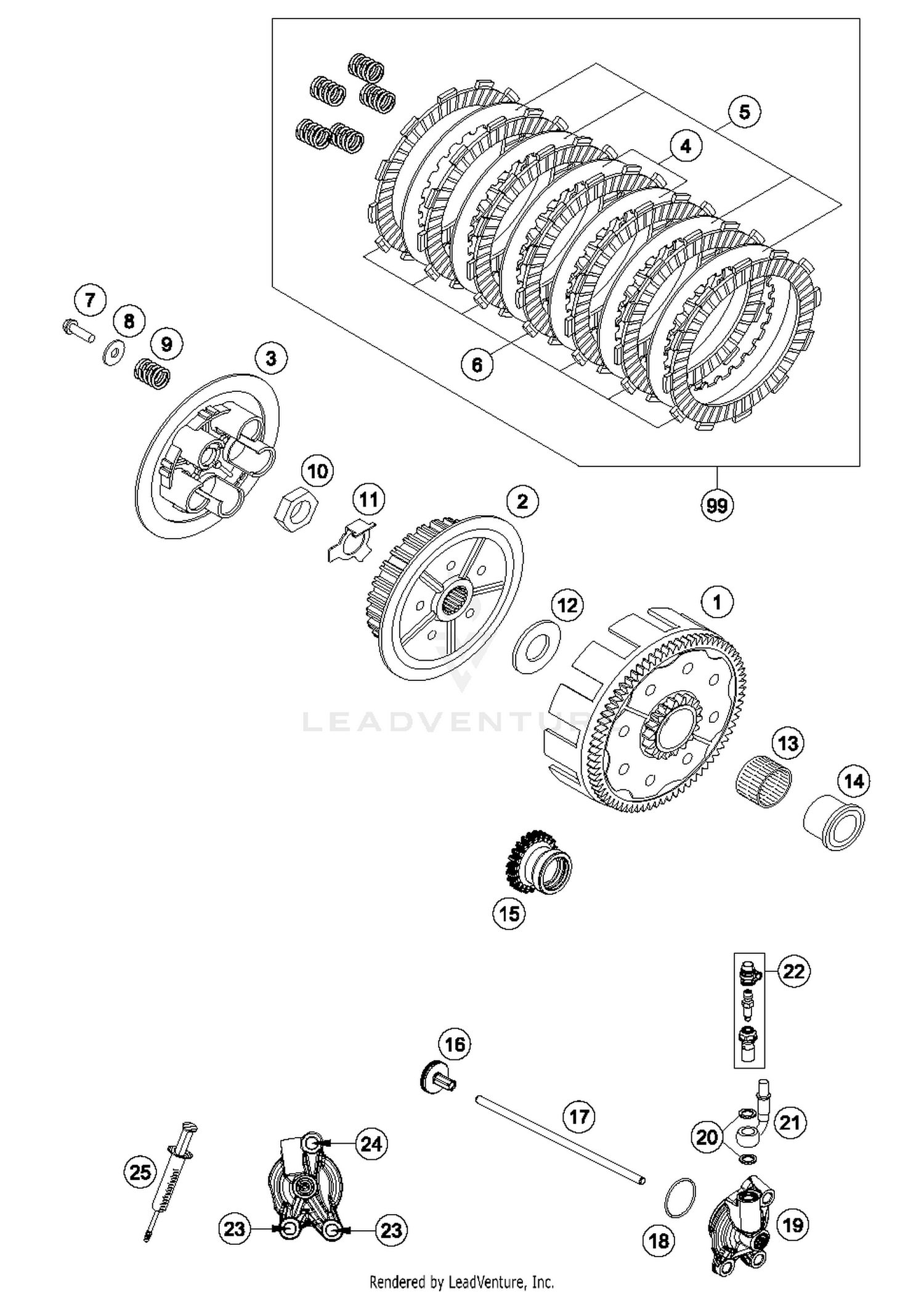

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OUTER CLUTCH HUB '98
50332001044
|
$531.73 | ||
|
Available to order. Add to View Price |
|||
|
#2
INNER CLUTCH HUB 125/200'98
50332002000
|
$135.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
PRESSURE PLATE 125/200'98
50332003000
|
$102.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
INTERMEDI. DISC STEEL 1,5MM'98
50332010100
|
$17.37 | ||
|
Available to order. Add to View Price |
|||
|
#5
INTERMEDIATE DISC 1,5MM
50332010400
|
$24.74 | ||
|
Available to order. Add to View Price |
|||
|
#6
LINING DISC 3,0MM 05
77032011000
|
$42.67 | ||
|
Available to order. Add to View Price |
|||
|
#7
HH collar screw M6x20 TX30
0025060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
WASHER 6,2X18X2
50232050000
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CLUTCH SPRING
77032005000
Superseded by 77032005100
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HEXAGON NUT DIN0936-M18X1,5 R.
0936181505
|
$9.12 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SHEET METAL LOCK 1,5MM '98
50332018000
|
$7.36 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
STOP DISK 20X39,6X3 '98
50332020000
|
$19.24 | ||
|
Available to order. Add to View Price |
|||
|
#13
NEEDLE BEARING K26X30X22ZW.KSE
56532095000
|
$28.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
INNER RING 20X26X25,9 '98
50332013000
|
$35.52 | ||
|
Available to order. Add to View Price |
|||
|
#15
gear primary drive
50432023023
Superseded by 50532023023
|
$127.92 | ||
|
Available to order. Add to View Price |
|||
|
#16
PRESSURE PIECE CPL. 08
78032057044
|
$30.68 | ||
|
Available to order. Add to View Price |
|||
|
#17
PUSH ROD
50432054000
|
$19.57 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING 30,00X1,50 NBR 70
0770300015
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
OUTPUT CYLINDER CPL.
79232061044
|
$220.76 | ||
|
Available to order. Add to View Price |
|||
|
#20
CU-SEAL RING 8 X 16 X 1
0603080161
Superseded by 56530080000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
CLUTCH PIPE
79232063000
|
$132.21 | ||
|
Available to order. Add to View Price |
|||
|
#22
BLEEDER SCREW CPL.
79032064000
|
$35.74 | ||
|
Available to order. Add to View Price |
|||
|
#23
HH collar screw M6x16 TX30
0025060166
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
HH collar screw M6x25 TX30
0025060256
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
VENT INJEKTION HYDR. CLUTCH
50329050000
|
$63.24 | ||
|
Available to order. Add to View Price |
|||
|
#99
CLUTCH KIT 125SX 17
50432011010
|
$343.63 | ||
|
Available to order. Add to View Price |
|||
