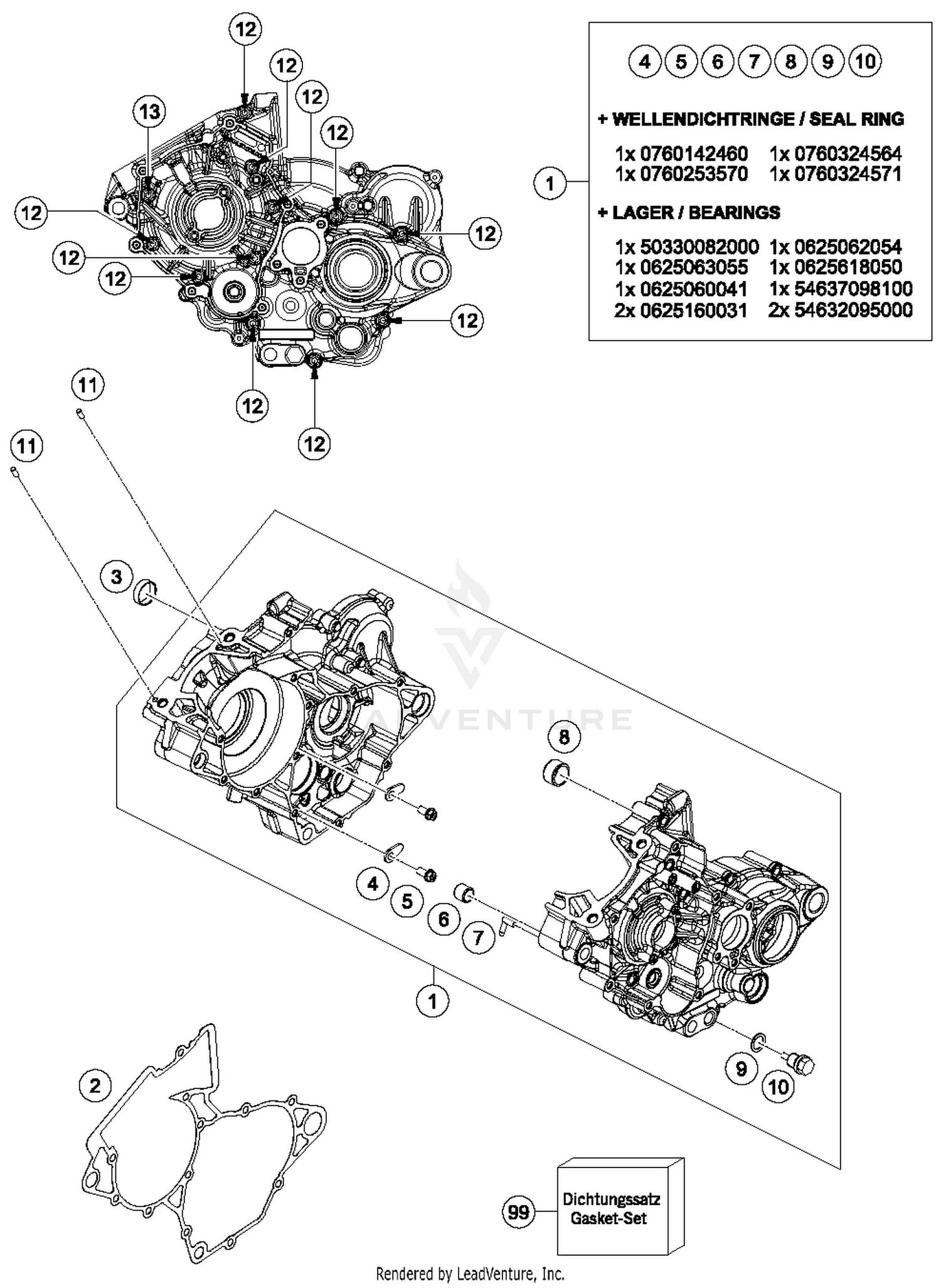

Engine Case Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Engine case cmpl.
50430000033
Superseded by 50430000244
|
$872.62 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET ENGINE CASE
50430039000
|
$30.79 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSHING IDLER GEAR
50433024050
|
$30.79 | ||
|
Available to order. Add to View Price |
|||
|
#4
RETAINING PLATE
54634049000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
HH collar screw M6x12 TX30
0025060126
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
DOWEL BUSHING 13,8X11X12
54630027000
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
ANGLE PIECE 50CCM LC 2001
45130022000
|
$6.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Dowel, 21x12
54830027000
Superseded by 54830027100
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
CU-SEAL RING DIN7603-12X18X1,5
58038022000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
oildrain plug with magnet
58030021000
Superseded by 58030021100
|
$13.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
NEEDLE ROL.DIN5402 NRB 4X9,8
0402040980
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
HH collar screw M6x50 TX30
0025060506
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HH collar screw M6x60 TX30
0025060606
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#99
Seal Kit Engine 125/150
50430099000
Superseded by 50430099002
|
$332.08 | ||
|
Available to order. Add to View Price |
|||
